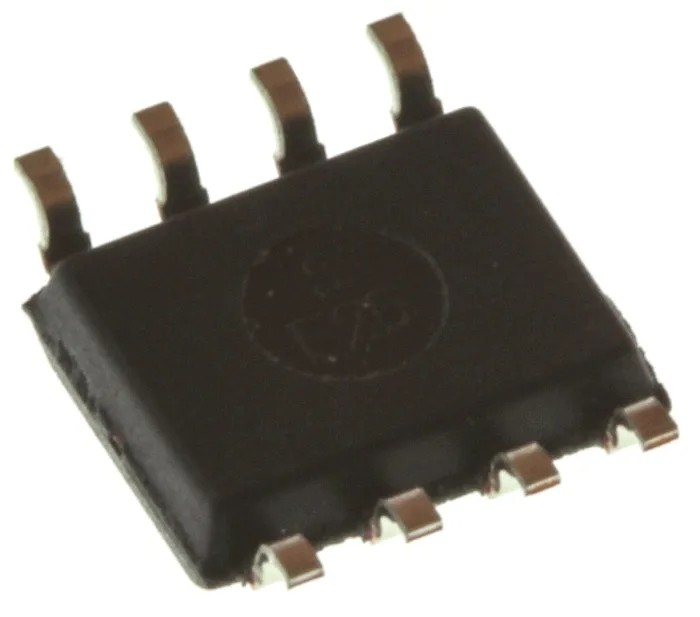

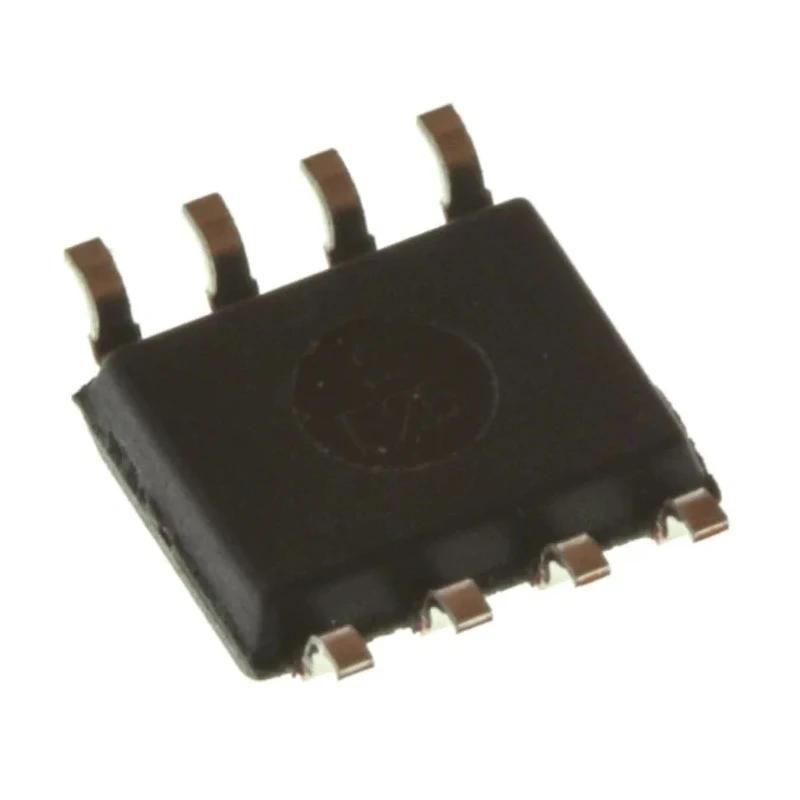

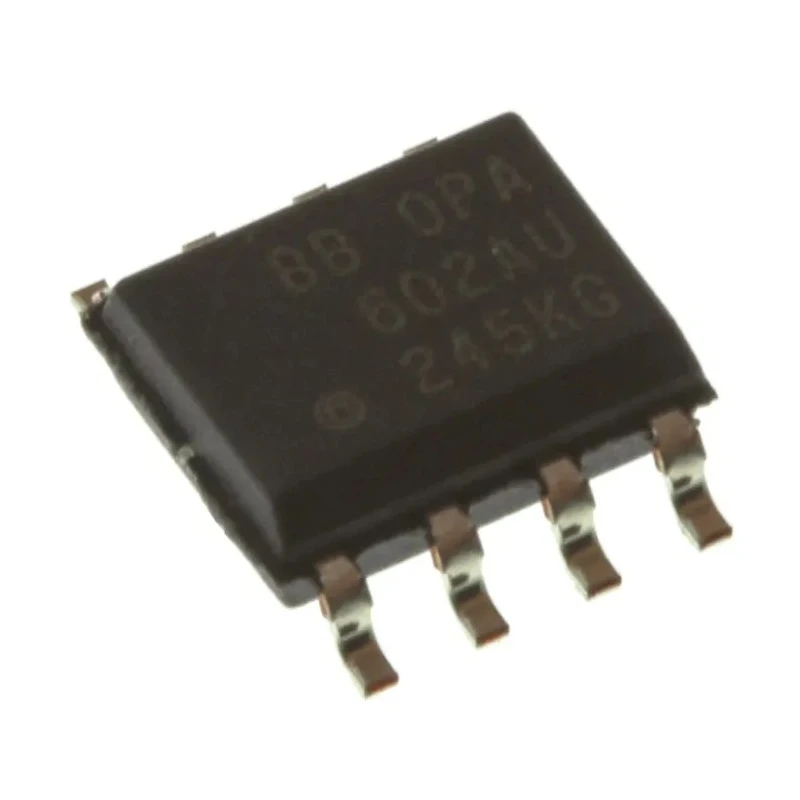

Texas Instruments Operational Amplifier OPA602AU, 6.5 MHz Gain Bandwidth, 8-Pin SOIC, 18V Maximum Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA602AU |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA602 |
| Output Current | 20mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 6.5MHz |
| Input Bias Current | ±500 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 35V/μs |
Key Features
- Features a 6.5 MHz gain bandwidth product for fast and accurate signal processing.
- 8-pin SOIC surface-mount package for easy integration into modern circuits.
- Operates with a supply voltage range from 5V to 18V, suitable for flexible designs.
- JFET input stage with ultra-low input bias current enables high-accuracy measurements.
- Provides a slew rate of 35V/μs, ensuring rapid signal response.
- Recommended for use in precision instrumentation, electrometer amplifiers, and photo detector applications.
- Maximum output current rating of 20 mA, supporting various load conditions.
- RoHS compliant for environmentally responsible manufacturing.
Product Description
Texas Instruments OPA602AU is an advanced FET-input operational amplifier engineered for high-speed and precision signal processing. Designed with a dielectrically-isolated FET input stage, this device dramatically reduces input bias currents, ideal for sensitive applications where low leakage and high-accuracy are critical.
The amplifier features a 6.5 MHz gain bandwidth product combined with a rapid 35V/μs slew rate, delivering reliable and efficient amplification of analog signals. Its 8-pin SOIC surface-mount package ensures compatibility with automated production processes and compact circuit layouts.
Operating across a supply voltage range of 5V to 18V, this component supports flexible design requirements for modern instrumentation and data acquisition systems. The low input bias current (±500 pA) enables the OPA602AU to serve in environments requiring ultra-low current measurement, such as electrometers and high-precision photo detector amplifiers.
With an input offset voltage of only 2 mV and maximum output current of 20 mA, the OPA602AU excels when used in medical equipment, high-performance industrial systems, precision scientific instruments, and advanced measurement devices. Its robust SOIC package measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, making it suitable for dense PCB layouts.
The OPA602AU is certified RoHS compliant, ensuring it meets environmental safety standards. Typical applications include high-accuracy data acquisition, laboratory instrumentation, precision analog signal conditioning, and commercial electronics.
6.5 MHz gain bandwidth for rapid signal amplification. Surface-mount SOIC with 8-pin layout for efficient assembly. Supply voltage flexibility from 5V to 18V for broad applicability. FET input for ultra-low bias and offset currents.
35V/μs slew rate delivers fast responsiveness. 20 mA output current supports diverse circuit loads. Suitable for instrumentation, medical, laboratory, and commercial uses. Compact physical dimension for high-density PCB designs.
Explore Texas Instruments operational amplifiers and related products in the 'Operational Amplifier' category for more high-performance solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA602AU features a gain bandwidth product of 6.5 MHz, which allows for fast and accurate signal processing.
It operates within a supply voltage range of 5V to 18V, providing flexibility for various design applications.
This model has a maximum output current rating of 20 mA, which supports various load conditions.
The input bias current is ±500 pA, making it suitable for high-accuracy measurements.
The dimensions of this operational amplifier are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The OPA602AU has a slew rate of 35V/μs, ensuring rapid signal response.
It is packaged in an 8-pin SOIC surface-mount configuration, facilitating easy integration into modern circuits.
The input offset voltage is only 2 mV, which contributes to its high accuracy in sensitive applications.
This operational amplifier operates within a temperature range of -25°C to 85°C.
Yes, the OPA602AU is RoHS compliant, ensuring it meets environmental safety standards.
It is recommended for use in precision instrumentation, electrometer amplifiers, and photo detector applications.
This operational amplifier features a single channel configuration.
