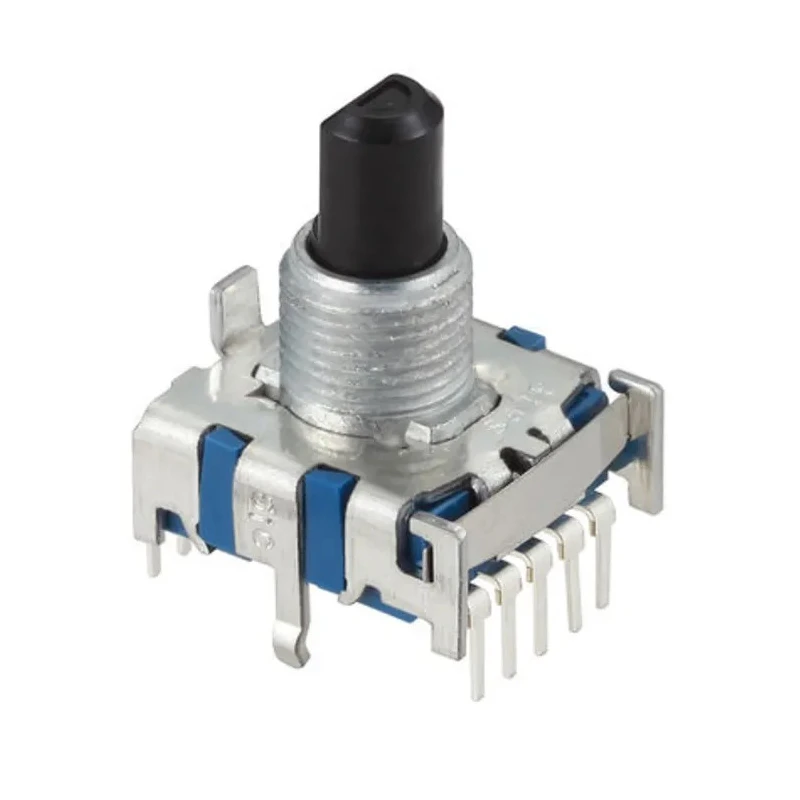

Alps Alpine SRBV 7 Position SP7T Rotary Switch 300mA 100V AC 16V DC PCB Mount Terminal JP
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 5.4mm |
| Brand | Alps Alpine |
| Height | 16.2mm |
| Model | SP7T |
| Depth | 18.5mm |
| Width | 18.5mm |
| Mount Type | PCB |
| Series | SRBV |
| Contact Configuration | SP7T |
| Number of Positions | 7 |
| Minimum Operating Temperature | 85°C |
| Terminal type | Terminal |
| Maximum dc Voltage | 16V dc |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Operation | 8-Position Low-Profile Vertical Type |
| Actuator Colour | Grey |
| Switch Contact Current | 300mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 100V ac |
| Angle of Throw | 30 ° |
Key Features
- The switch operates with a maximum contact current of 300mA providing reliable electrical performance.
- Supports a maximum AC voltage of 100V and DC voltage of 16V for versatile applications.
- Features an 8-position low-profile vertical type switch operation with 30° angle of throw.
- Constructed to withstand mechanical life up to 10,000 cycles ensuring durability.
- Actuator color is grey, designed with non-shorting changeover timing for safe switching.
- Mount type is PCB with terminal connections for straightforward circuit assembly.
- RoHS compliant and manufactured in Japan assuring quality and environmental standards.
Product Description
Alps Alpine SP7T Rotary Switch from the SRBV series is a high-quality 7-position rotary switch designed for electronic and electrical applications requiring reliable switching performance. Rated at 300mA contact current, it supports maximum AC voltage of 100V and DC voltage of 16V. Its 8-position low-profile vertical operation with a 30° angle of throw ensures precise and effective switching.
The rotary switch features a compact design with 18.5mm width and depth, along with a 16.2mm height and 5.4mm diameter actuator, making it suitable for PCB mounting. The grey actuator provides clear visual identification. Mechanical life expectancy up to 10,000 cycles guarantees long-lasting use in demanding environments.
Additionally, this terminal-type switch is RoHS compliant, ensuring adherence to environmental regulations. Manufactured in Japan, it maintains high standards of manufacturing quality.
The switch has a non-shorting changeover timing with one wafer and rotational torque of 30±3° for smooth operation. Its durability and specified operating temperature range ensure stable performance in diverse industrial and automation systems.
Ideal for incorporation into electric devices, automation controls, and PCB assemblies within industrial and commercial electronic equipment.
This Alps Alpine Rotary Switch offers precise switching capabilities combined with longevity and compliance, suitable for professional industrial electronics and electrical system designs. Explore more advanced switches and components in the EnvMart catalog for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch operates with a maximum contact current of 300mA, providing reliable electrical performance.
It supports a maximum AC voltage of 100V and a maximum DC voltage of 16V, making it suitable for versatile applications.
This model features 7 positions, allowing for multiple switching options in a compact design.
The angle of throw is 30°, which ensures precise and effective switching operation.
The mechanical life expectancy of this switch is up to 10,000 cycles, ensuring longevity in use.
The switch has a width and depth of 18.5mm, a height of 16.2mm, and an actuator diameter of 5.4mm.
It is designed for PCB mounting with terminal connections, facilitating straightforward circuit assembly.
The actuator is grey, providing clear visual identification during operation.
Yes, it is RoHS compliant, ensuring adherence to environmental regulations.
It features an 8-position low-profile vertical type switch operation for effective control.
The minimum operating temperature for this switch is 85°C, suitable for various industrial applications.
The contact configuration is SP7T, which allows for single-pole, seven-throw switching.
