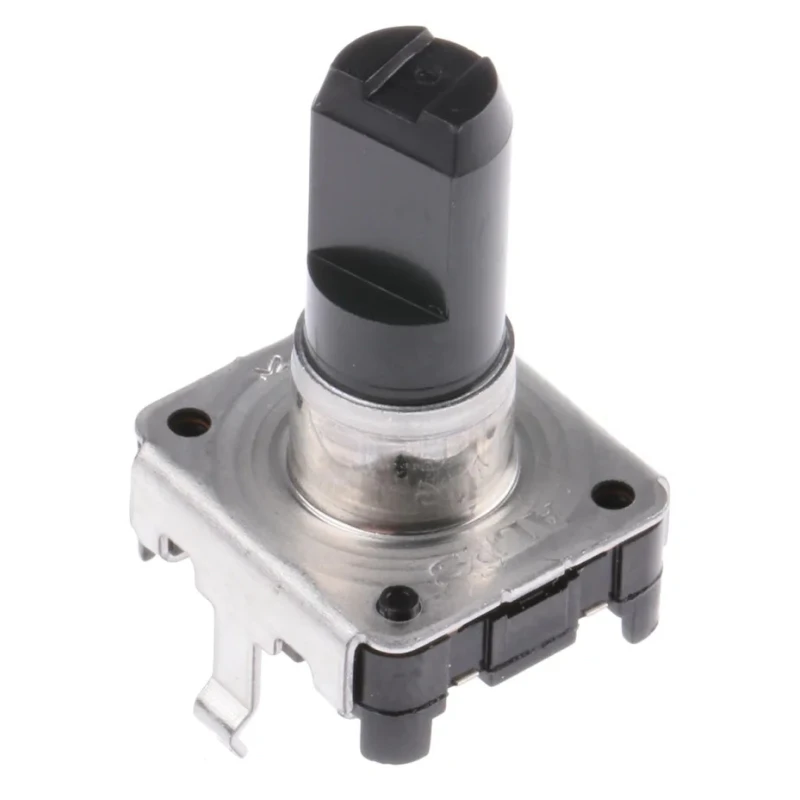

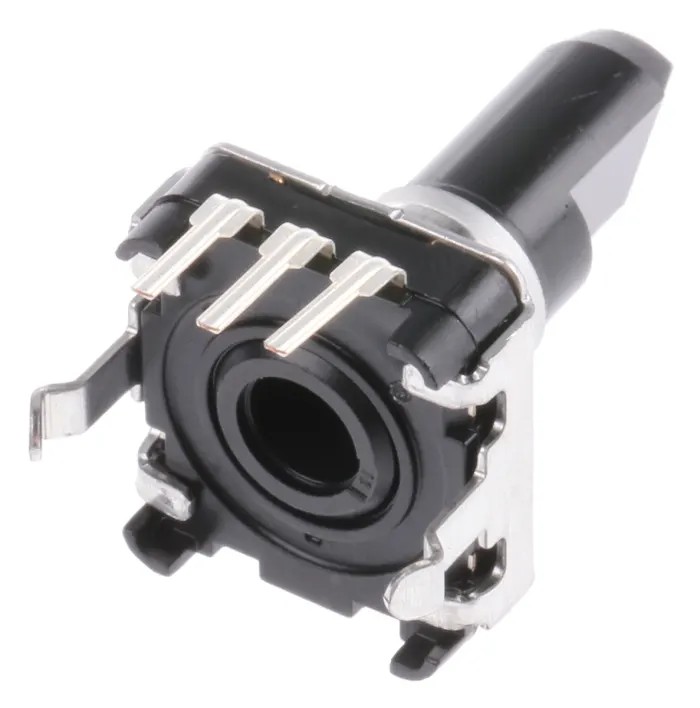

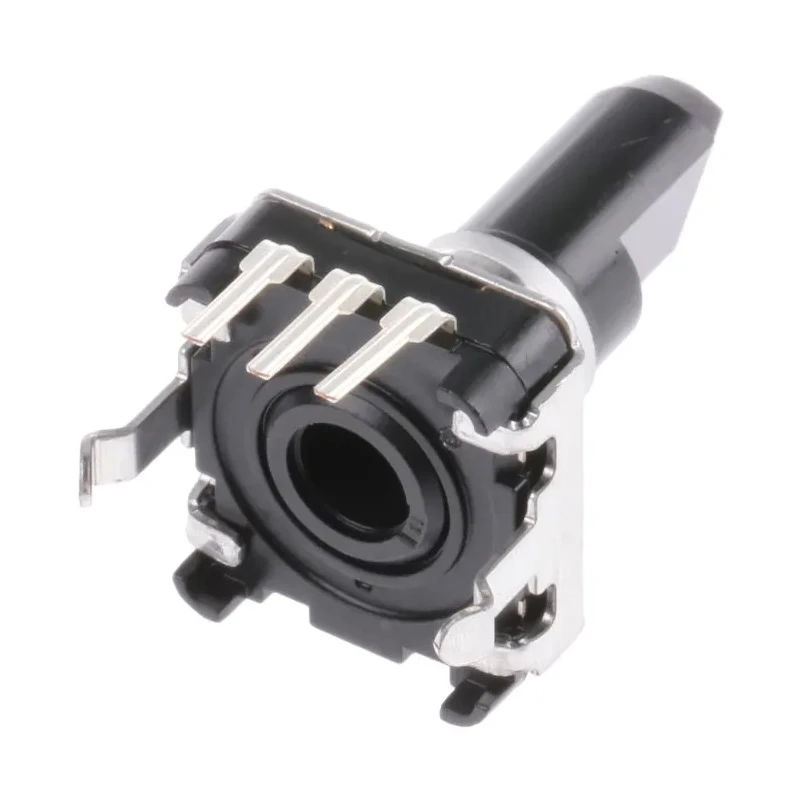

Alps Alpine 24 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft Through Hole EC12E24204A8
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | EC12E24204A8 |
| Mount Type | Through Hole |
| Current Rating | 0.5mA |
| Series | EC12 |
| Shaft Diameter | 6mm |
| Shaft Length | 20mm |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Shaft Style | Flat |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Index Output | Not Indexed |
Key Features
- This mechanical encoder produces digital square wave output signals for precise incremental shaft position detection.
- It features a 6 mm diameter flat shaft with a 20 mm shaft length ensuring compatibility in various mechanical assemblies.
- The encoder is designed for through hole mount and surface mount termination, enabling secure PCB integration.
- It provides a non-indexed output suitable for continuous rotary measurement without a zero reference pulse.
- Operating current rating is 0.5 mA with RoHS compliance for environmental safety.
- Built to EC12 series standards, made in Japan with trusted quality and durability.
- Ideal for industrial applications requiring reliable shaft rotation feedback in control systems and instrumentation.
Product Description
Alps Alpine EC12E24204A8 mechanical rotary encoder is an incremental encoder with 24 pulses per revolution, featuring a 6 mm flat shaft and through hole mount suitable for electrical and industrial sensor applications.
This rotary encoder generates precise digital square wave signals to detect shaft positions incrementally. The 6 mm flat shaft design ensures stable mechanical coupling and ease of integration. Its shaft length of 20 mm provides sufficient extension for various installation scenarios.
Mounting is through hole with surface mount termination style, enabling reliable installation on printed circuit boards. This encoder does not provide index output, so it is ideal for continuous rotational position measurements without reference pulses.
The device complies with RoHS environmental standards and operates at a current rating of 0.5 mA. It belongs to the EC12 product series and is manufactured in Japan, ensuring high manufacturing quality and reliability for use in industrial automation, robotics, instrumentation, and process control.
This mechanical encoder produces digital square wave output signals for incremental shaft position detection. It features a 6 mm diameter flat shaft with a length of 20 mm for mechanical coupling. Through hole mount type with surface mount termination provides easy PCB integration.
Non-indexed output supports continuous rotary measurement without zero reference pulse. Low current rating of 0.5 mA promotes energy-efficient operation. RoHS compliant for environmental safety and industrial use. EC12 series product designed and manufactured in Japan for durability and reliability.
This encoder is suitable for precision industrial shaft position feedback in manufacturing automation, HV electrical equipment, and instrumentation applications. Explore more sensors and Mechanical Rotary Encoders in the Electronics & Electricals category at EnvMart for reliable industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a pulse count of 24 pulses per revolution (ppr).
It features a shaft diameter of 6 mm and a shaft length of 20 mm.
The encoder produces a digital square wave output signal for incremental position detection.
The operating current rating is 0.5 mA.
It is designed for through hole mounting with surface mount termination style, allowing for secure PCB integration.
No, this model does not provide an index output, making it suitable for continuous rotary measurement without a zero reference pulse.
This encoder complies with RoHS environmental standards.
It is manufactured in Japan.
This model belongs to the EC12 series of mechanical rotary encoders.
It is suitable for industrial applications requiring reliable shaft rotation feedback in control systems and instrumentation.
The shaft style is flat, which ensures stable mechanical coupling.
This model provides incremental encoder readings.
