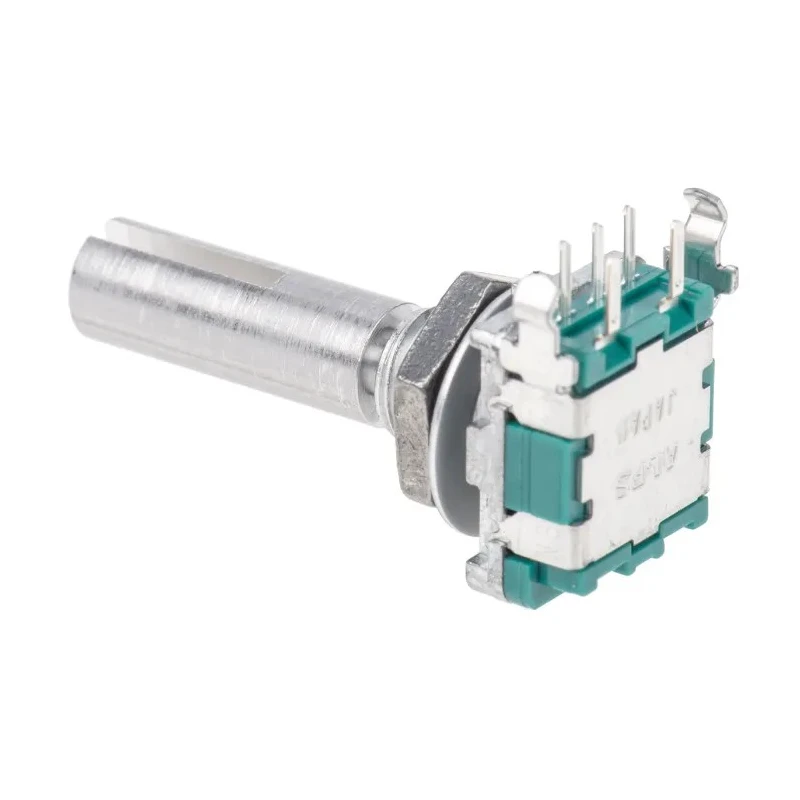

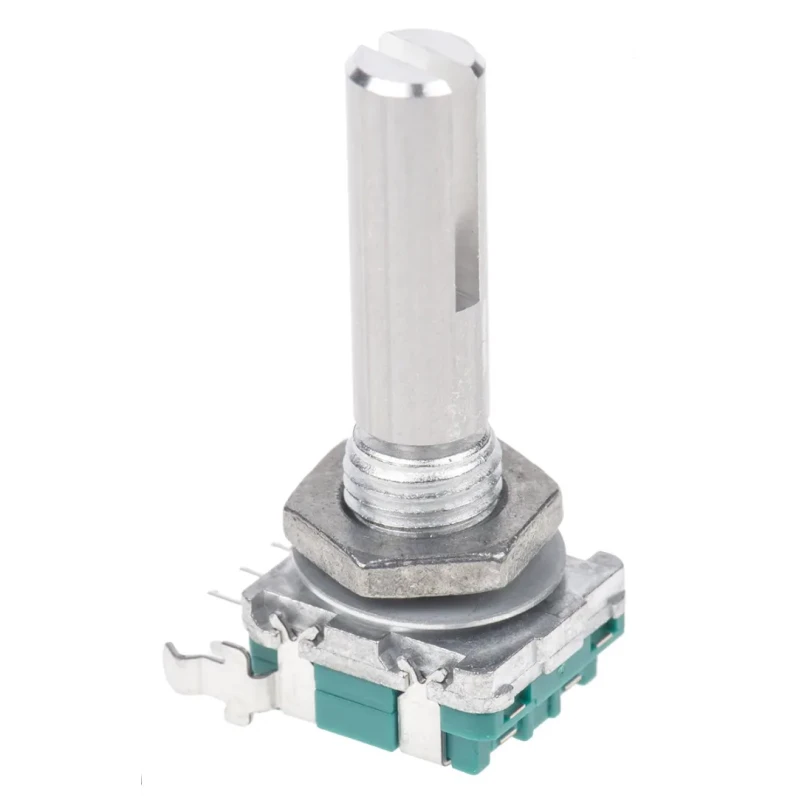

Alps Alpine 15 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Slot Shaft, Quadrature, Through Hole EC11B152420G
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | EC11B152420G |
| Mount Type | Through Hole |
| Series | EC11 |
| Shaft Diameter | 6mm |
| Shaft Length | 25mm |
| Pulses per Revolution | 15ppr |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Shaft Style | Slot |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Index Output | Quadrature |
Key Features
- Features a 6 mm slot shaft designed for reliable incremental pulse generation.
- Provides 15 pulses per revolution with a digital square wave encoder signal.
- Equipped with through hole mount type suited for PCB and panel mounting.
- Index output is quadrature, supporting precise directional rotation detection.
- Includes a shaft length of 25 mm for flexible mechanical integration.
- Termination style is surface mount, facilitating easy connection.
- Complies with RoHS standards ensuring reduced hazardous substances.
- Originates from Japan, assuring quality craftsmanship and standards.
Product Description
Alps Alpine EC11B152420G Mechanical Rotary Encoder is a precision incremental rotary encoder featuring 15 pulses per revolution, suited for applications requiring accurate rotational position feedback. The 6 mm slot shaft and 25 mm shaft length provide mechanical compatibility for through hole mounting on PCBs and panels.
This encoder produces a digital square wave output with channel A leading channel B by 60° ±30° on clockwise rotation, delivering quadrature signals ideal for direction and speed detection. The robust design supports surface mount termination style facilitating secure electrical connection.
Manufactured under RoHS compliance, the EC11B152420G encoder ensures environmentally friendly construction. It is rated for a rotational life of 15000 cycles, ensuring durability in demanding industrial and electronic control applications.
The package includes the rotary encoder with an end slotted metal shaft and mounting nut and washer for straightforward installation. With a rated load current of 10 mA at 5 Vdc, insulation resistance of 10 MR minimum at 300 Vdc, and withstand voltage of 300 Vac, it is suitable for laboratory, industrial, automation, and electronic equipment operations.
6 mm slot shaft designed for incremental pulse generation. 15 pulses per revolution with digital square wave signal output. Through hole mount type with surface mount termination style for easy integration. Quadrature index output for precise directional feedback.
Long operational life rated for 15000 cycles, suitable for industrial use. RoHS compliant, ensuring reduced environmental impact. Includes mounting nut and washer for installation convenience. Origin manufactured in Japan ensuring high quality standards.
Ideal for use across electronic components, power and connectors, passive components, sensors, and rotary encoder applications. This product is an excellent choice for industrial, laboratory, automation, and manufacturing equipment requiring reliable rotational detection.
Discover similar products and download 3D models, schematics, and footprints to optimize your mechanical design projects with this high-quality Mechanical Rotary Encoder.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model generates 15 pulses per revolution, providing accurate incremental position feedback for various applications.
It produces a digital square wave output, which is essential for precise rotational position detection.
The shaft diameter is 6 mm, designed for compatibility with various mechanical systems.
The shaft length is 25 mm, allowing for flexible integration into different applications.
It features a through hole mount type, which is suitable for PCB and panel mounting.
The termination style is surface mount, facilitating easy electrical connections during installation.
The index output is quadrature, which supports precise directional rotation detection.
Yes, it complies with RoHS standards, ensuring reduced hazardous substances in its construction.
The rated load current is 10 mA at 5 Vdc, suitable for various electronic applications.
It has an operational life rating of 15000 cycles, making it suitable for demanding industrial applications.
This encoder originates from Japan, ensuring high craftsmanship and quality standards.
It is suitable for use in industrial, laboratory, automation, and manufacturing equipment requiring reliable rotational detection.
