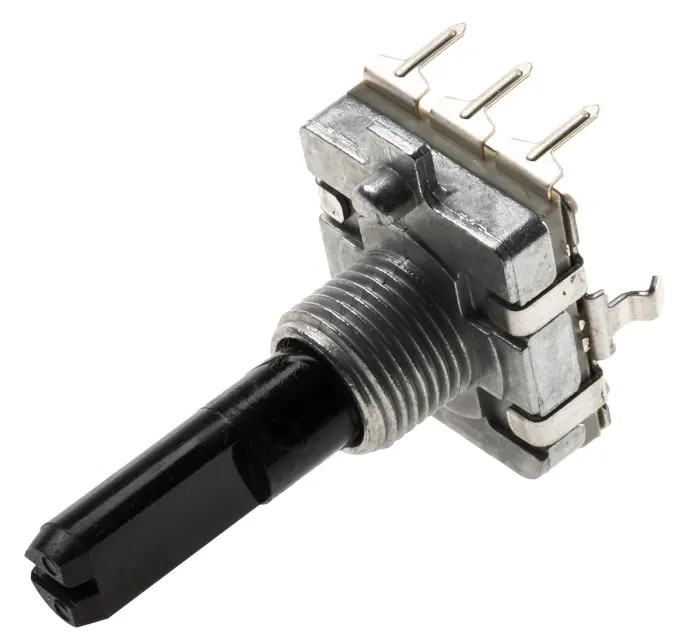

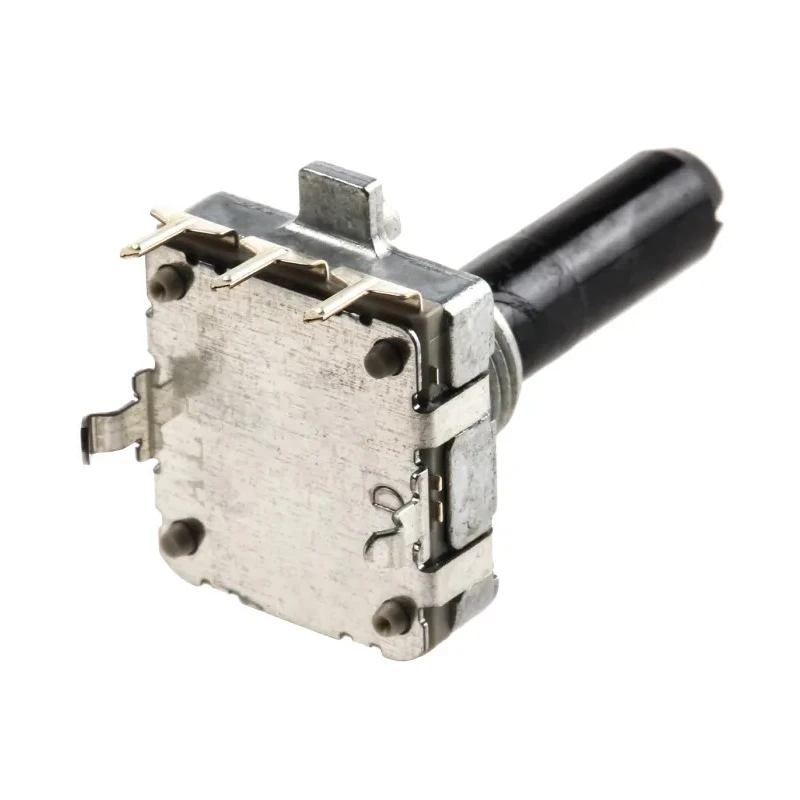

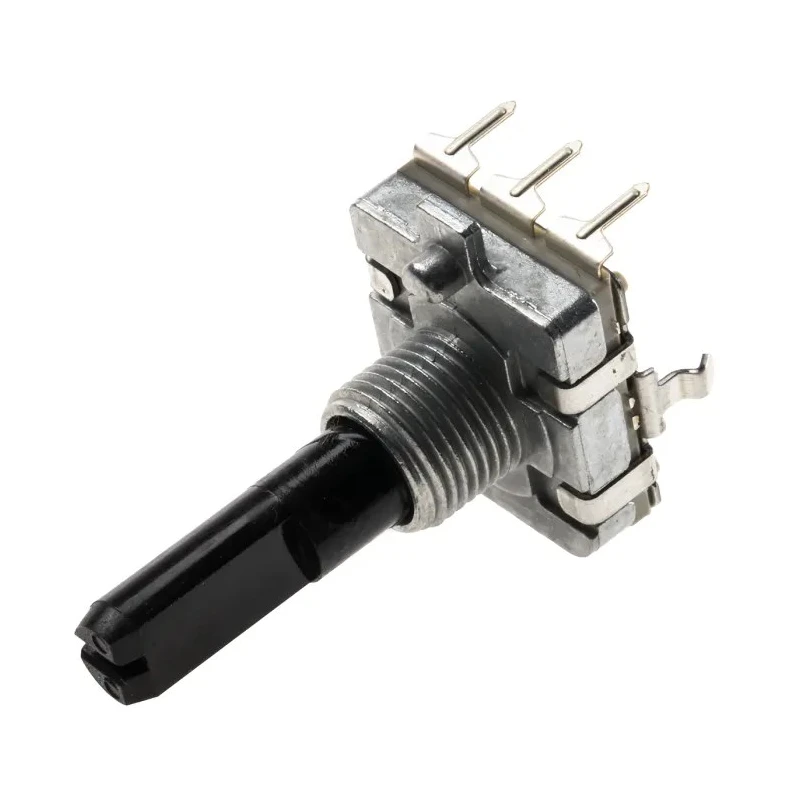

Alps Alpine 24 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft, Through Hole EC16B242040R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alps Alpine |
| Model | EC16B242040R |
| Mount Type | Through Hole |
| Current Rating | 0.5mA |
| Series | EC16B |
| Shaft Diameter | 6mm |
| Shaft Length | 25mm |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Shaft Style | Flat |
| Encoder Reading | Incremental |
Key Features
- Features incremental encoder reading for accurate pulse output.
- Includes a 6 mm diameter flat shaft with 25 mm length for secure mounting.
- Through hole mount type suitable for PCB or panel installation.
- Surface mount termination style complying with RoHS standards.
- Built for long life with a rotational lifespan of approximately 100,000 cycles.
- Current rated at 0.5 mA ensuring low power consumption.
- Output channel A leads channel B by 54° ±30° during clockwise rotation.
- Plastic shaft with flat edge to prevent slippage during use.
Product Description
Alps Alpine EC16B242040R 24 ppr pulse incremental Mechanical Rotary Encoder with a 6 mm flat shaft and through hole mounting provides reliable position encoding for various electronic applications.
This 16 mm low profile encoder is designed for PCB or panel mounting with vertical or through hole options, allowing versatile integration into industrial and laboratory equipment. It delivers incremental encoder signals with 24 pulses per revolution, suitable for precise speed and position measurement.
The shaft is made of plastic with a flat edge on the 6 mm diameter shaft, measuring 25 mm in length. Its mounting nut and washer are supplied to simplify fitting. The encoder exhibits a long operating life rated for 100,000 cycles, ideal for industrial automation, robotics, and control systems.
The output signal characteristics include channel A leading channel B by 54° ±30° during clockwise rotation, enabling accurate determination of rotational direction and speed. With a current rating of 0.5 mA and RoHS compliance, this encoder meets electrical and environmental standards typical in sensor components.
Features incremental encoder reading for accurate pulse output. Includes a 6 mm diameter flat shaft with 25 mm length for secure mounting. Through hole mount type suitable for PCB or panel installation. Surface mount termination style complying with RoHS standards.
Built for long life with a rotational lifespan of approximately 100,000 cycles. Current rated at 0.5 mA ensuring low power consumption. Output channel A leads channel B by 54° ±30° during clockwise rotation. Plastic shaft with flat edge to prevent slippage during use.
Supplied with a mounting nut and washer for easy installation. Series EC16B encoders designed for consistent performance in electronic sensor applications.
This product is ideally suited for industrial machinery, robotics, laboratory instrumentation, and electronic sensor systems requiring precise rotational feedback. Compatible with applications in electronics manufacturing, automation controls, and measurement devices. Browse the Electronics & Electricals category on EnvMart for compatible sensors and rotary encoders.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an incremental encoder reading with 24 pulses per revolution (ppr).
It features a through hole mount type, suitable for PCB or panel installation.
The current rating is 0.5 mA, ensuring low power consumption during operation.
The shaft has a diameter of 6 mm and a length of 25 mm, designed for secure mounting.
During clockwise rotation, output channel A leads channel B by 54° ±30°.
It has a rotational lifespan rated for approximately 100,000 cycles.
The shaft is made of plastic and features a flat edge to prevent slippage during use.
Yes, it complies with RoHS standards, ensuring it meets electrical and environmental regulations.
It uses a surface mount termination style.
It is suitable for industrial machinery, robotics, laboratory instrumentation, and electronic sensor systems requiring precise rotational feedback.

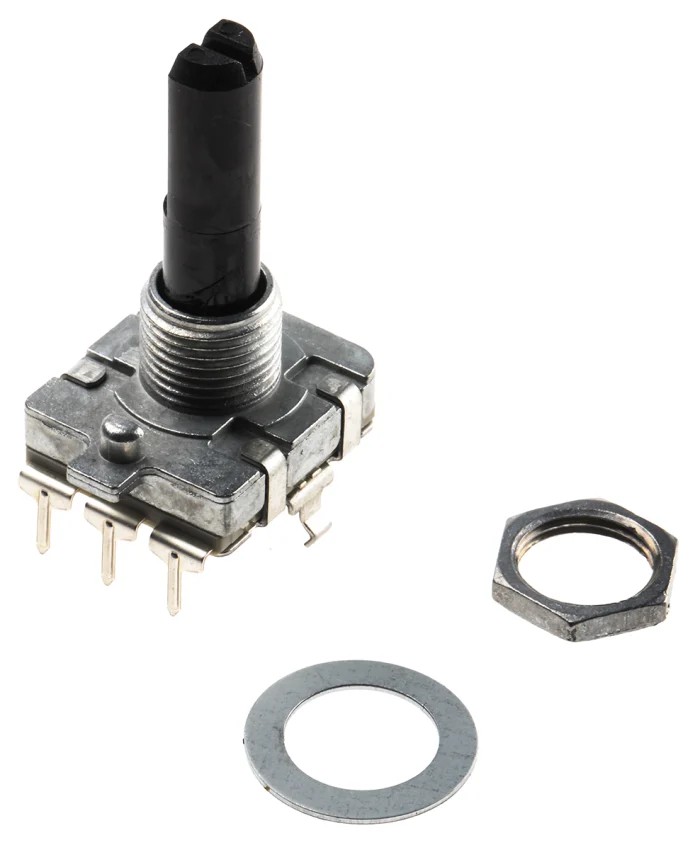

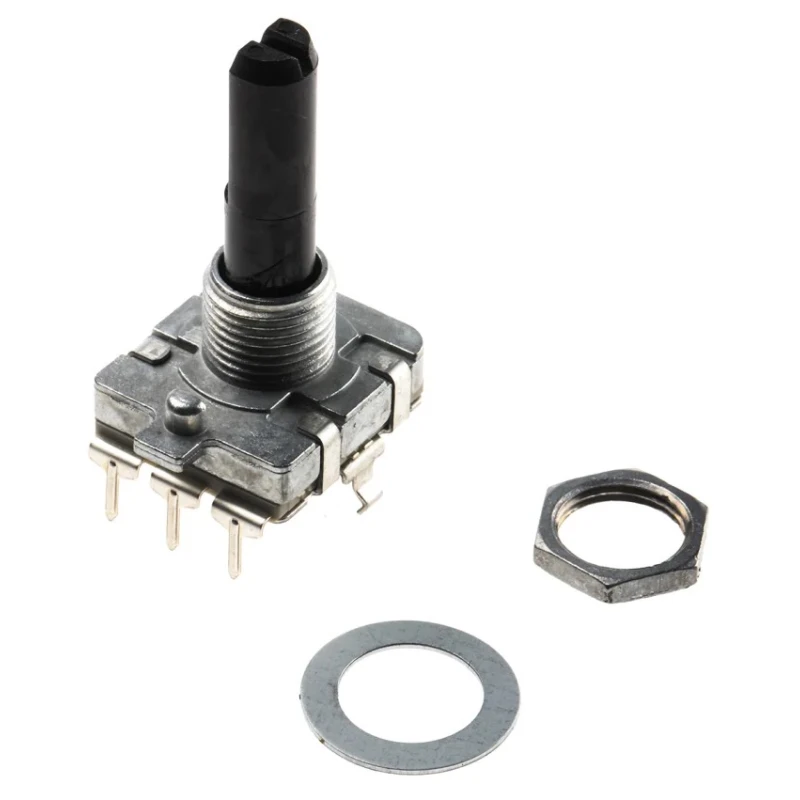

The encoder is supplied with a mounting nut and washer for easy installation.
This model belongs to the EC16B series of encoders, designed for consistent performance in electronic sensor applications.
