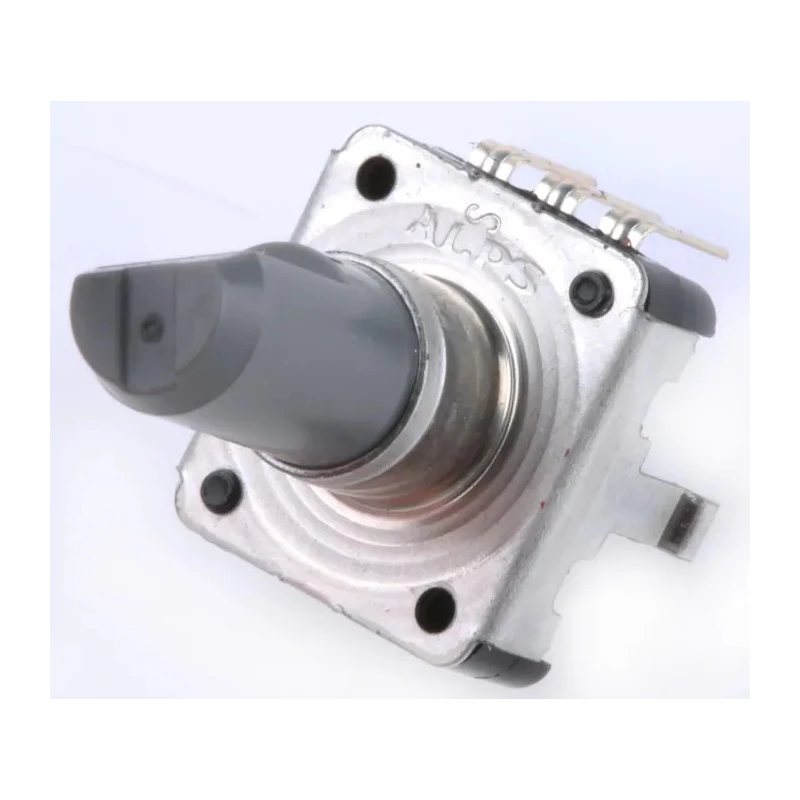

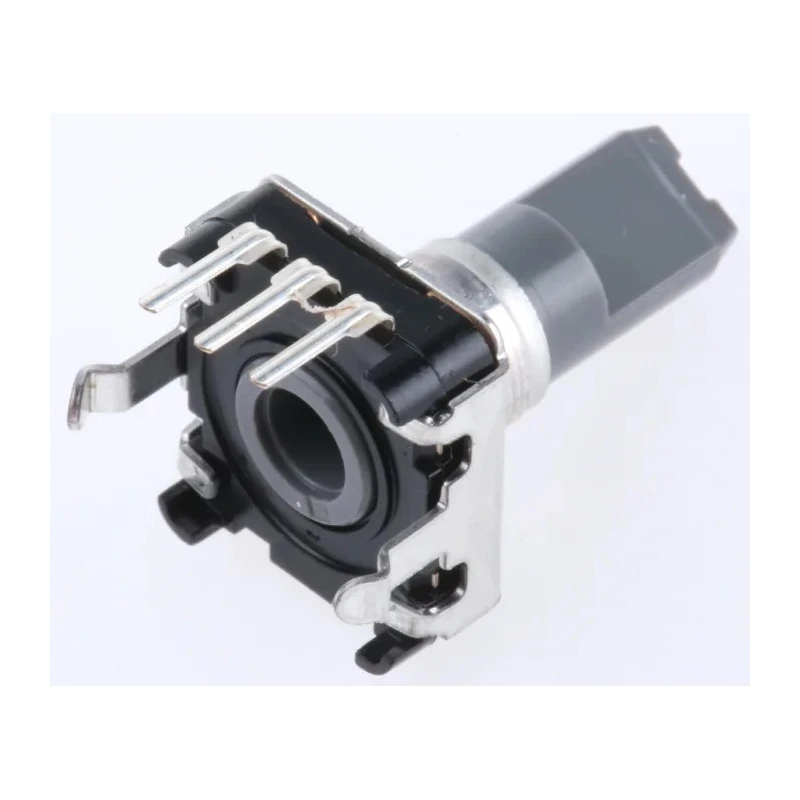

Alps Alpine 12 ppr Pulse Mechanical Rotary Encoder with 6 mm Flat Shaft, 20 mm Length, Not Indexed EC12E1220401

Alps Alpine EC12E1220401 Mechanical Rotary Encoder is a precise incremental rotary encoder offering 12 pulses per revolution. It features a 6 mm flat shaft with a 20 mm shaft length and is designed for through hole PCB mounting. This encoder is ideal for control interfaces in audio mixers, electronic instruments, and various industrial devices requiring accurate rotational position feedback.

The EC12 series includes both flat shaft and hollow shaft variants, with options for push switch integration. This model is an incremental type rated for 30,000 operating cycles, ensuring durability and longevity in demanding industrial and commercial applications.

The device outputs a not indexed signal via PC pin termination style, facilitating straightforward circuit integration and signal processing. Its design conforms to RoHS environmental standards, underscoring commitment to safety and compliance.

Applications encompass industrial machinery control, audio-visual equipment, measurement instruments, and other electromechanical systems where accurate rotary sensing is crucial. This encoder provides reliable performance in both laboratory and industrial automation contexts.

This rotary encoder supplies 12 pulses per revolution for fine resolution control. The flat shaft style supports stable mechanical connection with minimal backlash. 20 mm shaft length facilitates secure mounting through PCB boards.

Not indexed output type matches systems requiring continuous rotary feedback. PC pin termination allows easy soldering and electrical contact efficiency. Complies with RoHS standards promoting environmental safety. EC12 series reputation for robust and consistent operation in incremental encoder market.

This product expands the options available for precision control in electronics and industrial equipment. Browse more sensors and rotary encoders at EnvMart for complementary components.
