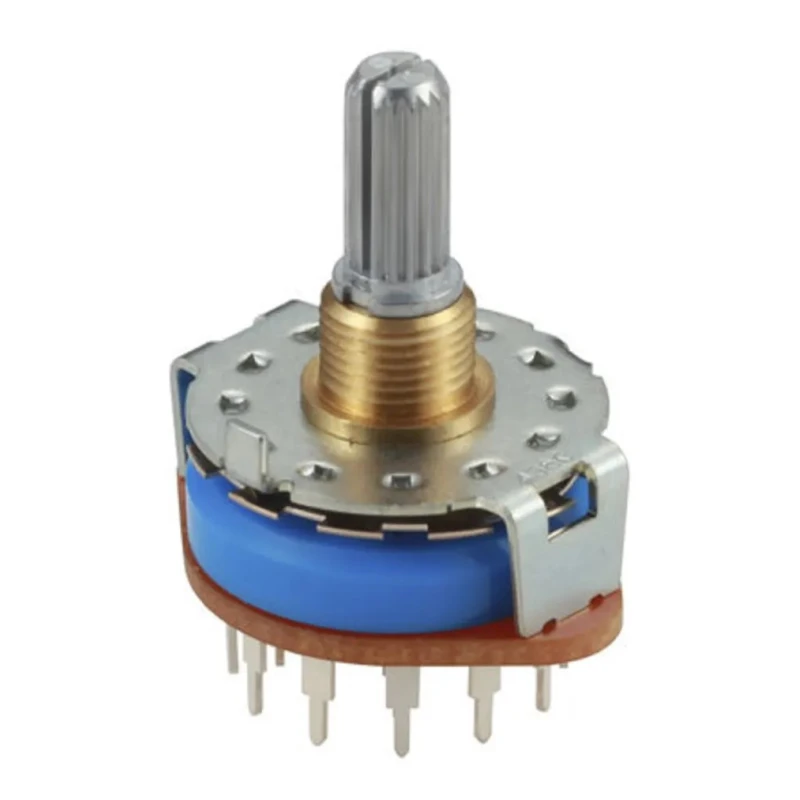

Alps Alpine 3 Position 4P3T Rotary Switch 250mA Terminal SRRM433700

Alps Alpine SRRM433700 is a 3 Position 4P3T Rotary Switch engineered for reliable electrical switching applications with a 250mA contact rating and terminal connections suitable for PCB mounting.

This rotary switch features a 12-position general-purpose vertical operation with 4 poles and 3 positions, providing flexible switching configurations for diverse industrial, electronic, and automation applications.

It supports a maximum AC voltage of 500V and a maximum DC voltage of 30V, making it suitable for moderate voltage control circuits. The switch is designed to operate reliably in ambient temperatures ranging from -60°C to 60°C, ensuring performance under harsh environmental conditions.

Its compact design includes a depth of 24.9mm, width of 26.8mm, height of 31.5mm, and diameter of 31mm, enabling installation in space-constrained assemblies. The grey actuator with a 30° angle of throw offers ergonomic and precise manual control.

Durability is ensured with a mechanical life expectancy of 10,000 cycles, suitable for repeated use in control panels, electronic devices, and automation systems. Features 3 positions and 4 poles for versatile circuit control.

Supports up to 500V AC and 30V DC maximum switching voltage. Terminal type connections designed for PCB mount applications. Mechanical life rating of 10,000 cycles for prolonged use. Operates within a temperature range of -60°C to 60°C for diverse environments.

Compact dimensions facilitate use in tight spaces. Grey actuator with 30° angle of throw for precise operation.

This product is ideal for use in electronic equipment, home appliances, industrial automation systems, and other applications requiring precise rotary switching with moderate current ratings.
