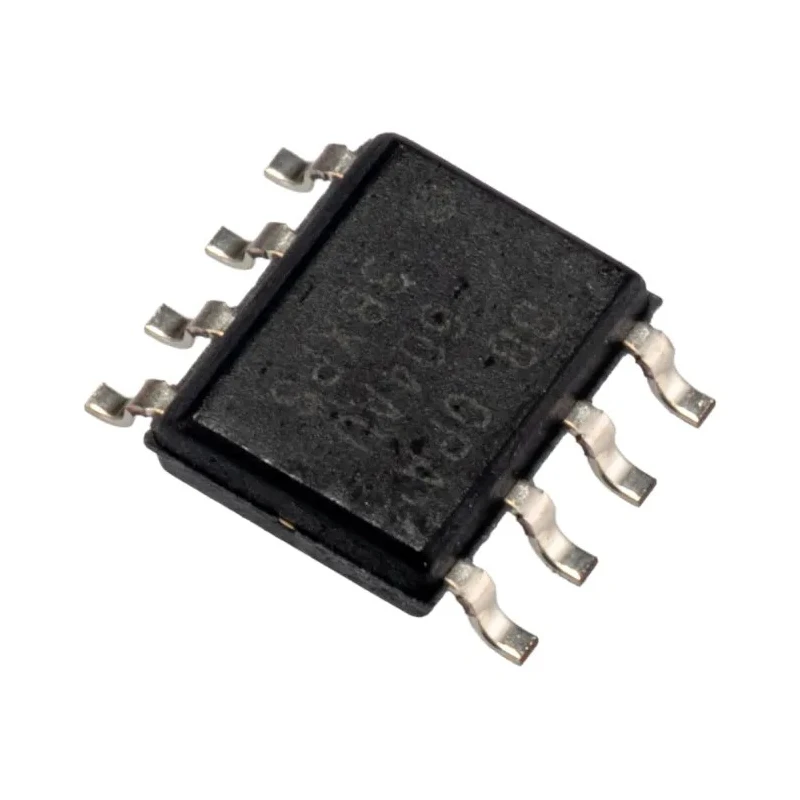

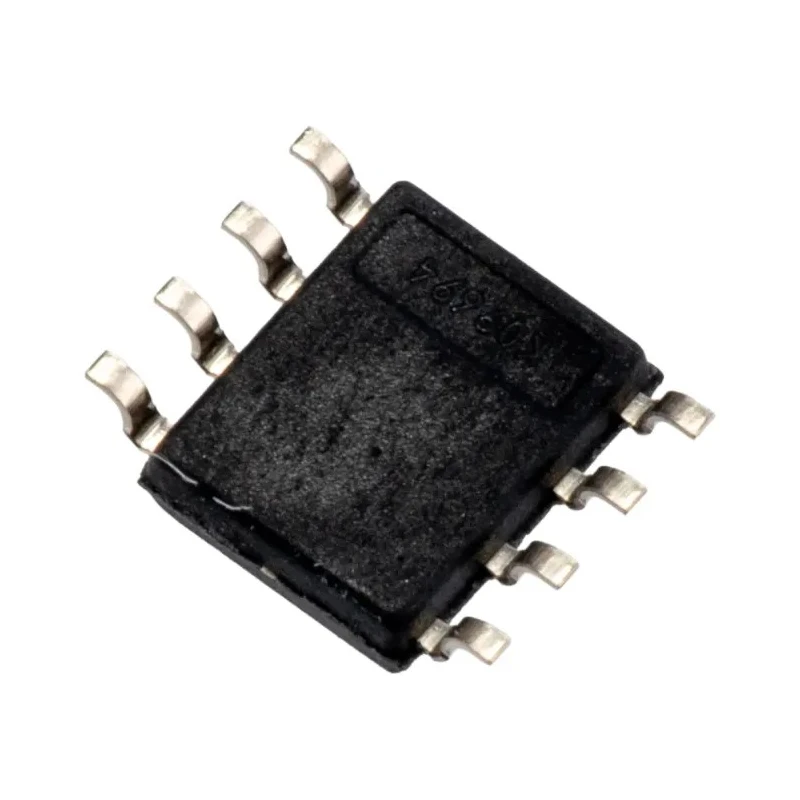

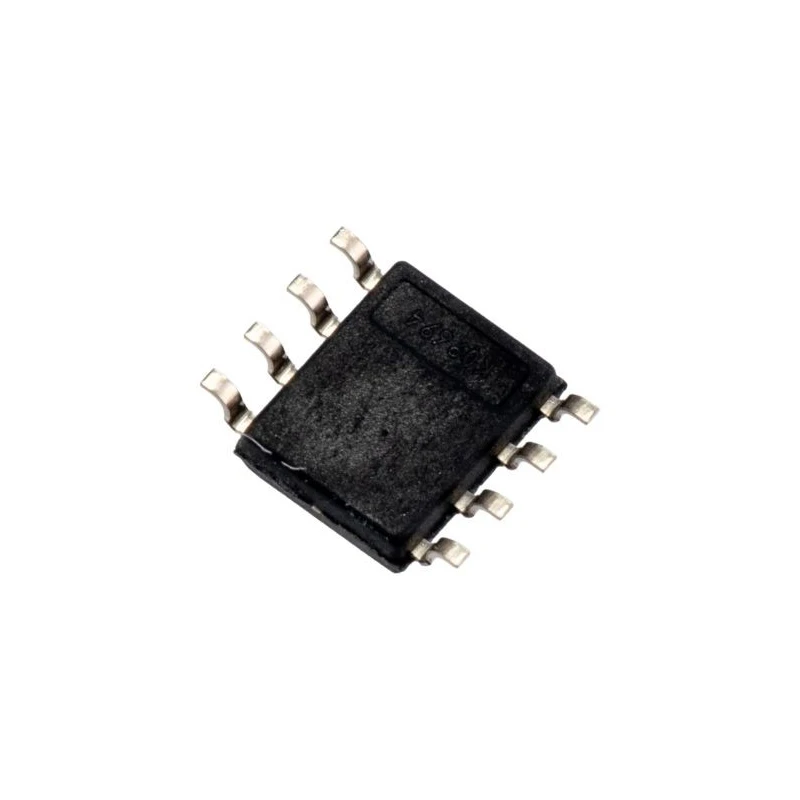

Texas Instruments OPA604AU JFET Input Operational Amplifier 20MHz, SOIC-8, ±4.5V to ±25V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA604AU |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA604 |
| Output Current | 35mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 25V |
| Minimum Supply Voltage | 4.5V |
| GBP - Gain Bandwidth Product | 20MHz |
| Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 25V/μs |
| Input Offset Current | ±3 pA |
Key Features
- Offers a 20MHz gain bandwidth product suitable for precision analog signal processing.
- Operates with supply voltages ranging from ±4.5V to ±25V for versatile use in various circuit designs.
- Features a fast 25V/μs slew rate and low input bias current of 50pA, optimizing performance for high-fidelity audio and instrumentation systems.
- Encapsulated in an 8-pin SOIC package for easy integration into PCB designs.
- Supports single-channel operation with robust 35mA maximum output current capability.
- Complies with RoHS environmental and safety standards.
- Rated for industrial temperature ranges from -25°C to +85°C, meeting wide environmental requirements.
Product Description
The Texas Instruments OPA604AU is a precision JFET input operational amplifier engineered for high-accuracy analog applications. Providing a 20MHz gain bandwidth product, this IC is well suited for audio processing, high-speed signal acquisition, and professional instrumentation. It delivers excellent linearity and fast response due to its 25V/μs slew rate, ensuring minimal distortion in dynamic signal paths.
This device operates across a wide supply range of ±4.5V to ±25V, accommodating both low- and high-voltage environments found in industrial, laboratory, and audio electronic systems. The low input bias current of 50pA allows for accurate measurements in high-impedance circuits, while the ±5mV input offset voltage ensures minimal drift and consistent performance.
The OPA604AU is encapsulated in a standard 8-pin SOIC (Small Outline Integrated Circuit) package, facilitating surface mount assembly in compact PCB layouts. Its single-channel configuration, 35mA maximum output current, and ±3pA input offset current make it adaptable for precision buffer, filter, or amplification stages.
Designed for harsh environments, this amplifier is specified for operation from -25°C to +85°C, maintaining stability and reliability under fluctuating ambient temperatures. It is compliant with RoHS standards, allowing integration into modern environmentally regulated products.
Common use cases for this Operational Amplifier include signal conditioning in test and measurement equipment, high-fidelity audio amplifiers, sensor interfaces, and other applications where low noise, high gain, and excellent linearity are required. Its robust construction and consistent parameters make it a staple in laboratory, industrial, and engineering development environments.
With its combination of high speed, low noise, and flexible power supply compatibility, the Texas Instruments OPA604AU is suitable for demanding analog system designs seeking both performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA604AU has a gain bandwidth product of 20MHz, making it suitable for precision analog signal processing applications.
This model can operate with a maximum supply voltage of 25V, allowing for versatile use in various circuit designs.
The input bias current of the OPA604AU is 50 pA, which helps optimize performance in high-impedance circuits.
This operational amplifier is rated for operation in temperatures ranging from -25°C to +85°C, suitable for industrial applications.
The OPA604AU can provide a maximum output current of 35mA, making it capable of driving various loads effectively.
It is encapsulated in an 8-pin SOIC (Small Outline Integrated Circuit) package, facilitating surface mount assembly.
The slew rate of this operational amplifier is 25V/μs, allowing for fast response in dynamic signal paths.
Yes, it complies with RoHS environmental and safety standards, making it suitable for modern regulated products.
This model supports single-channel operation, making it adaptable for various circuit configurations.
The input offset voltage for the OPA604AU is ±5 mV, which ensures minimal drift and consistent performance.
The dimensions of this operational amplifier are 4.9mm in length, 3.91mm in width, and 1.58mm in height.
Common applications include signal conditioning in test and measurement equipment, high-fidelity audio amplifiers, and sensor interfaces.
