Molex C-Grid Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-4001

Free Delivery in India | Lowest Global Shipping Charges

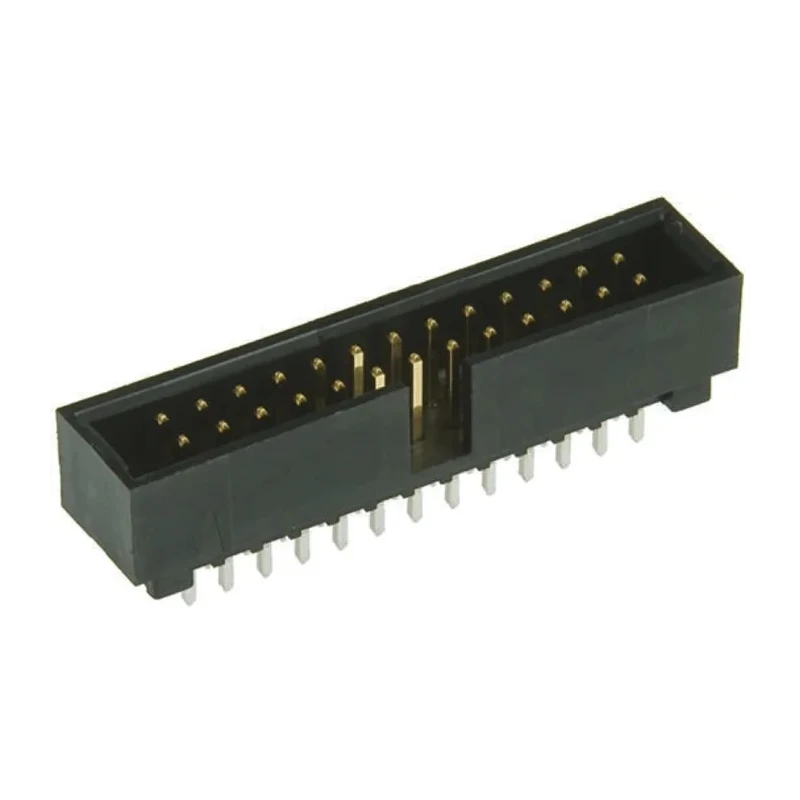

Molex C-Grid Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-4001

Name: Molex C-Grid Series Straight Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 70246-4001
Brand: Molex
SKU: 206443
Price: 6.2 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	2.5A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	C-Grid
Termination Type	Solder
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Offers a current rating of 2.5A suitable for diverse electronic applications.
Features a housing made from durable polybutylene terephthalate.
Gold-plated phosphor bronze contacts ensure reliable conductivity.
Designed for wire-to-board connector system with through hole mounting.
Operates safely between -55°C and 120°C temperature range.
Male contact gender with tail pin length of 3.43mm and mating pin length of 2.54mm.
Rated for 250V operating voltage adhering to industrial standards.
Shrouded design provides enhanced protection against mis-mating.

Product Description

Molex 70246-4001 C-Grid Series Straight Through Hole PCB Header is a high-quality connector designed to provide robust and reliable connections on printed circuit boards. This model features 40 male contacts arranged in 2 rows with a standard 2.54 mm pitch, making it ideal for various electronics manufacturing and assembly processes.

The housing is constructed from polybutylene terephthalate, offering excellent mechanical strength and thermal resistance. Contacts are made of phosphor bronze with gold plating to ensure low contact resistance and corrosion protection. The 3.43 mm tail pin length allows for secure through-hole soldering onto PCBs.

With a current carrying capacity of 2.5A and an operating voltage of 250V, this PCB header is suited for a wide range of applications including industrial electronics, telecommunications equipment, and consumer electronics. The connector system supports wire-to-board interfaces, simplifying assembly and improving product reliability.

This connector maintains operational stability in temperatures ranging from -55°C to 120°C, making it suitable for harsh environmental conditions and demanding industrial settings. The shrouded design minimizes the risk of mis-mating and mechanical damage during installation or maintenance.

Durable polybutylene terephthalate housing for robust performance. Phosphor bronze contacts with gold plating for enhanced conductivity. 2-row, 40 contact arrangement at 2.54 mm pitch. Through hole mount type for secure PCB attachment.

Operates within -55°C to 120°C temperature range. Rated for 2.5A current and 250V voltage. Male contact gender with precise tail and mating pin lengths. Shrouded configuration prevents mis-mating. Perfect for industrial, manufacturing, and electronic applications.

This Molex PCB header is widely used across industries including electronics manufacturing, automation, and equipment assembly. Its reliable electrical and mechanical features make it a trusted choice for OEMs and electronic experts. Explore more PCB connectors and electronic components in EnvMart’s extensive catalogue to find the right fit for your applications.

Explore more products in our PCB Headers category.
