Sifam Tinsley Analogue Voltmeter AC 38 mm Cutout Height 43 mm Cutout Width AL19W

Sifam Tinsley AL19W is a high-quality analogue voltmeter designed for AC voltage measurement in industrial and automation control systems. The meter features a 38 mm cutout height and 43 mm cutout width, making it suitable for compact panel installations where precision and durability are critical. Its transparent acrylic front and polystyrene (SAN) rear body provide protection and longevity in demanding environments.

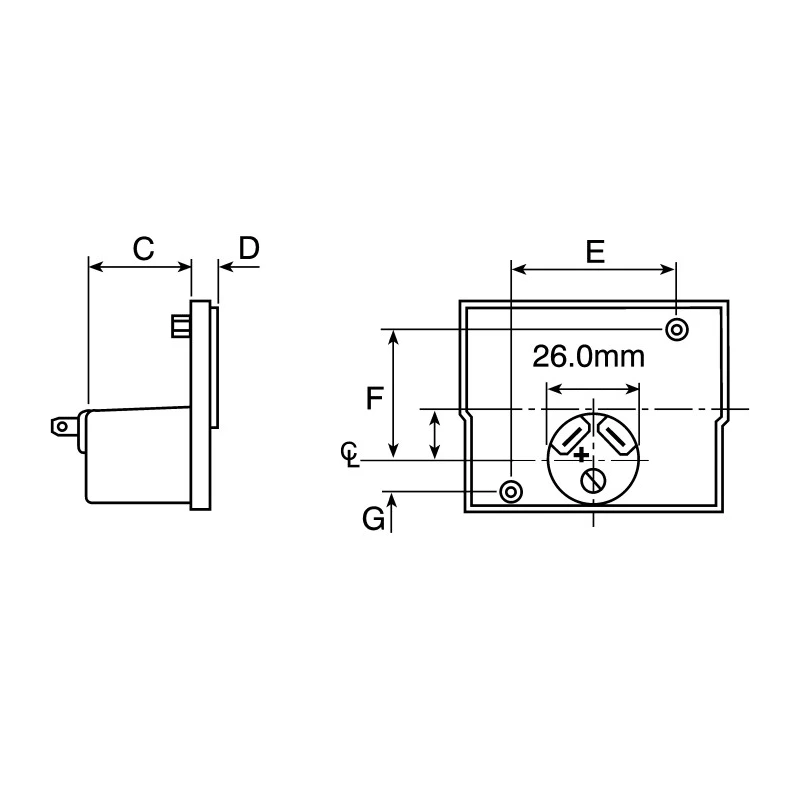

The taut band core magnet movement housed within a 26 mm diameter barrel ensures that the meter occupies minimal space behind the panel while delivering accurate deflection without calibration interference, even when mounted on ferrous panels.

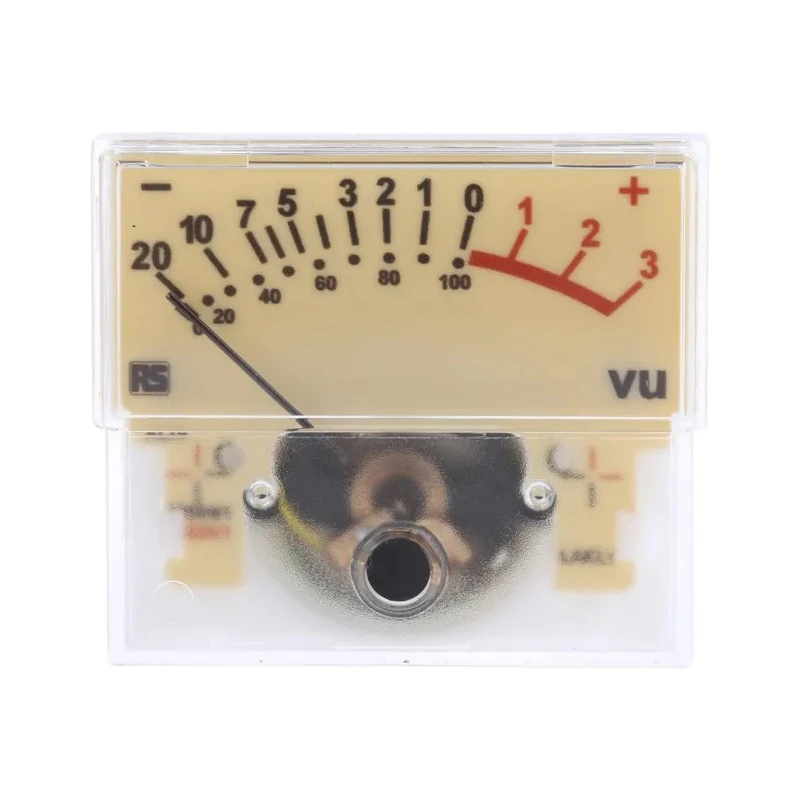

This model is calibrated for use with a 3.6 kΩ resistor and offers a dual meter scale indicating ranges from -20 to 3 dB and 0 to 100%, making it adaptable for various signal monitoring needs. The rear zero adjustment screw facilitates convenient calibration adjustments whenever necessary.

Connection terminals are provided as 6 mm tag terminals with M4 bolt options for a high-specification mounting experience. Black ABS mounting bezels are available separately, enabling secure front or behind-panel mounting configurations. A rear mounting 12V bulb top-lighting assembly option is also available for enhanced visibility in dim panel environments.

The AL19W series adheres to IEC 268-17 and BS 6840 Part 17:1991 standards, ensuring performance reliability with dynamic characteristics such as frequency response, harmonic distortion, input impedance, and temperature tolerance. The meter operates within a temperature range of - 25°C to +55°C, allowing it to function reliably in a wide array of industrial settings including electrical, automation, process control, and manufacturing environments.

Designed for AC current voltage measurement with stable reading performance. Compact panel mounting with 38 mm by 43 mm cutout dimensions. Durable body materials suitable for long-term industrial use. Rear zero adjustment and secure mounting options included.

Standards-compliant for assured quality and accuracy.

This Analogue Voltmeter is a dependable solution for precision voltage monitoring in industrial automation, process control, electrical panels, and laboratory instrumentation. Sifam Tinsley products are renowned for engineering excellence and reliability, making the AL19W series ideal for rigorous commercial and industrial applications.
