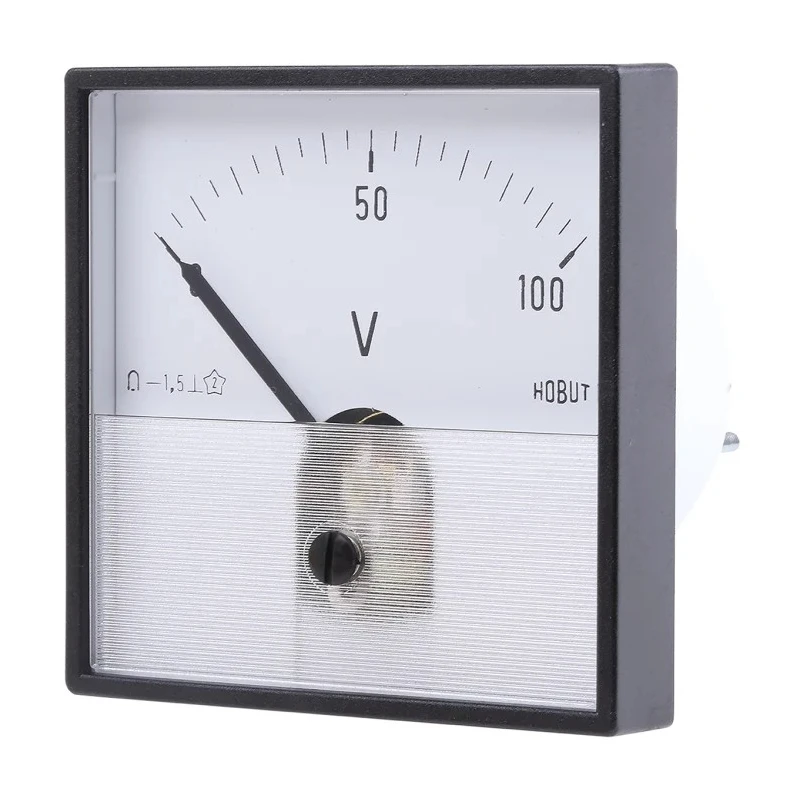

HOBUT PD7 Series Analogue DC Voltmeter, 72 mm Cutout, Accuracy Class 1.5 PD721MCS100V/2-001

HOBUT PD721MCS100V/2-001 is a high-quality Analogue Voltmeter designed for DC voltage measurement with precision and reliability. Featuring a 72 mm by 72 mm panel size and a panel cut-out diameter of 56 mm, this voltmeter is suited for industrial and laboratory applications requiring consistent and accurate voltage readings.

This instrument features a horizontal scale with full scale deflection set from 0 to 75mV, rated with accuracy class 1.5 as per BS89/IEC51 standards. The flame retardant case complies with UL94V0 specifications, ensuring safe use in demanding environments.

Designed to operate within a temperature range of - 25 to +40 degrees Celsius, the voltmeter is ideal for various electrical and process control settings such as manufacturing, HVAC systems, and industrial automation.

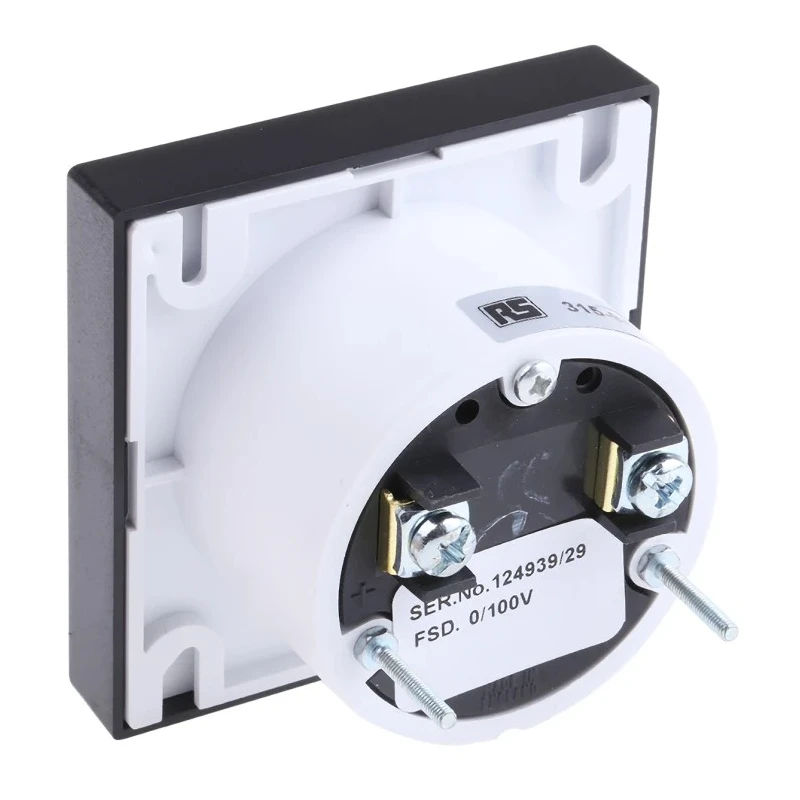

The voltmeter offers convenient mounting options including a U-clamp and 4 pin M3 fixing methods, along with an anti-rotation pin to ensure secure installation on control panels. Compatible cutters for the panel cut-out are stock numbers 511-487 and 615-113.

Integral scales provide direct readable measurements without requiring external shunts for standard use cases, simplifying installation and maintenance. Manufactured in the United Kingdom to CE, ISO 9001, and UKAS standards, this voltmeter combines quality with compliance for demanding industrial applications.

Designed for DC voltage measurement with accuracy class 1.5 to BS89/IEC51 standards. Features a horizontal scale with full scale deflection from 0 to 75mV. Flame retardant case compliant with UL94V0 ensures safe operation.

Operating temperature range from - 25 to +40°C allows reliable performance in varied environments. Includes U-clamp and 4 pin M3 fixing methods with an anti-rotation pin for secure panel mounting. Panel cut-out diameter of 56mm compatible with suitable cutters (stock no. 511-487 and 615-113).

Integral scales provide clear and accurate readings without need for external shunts. Manufactured in the United Kingdom maintaining high-quality standards.

This analogue DC voltmeter is suitable for use in industrial automation systems, process control monitoring, electrical panels, and a variety of laboratory and commercial applications. Explore similar high-quality measurement instruments in the EnvMart Industrial Automation category for reliable control solutions.
