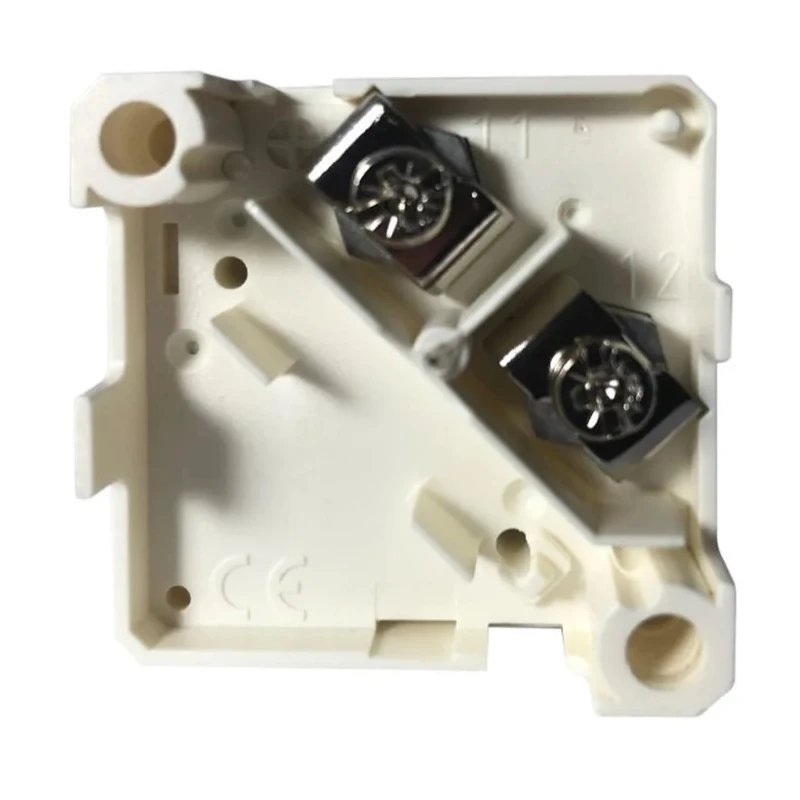

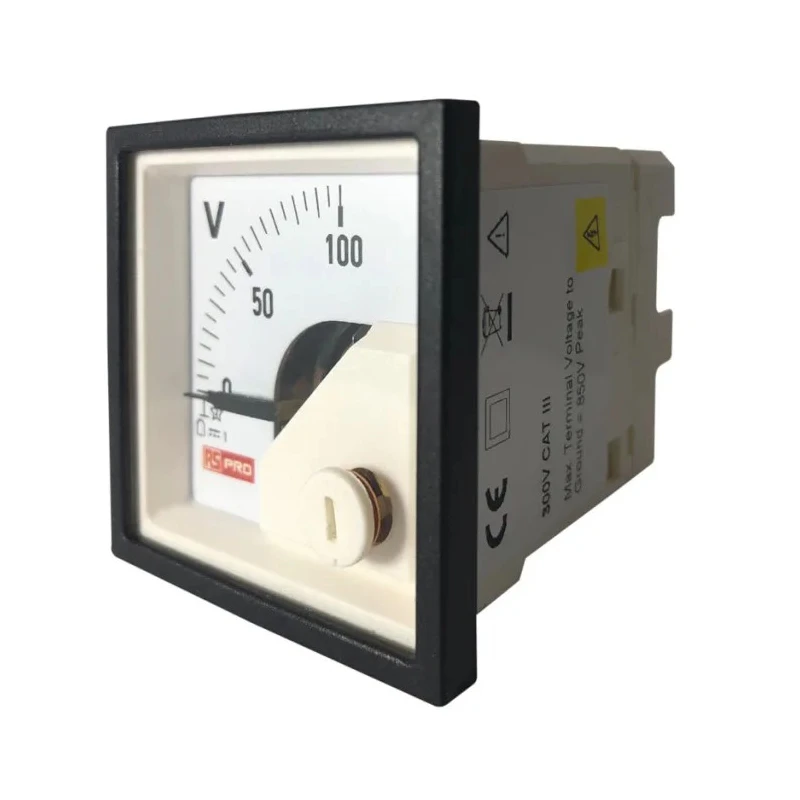

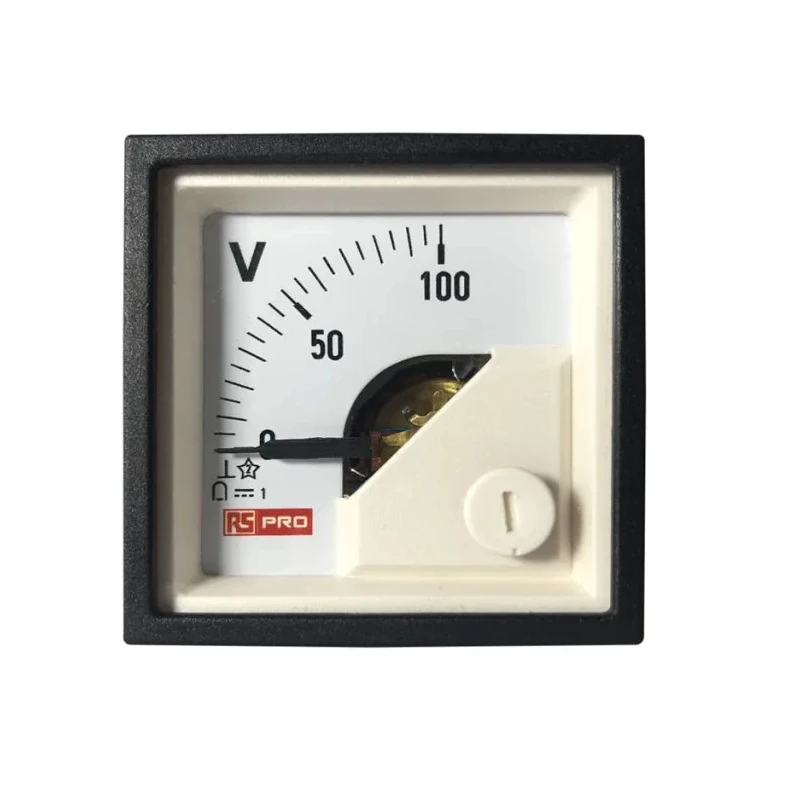

RS PRO 45mm x 45mm DC Analogue Voltmeter with Knife-Edge Pointer 186-2485
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | 1% |
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2485 |
| Depth | 72mm |
| Current Type | DC |
| Pointer | Knife-edge type |
| Shock Resistance | 15g for pulse duration 11 milliseconds |
| Overload | 1.2 times nominal voltage (continuous) |
| Cutout Height | 45mm |
| Cutout Width | 45mm |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| DC voltmeter nominal range of use | 15mV to 600V |
| HOBUT Analogue Voltmeter DC, 45 x 45 mmBrand | HOBUT |
Key Features
- Features a knife-edge pointer for accurate indication.
- Measurement range supports 15mV to 600V DC input.
- Housed in a durable moulded polycarbonate square case.
- Operates reliably between -10°C and 65°C with shock resistance up to 15g.
- Includes linear calibrated scales with 1% accuracy.
- Suitable for mounting in control and switchgear panels.
- Designed for continuous overload of 1.2 times nominal voltage.
- Humidity tolerance below 75% annual average (non-condensing).
Product Description
RS PRO 186-2485 DC Analogue Voltmeter is designed for industrial and automation applications requiring precise DC voltage monitoring. This 45mm x 45mm panel cut-out voltmeter uses a permanent magnet moving coil mechanism with a knife-edge pointer, providing clear and linear voltage readings from 0V up to 100V input. The aluminium coil is suspended on pivots along with a hairspring and jewel mechanism to ensure stable and accurate measurement indication with 1% accuracy.
The voltmeter features a robust moulded polycarbonate square casing suitable for installation in machinery consoles, control panels, and switchgear. It is engineered to operate in temperatures from -10°C to 65°C and withstand shocks up to 15g for pulse durations of 11 milliseconds. Overload protection allows 1.2 times the nominal continuous voltage.
This device measures high current using separate shunts connected at the rear and maintains reliable operation within relative humidity below 75% non-condensing. It meets industry certifications such as CE, UL 94 V-0, EMC directive (2014/30/EC), low voltage directive (2014/35/EC), IP52 rating, EN 61010, VDE 0100-410 (2018-10), IEC 529, IEC 61010, and ISO 20653 (2006-08).
The 0° to 90° pointer deflection ensures intuitive readings on a clear linear calibrated scale. This voltmeter is well-suited for industrial process control, laboratory instrumentation, automation systems, HVAC controls, and electrical testing setups requiring dependable DC voltage measurement.
Features a knife-edge pointer for precise indication. Durable moulded polycarbonate square case for panel mounting. Operates reliably within -10°C to 65°C temperature range. Designed with shock resistance suitable for industrial environments.
Nominal voltage range from 15mV to 600V DC. High accuracy of 1% ensures dependable readings. Complies with multiple safety and quality certifications. Suitable for control, switchgear panels, and machinery consoles. Overload capacity allows continuous operation at 1.2 times nominal voltage.
This RS PRO voltmeter offers a reliable and accurate solution for electrical process control, automation, manufacturing, and testing applications. Explore EnvMart for a wide range of industrial measuring instruments and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 186-2485 DC Analogue Voltmeter has a measurement range from 15mV to 600V DC.
This voltmeter features an accuracy of 1%.
The voltmeter has a cutout height and width of 45mm each and a depth of 72mm.
It operates reliably within a temperature range of -10°C to 65°C.
It uses a knife-edge type pointer for accurate indication.
This model has a shock resistance of 15g for pulse durations of 11 milliseconds.
It is designed for continuous overload of 1.2 times the nominal voltage.
The voltmeter is suitable for operation in relative humidity below 75% annual average (non-condensing).
It complies with several certifications including CE, UL 94 V-0, and EN 61010.
This voltmeter is suitable for industrial process control, laboratory instrumentation, automation systems, HVAC controls, and electrical testing setups.
It is designed for panel mounting in control and switchgear panels.
This voltmeter is designed to measure direct current (DC).
