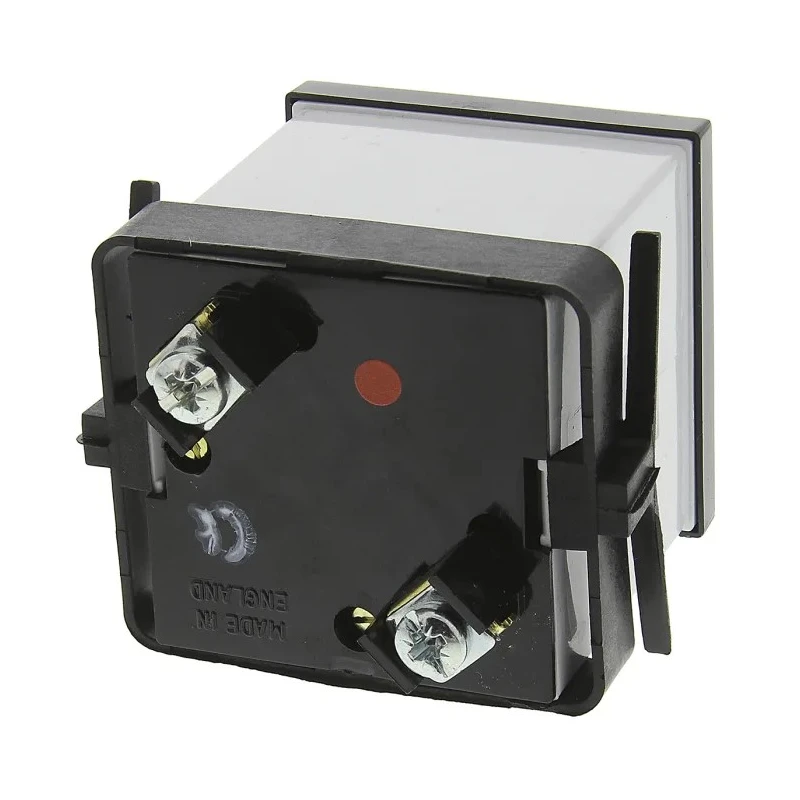

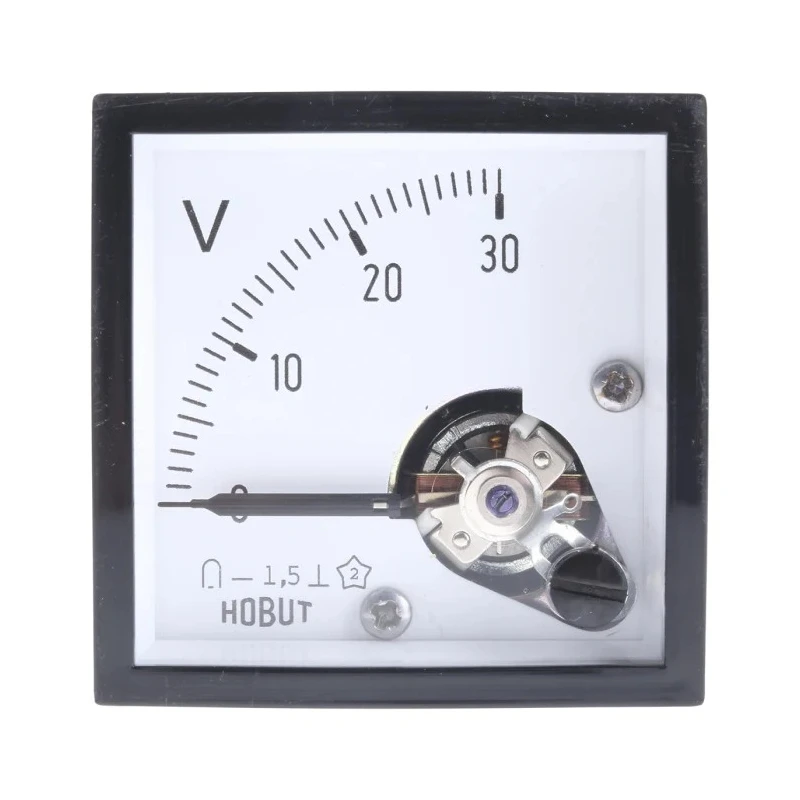

HOBUT D48 Series Analogue DC Voltmeter, 45 mm Cutout Height and Width, IEC Standard D481MCS30V/2-001

Free Delivery in India | Lowest Global Shipping Charges

HOBUT D48 Series Analogue DC Voltmeter, 45 mm Cutout Height and Width, IEC Standard D481MCS30V/2-001

Name: HOBUT D48 Series Analogue DC Voltmeter, 45 mm Cutout Height and Width, IEC Standard D481MCS30V/2-001
Brand: HOBUT
SKU: 154672
Price: 73.49 USD
Availability: InStock



Category Analogue Voltmeter Brand HOBUT Condition New

Specifications

Country of Origin	United Kingdom
Brand	HOBUT
Model	D481MCS30V/2-001
Series	D48
Maximum Operating Temperature	40°C
Current Type	DC
Standards/Approvals	IEC
Cutout Height	45mm
Cutout Width	45mm
RS PRO Analogue Voltmeter DC, 45 mm, 45 mmBrand	RS PRO

Key Features

Designed for DC voltage measurement with a high accuracy class of 1.5.
Features a robust flame retardant case rated UL94V0 for safe operation.
Equipped with mounting brackets for easy installation.
Suitable for operating temperature ranges from -25 to +40°C.
Includes a 90° scale arc for clear voltage reading.
Requires separate ordering of 75mV shunts for operation as all ammeters are shunt operated.
Manufactured in the United Kingdom ensuring high-quality standards.
Meets BS89 and IEC51 standards for reliability and performance.

Product Description

HOBUT D481MCS30V/2-001 Analogue DC Voltmeter provides reliable and accurate DC voltage measurement. Featuring a 45 mm cutout height and width, this Analogue Voltmeter is well-suited for various industrial and automation applications, complying with IEC standards for quality assurance.

The meter utilizes a 90° scale arc for precise voltage indication, with an accuracy class of 1.5 under BS89 and IEC51 certifications. Its flame retardant case is rated UL94V0 which enhances safety during operation. The voltmeter is fitted with mounting brackets, providing straightforward panel installation. Designed to operate in temperature conditions from -25°C to +40°C, it is suitable for a wide range of environmental conditions in industrial and commercial settings.

Due to the shunt operated design, appropriate 75mV shunts must be ordered separately for proper function as the meters cannot be used without them. The compact 48x48 mm dimension includes integral scales with options available for larger ammeters to be ordered separately.

Manufactured in the United Kingdom, this voltmeter guarantees compliance with international electrical standards ensuring reliable and durable performance for process control environments.

Accurate DC voltage measurement with 1.5 accuracy class. Flame retardant UL94V0 rated casing for enhanced safety. Bracket mounting for easy installation in control panels. Wide operating temperature range from -25 to +40°C.

Complies with BS89, IEC51, and IEC standards. Requires separate 75mV shunts for operation. Compact 48x48 mm size with integral scales. Manufactured under high-quality standards in the United Kingdom.

This analogue DC voltmeter is ideal for industrial automation, process control, laboratory instrumentation, and electrical panel applications. It is a robust solution for precise voltage monitoring ensuring safety and compliance.
