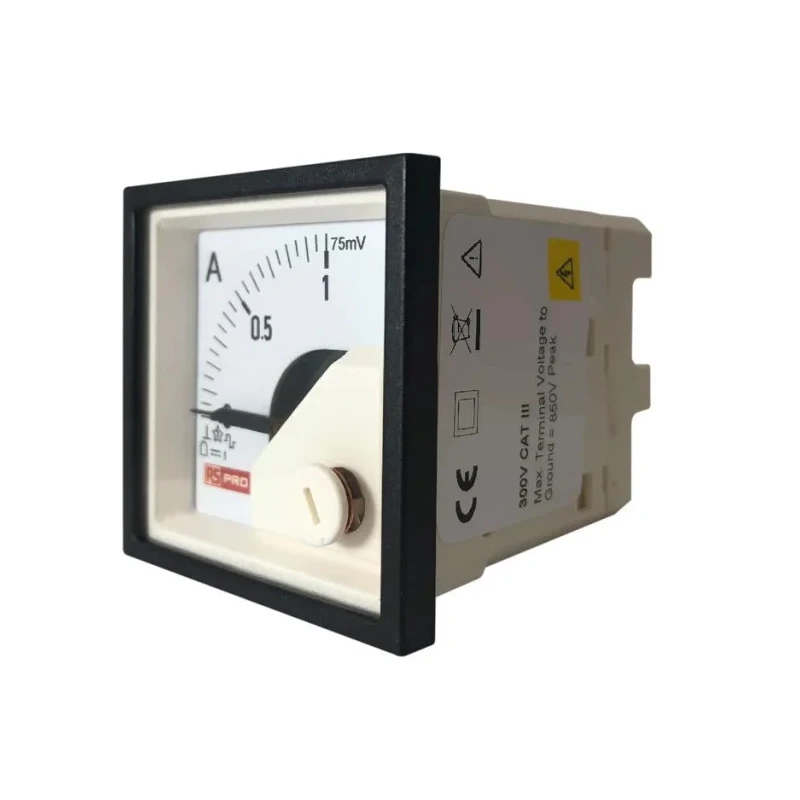

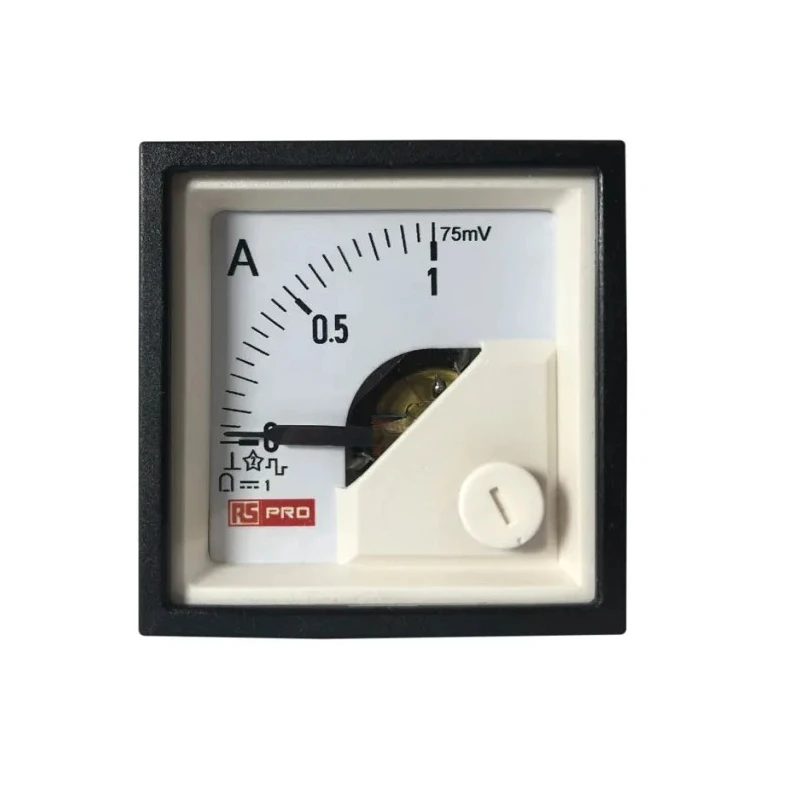

RS PRO Analogue DC Voltmeter 45 mm x 45 mm Panel Mount 15mV to 600V Nominal Range 1% Accuracy 186-2477
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | 1% |
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2477 |
| Depth | 72mm |
| Current Type | DC |
| Pointer | Knife-edge type |
| Shock Resistance | 15g for pulse duration 11 milliseconds |
| Overload | 1.2 times nominal voltage (continuous) |
| Cutout Height | 45mm |
| Cutout Width | 45mm |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| DC voltmeter nominal range of use | 15mV to 600V |
Key Features
- Durable polycarbonate square case suitable for control panel mounting.
- Permanent magnet moving coil mechanism provides accurate average readings.
- Knife-edge pointer deflecting 0° to 90° for clear indication.
- External shunts enable high current measurement up to 1A SC.
- Operates reliably from -10°C to 65°C with 15g shock resistance.
- Continuous overload rating of 1.2 times nominal voltage.
- Certified to CE, UL 94 V-0, EMC directive, and IP52 rated protection.
- Designed for use in industrial automation, process control, and electrical testing.
Product Description
RS PRO 186-2477 Analogue DC Voltmeter is a high-precision panel mount device designed for monitoring DC voltages from 15mV to 600V with an accuracy of 1%. It features a 45 mm by 45 mm cutout suitable for integration into control and switchgear panels across industrial, laboratory, and process control environments.
The voltmeter utilises a rugged moulded polycarbonate square case which provides protection and easy mounting. It employs a permanent magnet moving coil mechanism, including an aluminium coil suspended on pivots with a hairspring and jewel bearing system, for precise measurement and average value display. The instrument contains a knife-edge pointer that deflects through 90 degrees for clear and quick readings.
Measurement of high currents up to 1A is facilitated through separate external shunts connected to the rear terminals. The instrument is designed to withstand industrial environmental conditions with operating temperatures between -10°C and 65°C and storage limits from -25°C to 75°C. Shock resistance of 15g for 11 millisecond pulses ensures durability against sudden vibrations or impacts.
This voltmeter supports a continuous overload capacity up to 1.2 times its nominal voltage rating. It offers excellent protection with an IP52 ingress rating and complies with international safety and quality standards such as CE, UL 94 V-0, and relevant EMC and low voltage directives. The cursor movement and scale calibration provide linear and reliable voltage indication suitable for sensitive control systems.
The voltmeter's compact size and reliability make it ideal for electrical panel monitoring and control applications in industrial automation. Its robust construction and certifications support usage in manufacturing, HVAC, water treatment, and process control fields.
The precise measurement and durability ensure long-term stable performance in demanding electrical environments.
Set includes one RS PRO Analogue DC Voltmeter 186-2477 with mounting accessories. For additional control gear instrumentation, explore the full range at EnvMart’s Industrial Automation Systems category.
Explore more products in our Analogue Voltmeter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures DC voltages from 15mV to 600V.
It has an accuracy of 1%.
The cutout dimensions required for this voltmeter are 45mm by 45mm.
It has a shock resistance of 15g for pulse durations of 11 milliseconds.
It features a knife-edge type pointer that deflects from 0° to 90° for clear readings.
The voltmeter operates reliably within a temperature range of -10°C to 65°C.
It supports a continuous overload capacity of 1.2 times its nominal voltage rating.
The depth of the voltmeter is 72mm.
It is certified to CE, UL 94 V-0, and complies with relevant EMC and low voltage directives.
It operates with a relative humidity of less than 75% annual average (non-condensing).
Yes, it can measure high currents up to 1A using external shunts connected to the rear terminals.
The voltmeter features a rugged moulded polycarbonate square case for protection and easy mounting.
