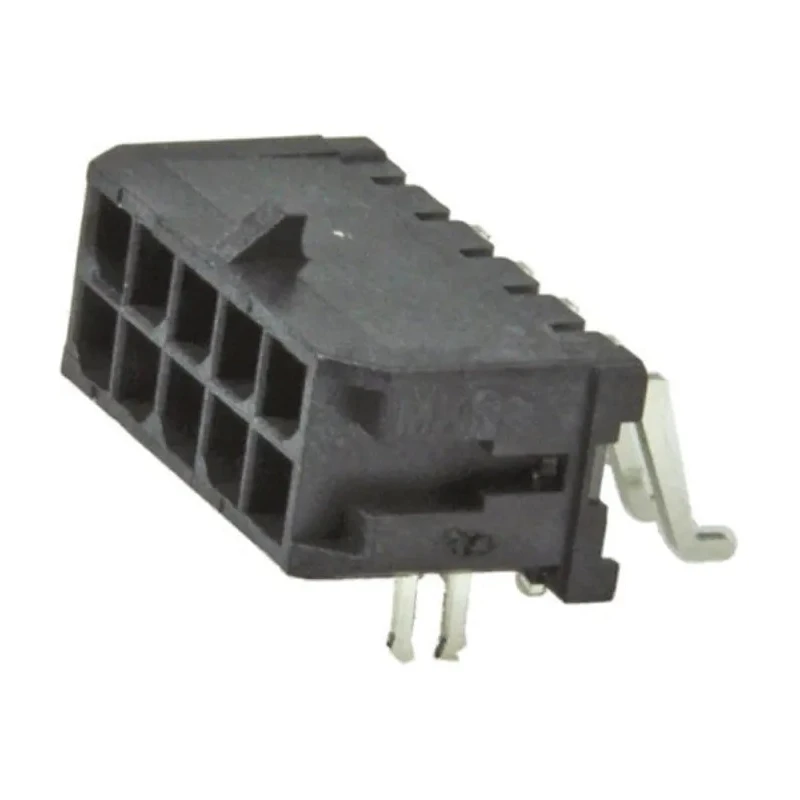

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 8 Contact 3 mm Pitch 2 Row Shrouded 43045-0815

Molex 43045-0815 Micro-Fit 3.0 Series Straight Surface PCB Header is a high-quality wire-to-board connector specifically designed for compact power distribution solutions. It features 8 male contacts arranged in 2 rows with a standard 3 mm pitch, providing a secure, shrouded connection to prevent accidental disconnection.

The housing is made of thermoplastic material that withstands high temperatures up to 265°C during the IR reflow soldering process, enabling compatibility with modern PCB assembly techniques. Brass contacts plated with tin enhance electrical performance and corrosion resistance. The connector supports a current rating of 5A and voltage rating of 250V, ideal for low to mid power applications.

This Micro-Fit 3.0 header includes positive latching via a locking ramp on the housing and metal press-fit retention clips that ensure reliable mechanical and electrical connection to the PCB. The dual beam terminals are fully isolated within the housing, reducing the risk of arcing and improving safety.

Suitable for various industrial and commercial sectors, including telecommunications, medical devices, consumer electronics, gaming terminals, solar power systems, and military equipment. Its robust design facilitates secure connections in demanding operating environments.

The connector operates effectively within a temperature range of -40°C to 105°C, making it adaptable for diverse environmental conditions. The contact termination is solder type, enhancing durability during use.

Compact 3 mm pitch dual row design for high-density PCB layouts. High current carrying capacity of 5A for mid-range power distribution. Thermoplastic UL 94V-0 rated housing suitable for IR reflow soldering. Surface mount with metal press-fit retention clips for strong PCB attachment.

Brass contacts with tin plating for good conductivity and corrosion resistance. Positive locking ramp housing prevents accidental mating disconnects. Operating temperature range from -40°C to 105°C allows usage in diverse environments.

Wire-to-board connector system for versatile electronic assembly designs. Choose Molex Micro-Fit 3.0 Series PCB Headers for reliable, compact, and versatile power connector solutions in electronics manufacturing and industrial applications.
