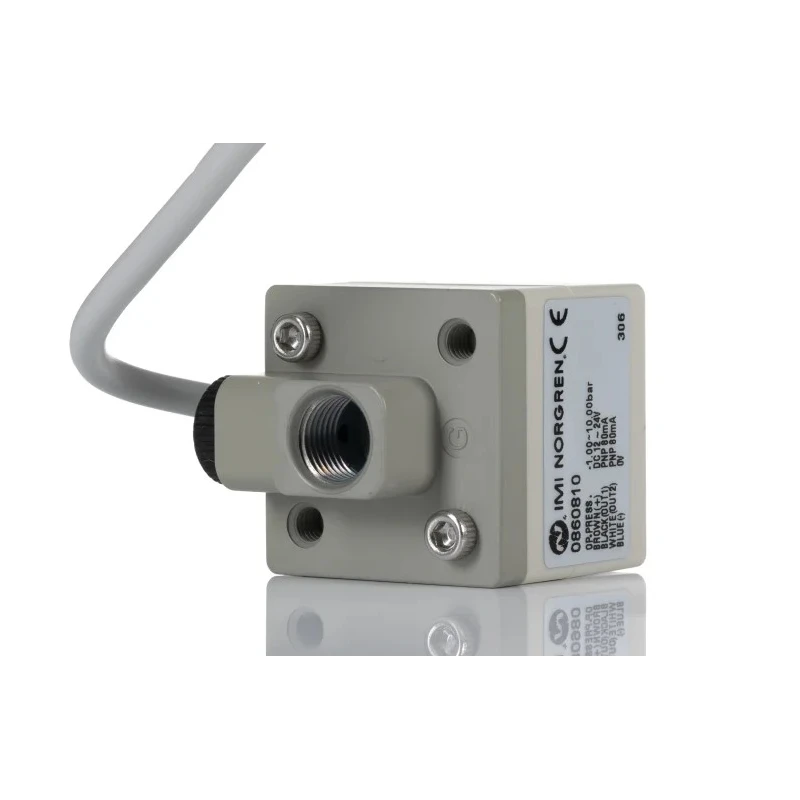

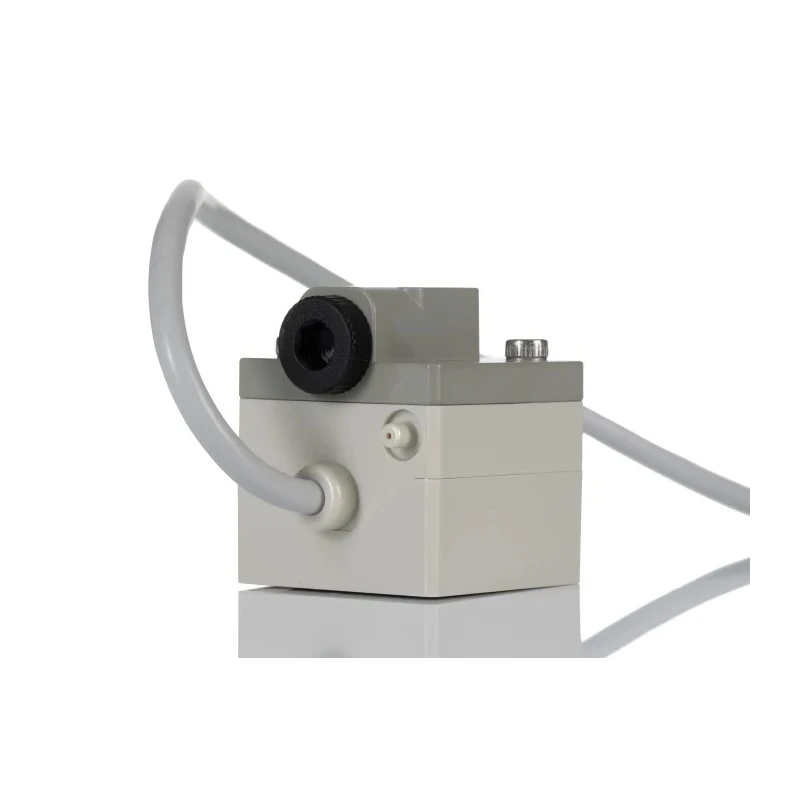

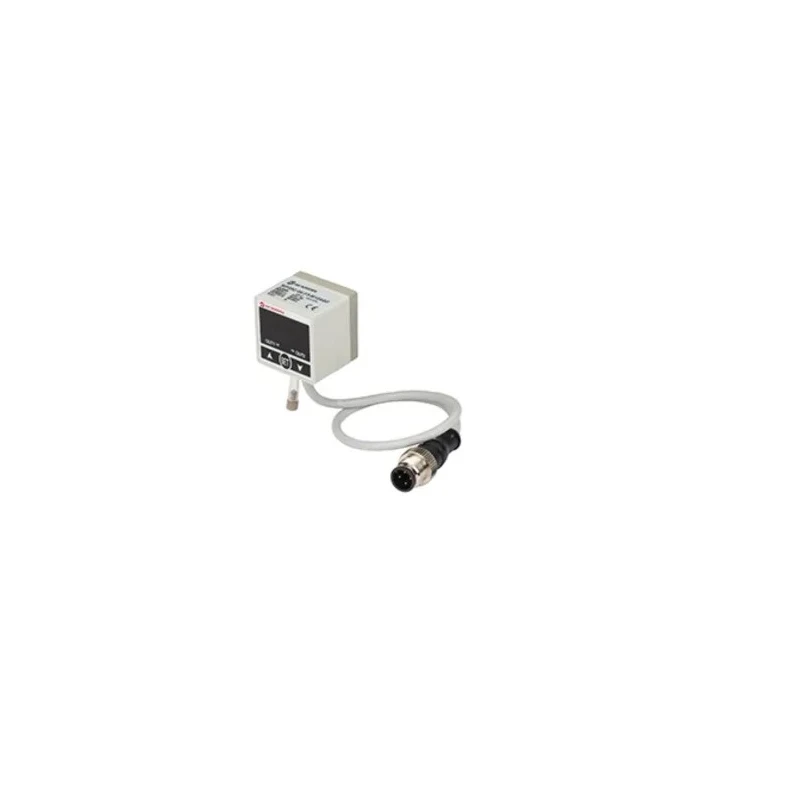

Norgren Pressure Switch Pneumatic Digital LED Display, Compressed Air, Polycarbonate Body, IP65, 0860810000000000

Norgren 0860810000000000 is a digital pneumatic pressure switch engineered for precise and reliable pressure monitoring in compressed air systems. This advanced pressure switch features a 3.5 digit LED display, enabling quick and accurate readouts of system pressure and switch status at a glance.

Designed with a polycarbonate body, the switch delivers excellent mechanical strength and impact resistance, making it suitable for demanding industrial environments such as breweries, bottling plants, chemical processing facilities, and research laboratories. Its IP65 rating ensures that the unit is protected against ingress of dust and water jets, supporting installation in exposed and wash-down areas.

Designed for accurate pressure monitoring with digital 3.5 digit LED display. Suitable for pneumatic systems handling filtered, lubricated, and non-lubricated compressed air. Robust polycarbonate body provides high impact resistance for industrial environments.

Features PNP and dual NPN switch output options for flexible system integration. Standard G1/8 port and metric thread size enable straightforward installation. Minimum set pressure of -1 bar and maximum set pressure of 145 psi support a wide range of applications.

Fast response time of approximately ±2.5 ms improves machine control. Shock proof up to 100g; vibration proof up to 88g (10 - 55Hz) for reliable operation. IP65 rated for protection against low-pressure water jets from all directions.

Operating temperature range from 0°C to +60°C and max operating temperature of 50°C.

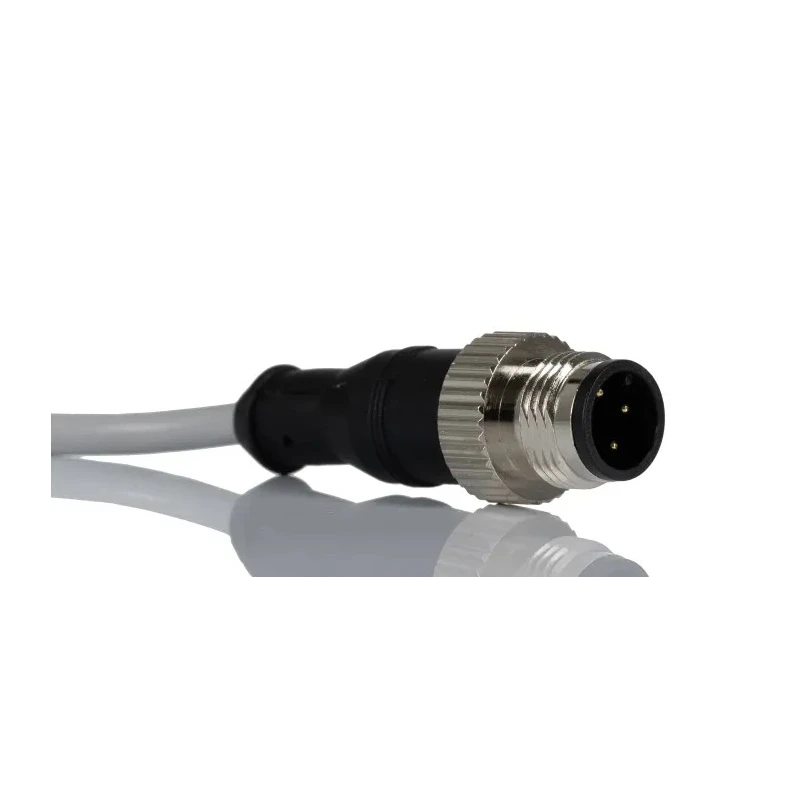

Electrical connection is made via M12X1, supporting compact and rapid installation. Flexible mounting positions allow this switch to adapt to varied equipment layouts. With a settable pressure range between -1 and 10 bar and a maximum rated tolerance of 145 psi, it can be used for both vacuum measurement and positive pressure control.

The switch benefits from fast response times and certified compliance with EN 61326-1. This ensures reliable operation where safety and process control are paramount. Typical applications include process automation, machinery control, laboratory pneumatic lines, industrial production lines, and chemical processing.

This Norgren switch is shock-proof up to 100g (980 m/s²) and vibration-proof to 88g at 10 - 55 Hz, suitable for integration in both stationary and mobile equipment. The polycarbonate body ensures a long service life even in harsh conditions where mechanical impact could otherwise compromise performance.
