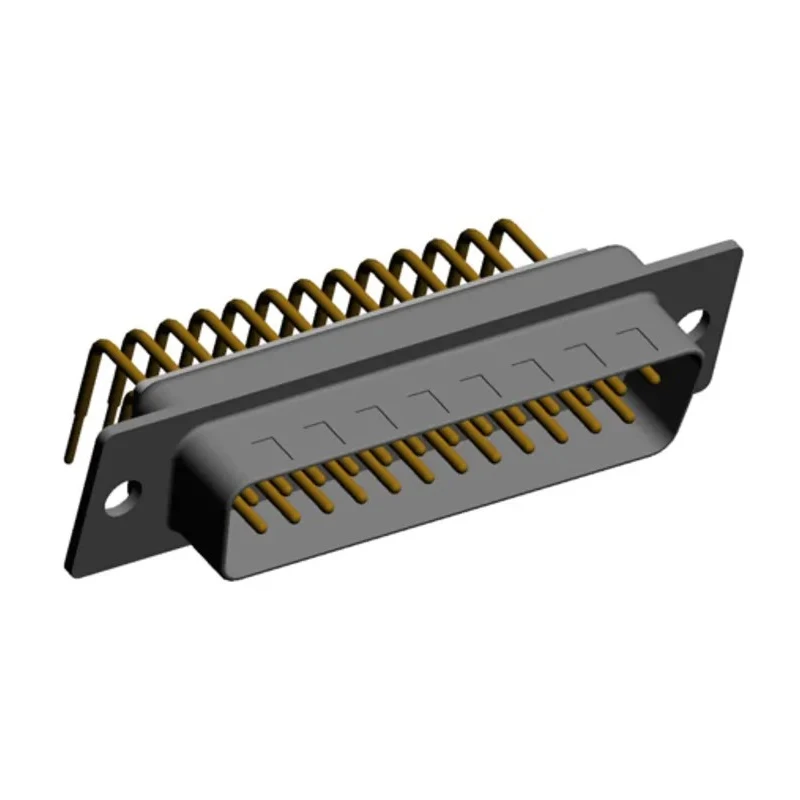

Norcomp SEAL-D 25 Way Right Angle 2.77 mm Pitch D-Sub Connector Male 774-E25-113R001

Norcomp 774-E25-113R001 SEAL-D 25 Way Right Angle 2.77 mm Pitch D-Sub Connector Male is a premium, IP67 sealed connector designed to provide reliable performance in demanding industrial and commercial environments.

This connector belongs to the SEAL-D series, offering IP67 ingress protection to ensure protection against dust and temporary submersion in water without increasing the physical size or footprint compared to standard D-Sub connectors, thus simplifying device upgrades to meet stringent environmental standards.

The connector features a nickel-plated steel shell with ground indents for improved shielding and grounding, highly reliable screw-machined contacts constructed of brass and plated with gold to ensure excellent electrical contact and longevity.

With 25 contacts rated up to 5A each, and a pitch of 2.77 mm, it is perfect for applications requiring stable and secure signal connections. The right angle orientation facilitates efficient PCB space utilization.

Operating temperature ranges from -50°C to 100°C highlight its suitability for rugged outdoor and industrial uses including hand-held computers, remote sensors, medical equipment, transmitters, and portable generation devices.

The connector supports a maximum current of 5A for each contact. It features a durable nickel-plated steel housing for enhanced shielding and grounding. Contacts are made of brass and plated with gold for superior conductivity and corrosion resistance.

The device meets IP67 sealing standards, making it suitable for harsh environments. Operating temperature ranges from -50°C to 100°C, ensuring stable performance in varied conditions. Designed for solder termination and compatible with standard D-sub footprints.

Its right angle orientation allows for space-efficient PCB mounting. Ideal for industrial, medical, instrumentation, and outdoor electronic applications.

Applications for the Norcomp SEAL-D series include industrial and medical devices, outdoor instrumentation, water and gas metering, emergency beacon systems, and marine electronics where exposure to dust, moisture, and mechanical stresses is common.
