| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.6mm |
| Length | 4.1mm |
| Model | BZX85C6V2-TAP |
| Mount Type | Through Hole |
| Series | BZX85 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 35mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 6.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 4Ω |

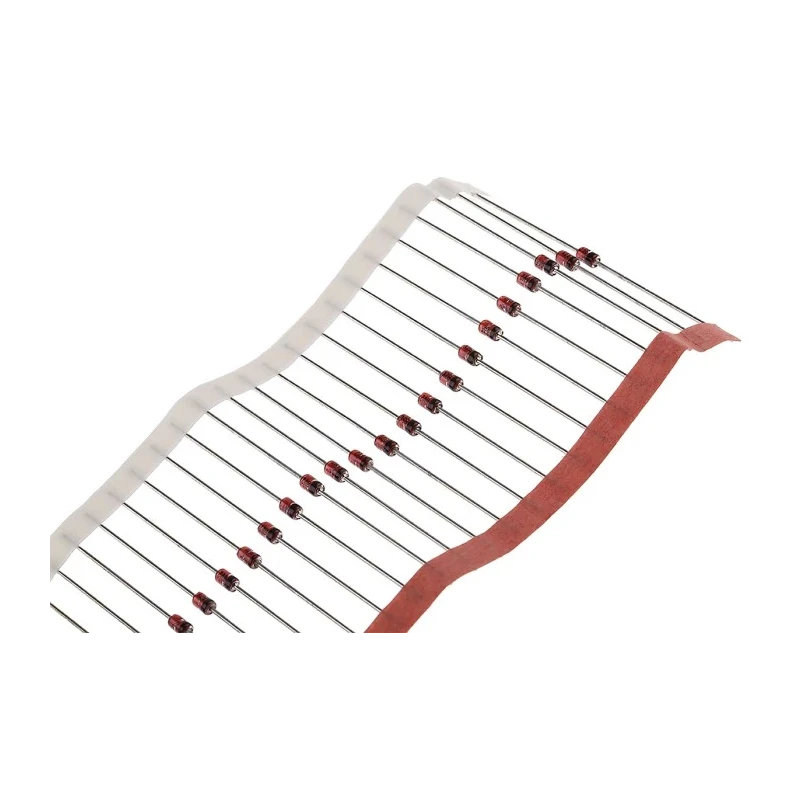

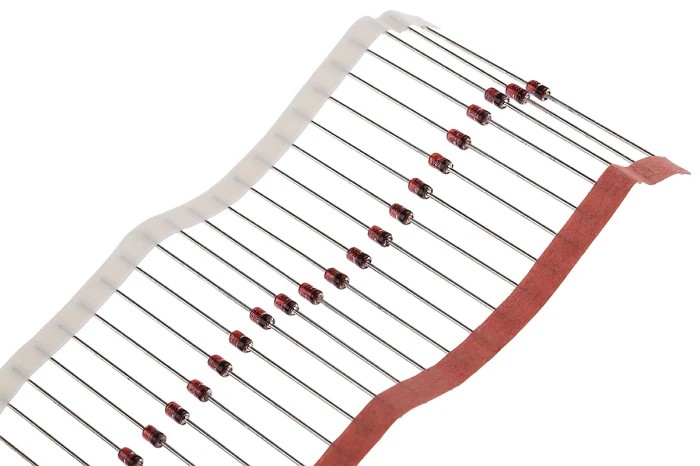

Vishay BZX85C6V2-TAP is a silicon planar Zener diode designed for voltage regulation, with a nominal Zener voltage of 6.2 V and maximum power dissipation of 1.3 W. Packaged in a 2-pin DO-41 through hole package, this component is ideal for use in stabilising and clipping circuits where precise voltage control is required.
Featuring a low maximum Zener impedance of 4 ohms and tested at a 35 mA test current, it delivers stable performance with a voltage tolerance of ±6%. Its maximum reverse leakage current is only 1 microampere, ensuring minimal leakage during operation.
The diode can operate reliably within a wide temperature range from -55°C to 175°C, making it suitable for both industrial and automotive environments. It complies with the rigorous automotive standard AEC-Q101 for quality and reliability.
The compact physical dimensions of 4.1 mm length and 2.6 mm height make it an excellent choice for space-constrained PCB designs. The through hole 2-pin mounting style simplifies assembly and soldering procedures.
This Vishay Zener diode series BZX85 is commonly used in various electronic applications including power regulation, discrete semiconductors, and electronic components where precise voltage clamping or reference is needed.
This Zener diode offers a nominal voltage regulation at 6.2 volts with ±6% tolerance. It supports maximum continuous power dissipation of 1.3 watts at the rated test current. The device complies with automotive standard AEC-Q101, ensuring reliability for automotive and industrial projects.
Compact DO-41 package enables easy integration in through hole PCB designs. Operates over extended temperature ranges from -55°C to 175°C. Negligible reverse leakage current enhances device efficiency and stability. Low Zener impedance contributes to effective voltage regulation performance.
Typical voltage temperature coefficient of 0.03% per degree Celsius for stable voltage output under temperature changes.
This product is an essential component for industrial electronic, power, and connector semiconductor applications. Users can rely on its proven performance in electronic circuits requiring stable voltage precision and protection.
