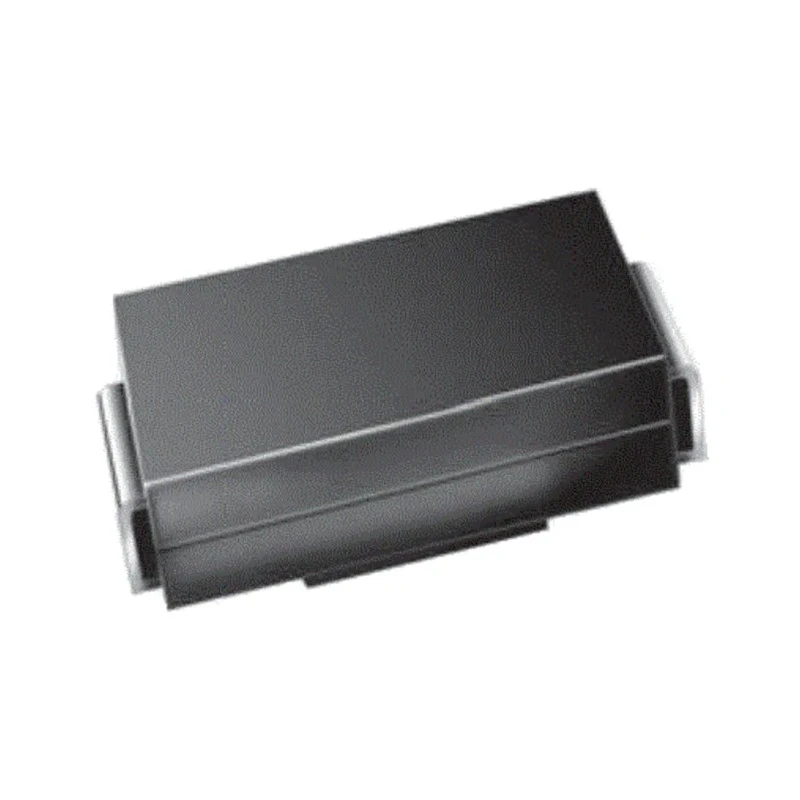

Vishay Zener Diode Single 39V 1W Surface Mount 2-Pin DO-214AC (SMA) SML4754A-E3/61

Free Delivery in India | Lowest Global Shipping Charges

Vishay Zener Diode Single 39V 1W Surface Mount 2-Pin DO-214AC (SMA) SML4754A-E3/61

Name: Vishay Zener Diode Single 39V 1W Surface Mount 2-Pin DO-214AC (SMA) SML4754A-E3/61
Brand: Vishay
SKU: 218060
Price: 0.26 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.29mm
Length	4.5mm
Model	SML4754A-E3/61
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	DO-214AC (SMA)
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	6.5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	39V
Zener Type	General Purpose
Maximum Zener Impedance	60Ω

Key Features

This Zener diode has a nominal voltage of 39 volts and a power dissipation of 1 watt.
The device features a maximum Zener impedance of 60 ohms for stable voltage regulation.
It supports a test current of 6.5 milliamps with a 5% voltage tolerance.
The diode package type is surface mount DO-214AC (SMA) with 2 pins suitable for compact PCB designs.
Operating temperature ranges from -65°C to 150°C, making it suitable for various industrial environments.
The diode meets the automotive AEC-Q101 standard for enhanced reliability.
Maximum reverse leakage current is low at 5 microamps, ensuring minimal power loss.

Product Description

Vishay SML4754A-E3/61 is a single-element Zener diode designed for voltage regulation and protection applications. Rated at 39 volts and 1 watt maximum power dissipation, it is packaged in a compact surface-mount DO-214AC (SMA) 2-pin configuration suitable for automated PCB assembly.

This device offers a nominal Zener voltage of 39V with a tolerance of ±5%, maintaining voltage stability under varying current loads, aided by its maximum Zener impedance of 60 ohms. Tested at a current of 6.5mA, this diode ensures precise voltage regulation in electronic circuits.

The diode's operating temperature range of -65°C to +150°C enables robustness for industrial and automotive electronics, complying with the AEC-Q101 automotive reliability standard. It also exhibits a low maximum reverse leakage current of 5μA, thereby minimizing energy loss and heat generation.

Commonly used in power supply circuits, voltage reference modules, and overvoltage protection, this Zener diode is ideal for industrial, automotive, manufacturing, and HVAC electronic systems requiring efficient voltage stabilization.

This Zener diode has a nominal voltage of 39 volts and a power dissipation of 1 watt. The device features a maximum Zener impedance of 60 ohms for stable voltage regulation. It supports a test current of 6.5 milliamps with a 5% voltage tolerance.

The diode package type is surface mount DO-214AC (SMA) with 2 pins suitable for compact PCB designs. Operating temperature ranges from -65°C to 150°C, making it suitable for various industrial environments. The diode meets the automotive AEC-Q101 standard for enhanced reliability.

Maximum reverse leakage current is low at 5 microamps, ensuring minimal power loss.

Set your electronic circuits for precise voltage regulation with Vishay SML4754A-E3/61, a reliable choice for advanced industrial and automotive applications. Explore more professional semiconductor components at EnvMart.
