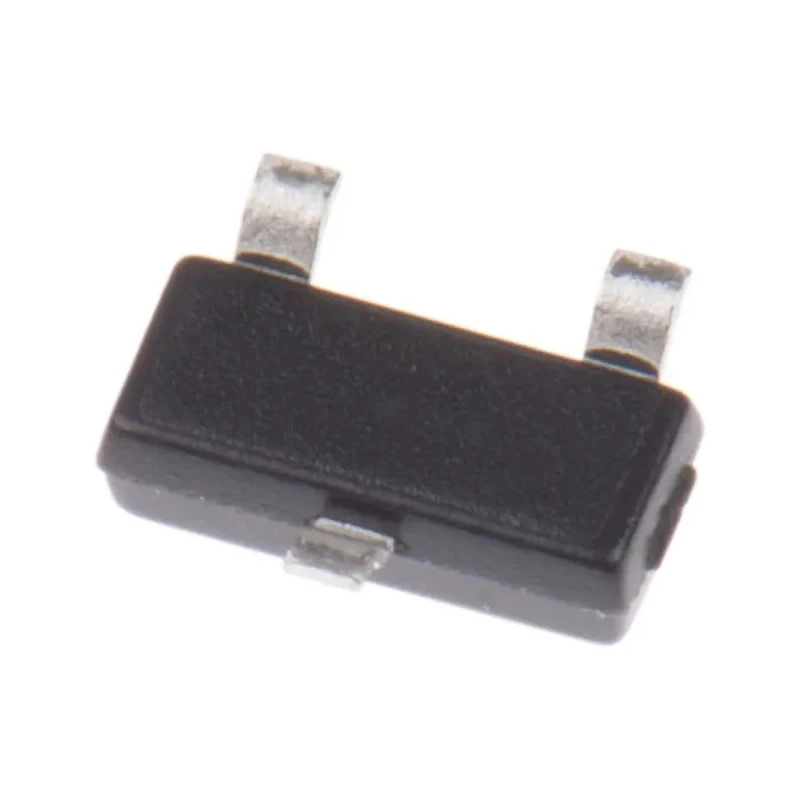

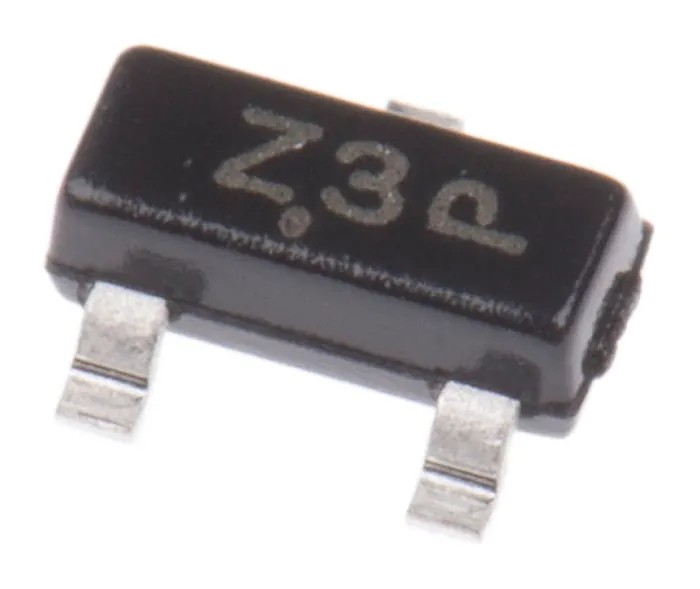

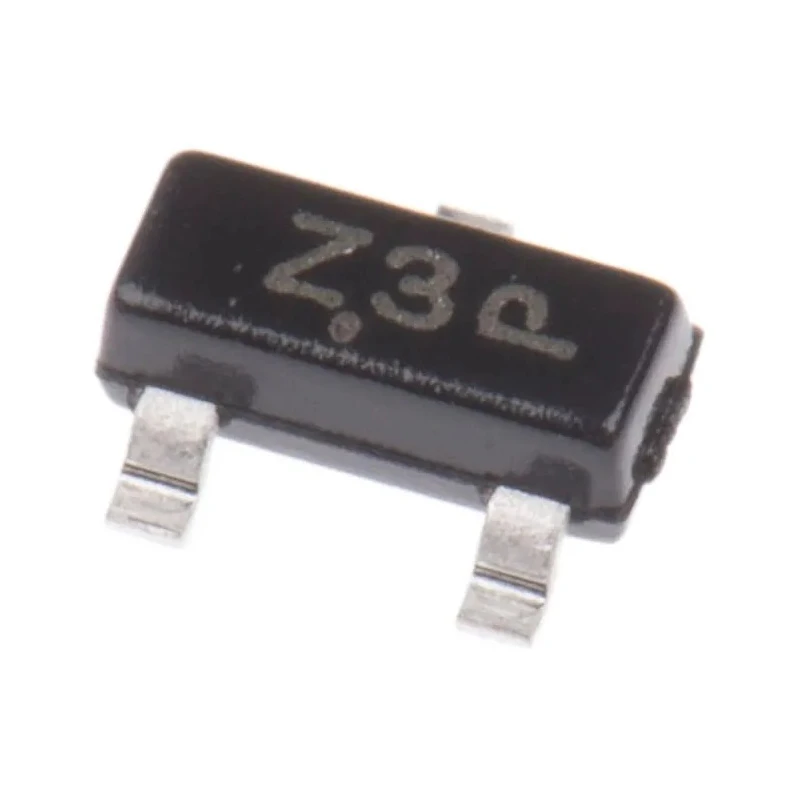

onsemi 5.6 V Zener Diode Surface Mount 300 mW 3-Pin SOT-23 BZX84C5V6LT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.11mm |
| Length | 3.04mm |
| Model | BZX84C5V6LT1G |
| Width | 2.64mm |
| Mount Type | Surface |
| Series | BZX84CxxxLT1G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 40Ω |
| Typical Voltage Temperature Coefficient | 0.25mV/°C |
| Surface Mount case | SOT-23 |
| Nexperia 1, 5.6 V Zener Diode, Single 300 mW 5 % Surface 2-Pin UMDBrand | Nexperia |
| 5.6V Zener diode,BZX84C5V6 300mWBrand | ON Semiconductor |
Key Features
- This diode offers a nominal Zener voltage of 5.6 V with ±7% tolerance.
- Designed for use in voltage regulation with a typical test current of 5 mA.
- The package type is compact SOT-23 suitable for surface mounting on PCBs.
- Maximum power dissipation of 300 mW supports moderate power applications.
- Features low maximum reverse leakage current of 1 μA ensuring energy efficiency.
- Operating temperature range spans from -65°C to 150°C for robust performance.
- The device has a maximum Zener impedance of 40 Ω providing stable voltage regulation.
- Physical dimensions are 3.04 mm length, 2.64 mm width, and 1.11 mm height.
Product Description
onsemi BZX84C5V6LT1G is a high-reliability 5.6 V Zener Diode designed for surface mount applications in the compact 3-pin SOT-23 package. It delivers a nominal Zener voltage of 5.6 V and supports a maximum power dissipation of 300 mW, making it ideal for voltage regulation and stabilization in electronic circuits.
This diode features a ±7% Zener voltage tolerance and a maximum Zener impedance of 40 Ω, ensuring consistent voltage regulation under varied load conditions. The maximum reverse leakage current is limited to 1 μA, which reduces energy losses and enhances overall circuit efficiency.
Its wide operating temperature range from -65°C to 150°C guarantees reliable performance under harsh industrial and commercial environments. The package dimensions of 3.04 mm (length), 2.64 mm (width), and 1.11 mm (height) facilitate compact PCB designs.
Typical use cases include voltage regulation in power supplies, reference voltage applications, and protection circuits in industrial, computing, telecommunications, and consumer electronics. The surface mount SOT-23 package supports automated PCB assembly and manufacturing efficiency.
This diode offers a nominal Zener voltage of 5.6 V with ±7% tolerance. Designed for use in voltage regulation with a typical test current of 5 mA. The package type is compact SOT-23 suitable for surface mounting on PCBs.
Maximum power dissipation of 300 mW supports moderate power applications. Features low maximum reverse leakage current of 1 μA ensuring energy efficiency. Operating temperature range spans from -65°C to 150°C for robust performance.
The device has a maximum Zener impedance of 40 Ω providing stable voltage regulation. Physical dimensions are 3.04 mm length, 2.64 mm width, and 1.11 mm height. Suitable for electronic circuit applications requiring reliable voltage regulation and protection.
Explore a broad range of electronic components and power regulation devices in the EnvMart catalog to find the best fit for your circuitry needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a nominal Zener voltage of 5.6 V with a tolerance of ±7%.
This model supports a maximum power dissipation of 300 mW, suitable for moderate power applications.
The operating temperature range spans from -65°C to 150°C, allowing for reliable performance in various environments.
The maximum reverse leakage current is limited to 1 μA, which helps improve energy efficiency.
The physical dimensions are 3.04 mm in length, 2.64 mm in width, and 1.11 mm in height.
It comes in a compact SOT-23 package, designed for surface mounting on PCBs.
The maximum Zener impedance is 40 Ω, ensuring stable voltage regulation under varying load conditions.
The typical test current is 5 mA, which is used for evaluating its performance.
This diode features a 3-pin configuration, suitable for various circuit designs.
It is suitable for voltage regulation in power supplies, reference voltage applications, and protection circuits.
This model is part of the BZX84CxxxLT1G series of Zener diodes.
The diode is manufactured in India.
