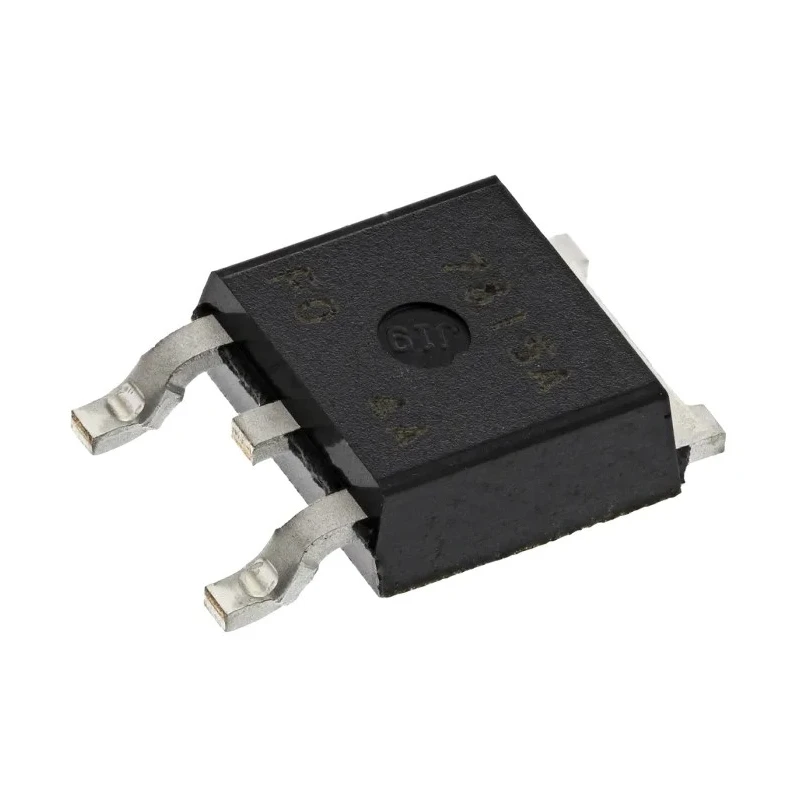

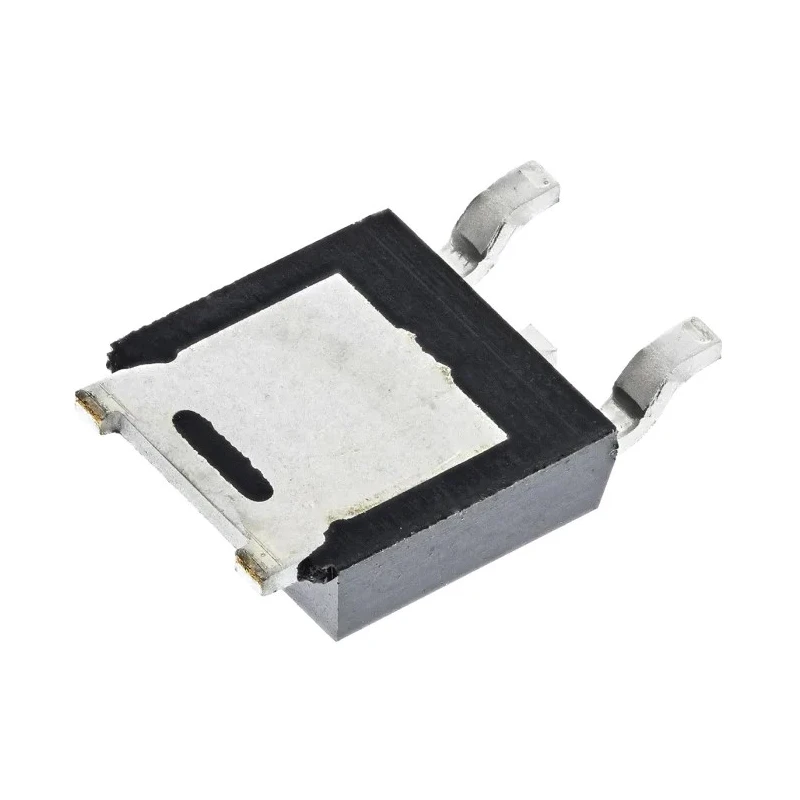

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator 15V 1.5A TO-252 3-Pin NJM7815DL1A-TE1

Nisshinbo Micro Devices NJM7815DL1A-TE1 is a 5-Channel linear voltage regulator designed to deliver a fixed output voltage of 15 volts and output current of 1.5 amperes. Packaged in a compact TO-252 3-Pin surface mount device, this regulator is optimized for power management in electronic circuits.

This voltage regulator operates with a positive polarity and incorporates internal short circuit current limiting as well as thermal overload protection, which safeguards the device against potential damages in demanding industrial and commercial applications. Its design ensures high ripple rejection, making it suitable for delivering stable power in sensitive electronics.

The NJM7815DL1A-TE1 supports input voltages up to 35 V and operates reliably within a temperature range of -40°C to 85°C, making it appropriate for use in harsh environments typically found in industrial automation, telecommunications, and power supply systems.

The device is RoHS compliant, reflecting adherence to environmental regulations. Its compact dimensions of 6.54mm length, 6.04mm width, and 2.29mm height, combined with the surface mount TO-252 package, enable easy integration onto circuit boards with space constraints.

Applications include on-card regulation, power management in semiconductor systems, instrumentation, and embedded systems requiring fixed 15V power rails with up to 1.5A current output.

Linear regulator type designed for fixed voltage output. Stable 15V output with positive polarity. 1.5A output current capacity suitable for moderate power loads. Thermal overload and current limiting included for enhanced safety.

Compact TO-252 3-Pin surface mount package. Wide operating temperature range from -40°C to 85°C. RoHS compliant to meet environmental standards. Good ripple rejection ensures clean power delivery. Input voltage capability up to 35V.
