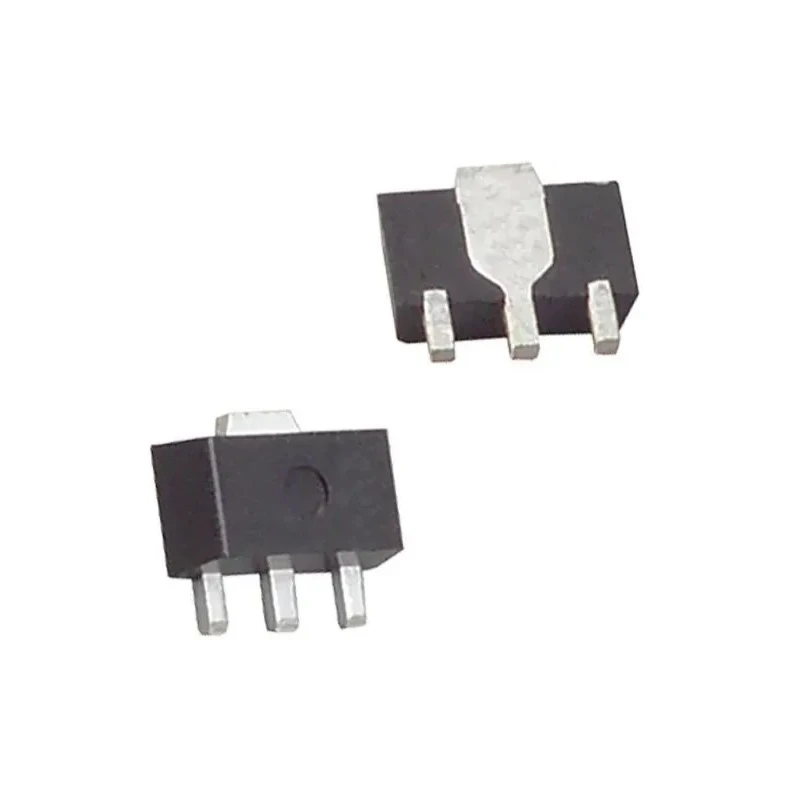

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 15V 100mA 3-Pin NJM78L15UA-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM78L15UA-TE1 |
| Mount Type | Surface |
| Series | NJM78L00 |
| Output Current | 100mA |
| Maximum Operating Temperature | 85°C |
| Load Regulation | 150 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 15V |
| Quiescent Current | 6mA |
| Line Regulation | 300 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- Features internal current limiting and thermal shutdown for enhanced protection.
- Employs bipolar technology for excellent ripple rejection.
- Operating temperature ranges from -40°C to 85°C.
- Line regulation of 300 mV and load regulation of 150 mV ensure voltage stability.
- Quiescent current is low at 6mA, optimizing power efficiency.
- Designed with a robust planar epitaxial process for durability.
- Compliance with RoHS standards guarantees environmental safety.
- Maximum input voltage rating is 35V ensuring reliable operation under varying supply conditions.
Product Description
Nisshinbo Micro Devices NJM78L15UA-TE1 is a reliable 1-channel linear voltage regulator designed for efficient and stable power management in electronic circuits. It delivers a fixed 15V output voltage at a maximum output current of 100mA, suitable for various electronic applications.
This device incorporates robust internal current limiting, thermal shutdown, and safe area compensation, making it highly durable and resistant to damage caused by overload or overheating. Its bipolar technology offers excellent ripple rejection, ensuring clean voltage output critical for sensitive electronic systems.
The regulator supports a wide operating temperature range from -40°C to 85°C, making it suitable for use in industrial, laboratory, and commercial electronics environments. It features a low quiescent current of 6mA, which helps enhance energy efficiency in battery-powered and low-power devices.
Mounting is easy with its 3-pin surface mount configuration, simplifying integration into printed circuit boards. The device complies with the RoHS standard, affirming its adherence to environmental safety guidelines.
Typical applications include power management in semiconductors, electronics components, and various electronic devices requiring regulated 15V voltage supply. Its maximum input voltage of 35V ensures stable performance under varying input conditions.
Internal current limiting and thermal shutdown enhance device safety. Bipolar technology provides excellent ripple rejection for cleaner output. Wide operating temperature range from -40°C to 85°C supports diverse environments.
Low quiescent current of 6mA contributes to energy efficiency. Surface mount design enables convenient PCB assembly. RoHS compliant ensuring environmental protection standards. Maximum input voltage of 35V ensures reliable regulation.
This Voltage Regulator from Nisshinbo Micro Devices is ideal for use in industrial instruments, laboratory equipment, and commercial electronics requiring robust and precise voltage control. Explore more power management ICs and semiconductor solutions in EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a fixed output voltage of 15V.
The maximum output current is 100mA.
It has a maximum input voltage rating of 35V.
The device operates within a temperature range of -40°C to 85°C.
It features a 3-pin surface mount configuration for easy integration into PCB designs.
The line regulation is 300 mV, and the load regulation is 150 mV, ensuring voltage stability.
The quiescent current is low at 6mA, which helps optimize power efficiency.
Yes, it complies with RoHS standards, ensuring environmental safety.
It employs bipolar technology, which provides excellent ripple rejection for cleaner output.
It includes internal current limiting and thermal shutdown for enhanced protection against overload and overheating.
This voltage regulator is suitable for power management in semiconductors and various electronic devices requiring a regulated 15V supply.
The country of origin for this product is India.
