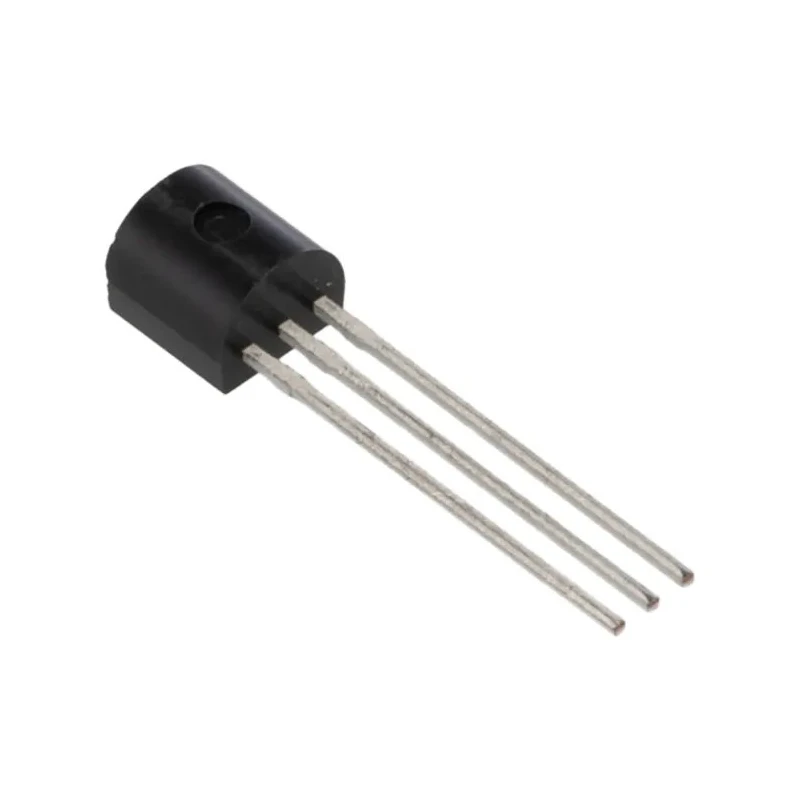

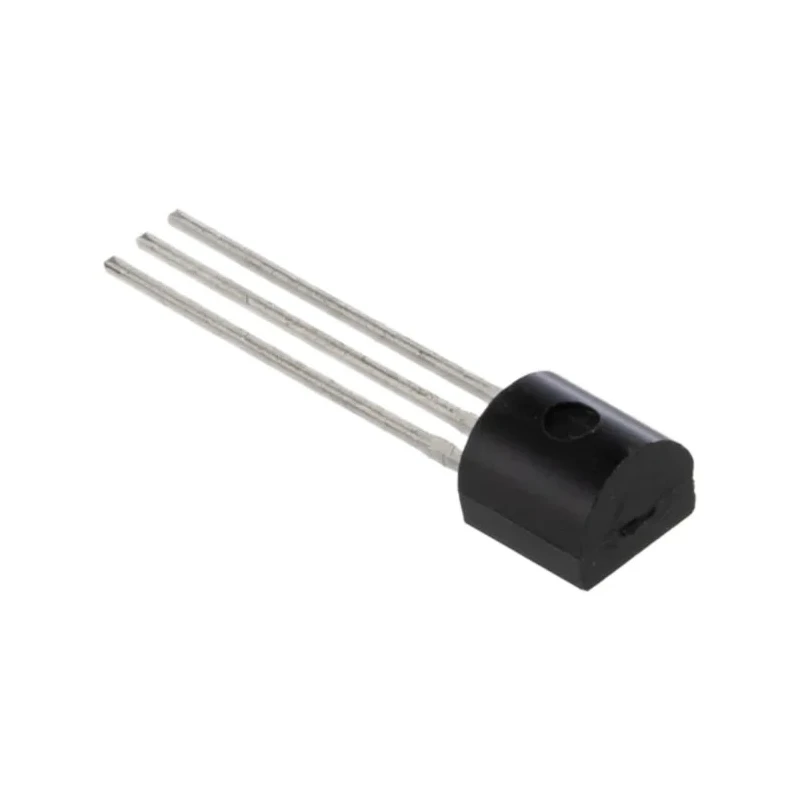

Microchip 5-Channel Low Dropout Voltage Regulator, 250 mA, 3.3V, TO-92 3-Pin MCP1700

Microchip MCP1700 is a 5-channel low dropout (LDO) voltage regulator featuring a fixed output voltage of 3.3 volts and capable of delivering up to 250 mA output current. Packaged in a compact TO-92 3-pin through-hole form factor, it offers a reliable power management solution for industrial, automotive, and consumer electronic applications.

This voltage regulator is engineered for applications demanding low dropout voltage and efficient voltage regulation. Its positive polarity design and ultra-low quiescent current of 1.6 microamperes help conserve power in battery-operated devices. The device supports a wide input voltage range from 2.3 volts to a maximum of 6 volts, making it compatible with various power sources.

The MCP1700 achieves excellent line regulation at 0.75 %/V and load regulation of 1 %, thereby maintaining a stable output voltage despite input or load variations. It is qualified under the automotive standard AEC-Q100, ensuring high reliability in automotive environments. Its operational temperature range from -40°C to 125°C enables durable performance under varied thermal conditions.

Physically, the compact TO-92 package with dimensions of 4.71 mm length, 4.62 mm height, and 3.62 mm width simplifies integration into printed circuit boards, enhancing space efficiency. The device is RoHS compliant to meet environmental safety standards.

Features fixed output voltage of 3.3 volts suitable for stable power supply applications. Supports output current up to 250 milliamperes with low dropout voltage. Through-hole mount type ensures easy installation and mechanical stability.

Equipped with positive polarity and low quiescent current of 1.6 microamperes. Compact TO-92 3-pin package with dimensions 4.71 mm length, 4.62 mm height, and 3.62 mm width. Wide operating temperature range from -40°C to 125°C for reliable performance in harsh environments.

Complies with RoHS standards and automotive standard AEC-Q100 qualifier. Line regulation of 0.75 %/V and load regulation of 1 % ensure voltage stability under varying conditions.

Ideal for industrial, automotive, laboratory, and consumer electronic designs requiring efficient power management and voltage regulation. The MCP1700 simplifies power supply designs, contributing to improved system stability and battery life.
