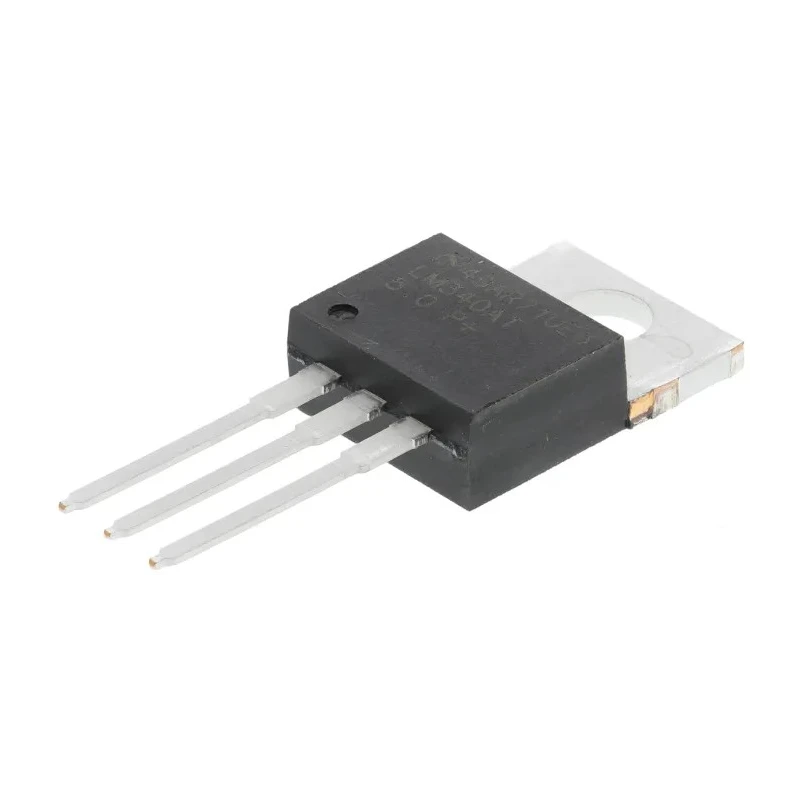

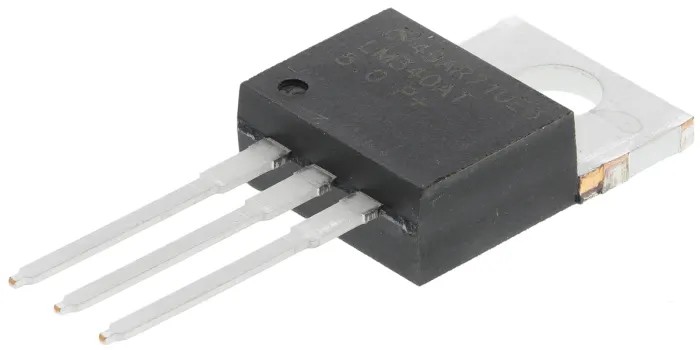

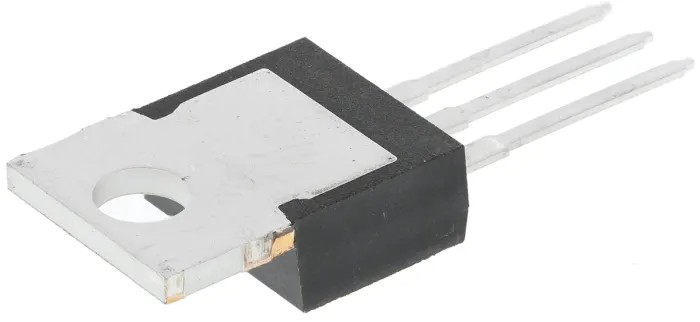

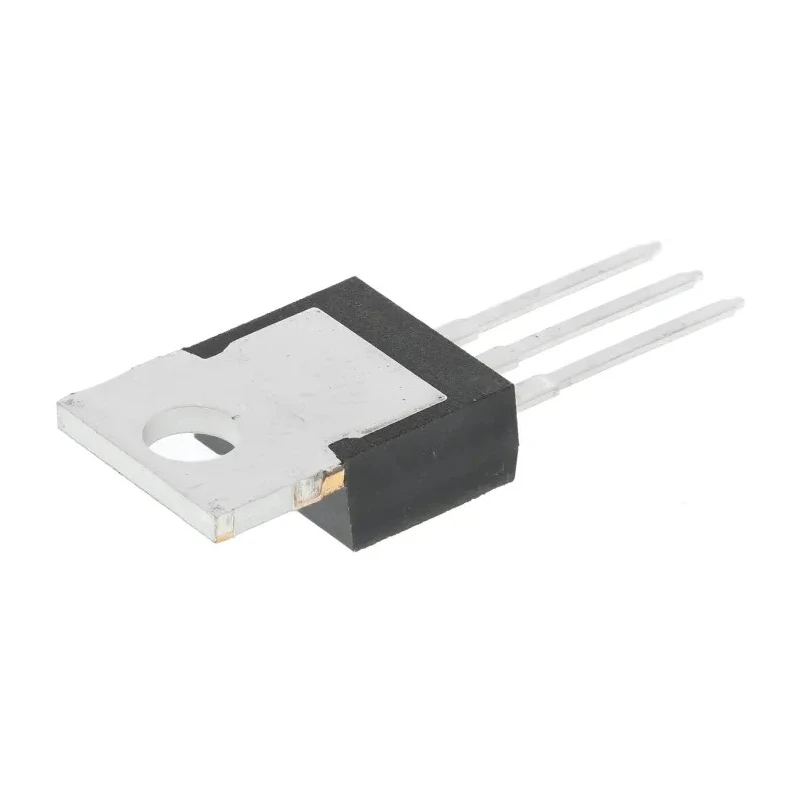

Texas Instruments Voltage Regulator LM340AT-5.0/NOPB TO-220 3-Pin 35V 1A Positive Polarity
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM340AT-5.0/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM340 |
| Output Current | 1 A LM340 Series |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6mA |
| Minimum Input Voltage | 7.5V |
| Pin Count | 3 |
Key Features
- Regulator supports maximum input voltage up to 35V and minimum input voltage of 7.5V.
- Provides fixed output voltage of 5.0V with a maximum output current of 1 Ampere.
- Features low quiescent current of 6mA ensuring efficient operation.
- Designed with robust internal current limiting and thermal shutdown protections.
- Compact dimensions of 10.16mm length, 8.89mm height, and 4.7mm width for through-hole mounting.
- Suitable for use in industrial and electronic power management applications requiring stable 5V output.
- Operating temperature range allows use up to 125°C.
- Positive polarity regulator compatible with breadboards and custom PCB designs.
Product Description
Texas Instruments LM340AT-5.0/NOPB is a three-terminal positive voltage regulator designed for fixed 5V output voltage regulation. Housed in a TO-220 through-hole package, it ensures ease of mounting and reliable mechanical stability.
This voltage regulator supports a wide input voltage range from 7.5V to 35V and is capable of delivering a continuous output current of 1A, making it suitable for a variety of power management tasks in electronics and industrial equipment.
The device incorporates internal current limiting, safe area compensation, and thermal shutdown features, which enhance system reliability by protecting against overload and overheating conditions during operation.
With a low quiescent current of 6mA, the LM340AT-5.0/NOPB operates efficiently for continuous use, delivering precise and stable voltage ideal for microcontroller power supplies, instrumentation, and embedded systems requiring fixed 5V power rails.
Its compact form factor with length 10.16mm, height 8.89mm, and width 4.7mm combined with through-hole mounting makes it suitable for prototyping and production PCB usage. Fixed positive voltage regulator for 5V output. Wide input voltage range from 7.5V to 35V.
Maximum output current capacity of 1 Ampere. Low quiescent current of 6mA for efficient operation. Internal current limiting and thermal shutdown protections. TO-220 3-pin package for easy mounting and thermal management.
Operating temperature up to 125°C suitable for industrial environments. Ideal for embedded systems, industrial power supplies, and general electronic applications.
As a trusted component from Texas Instruments, the LM340AT-5.0/NOPB voltage regulator ensures reliable power delivery and robust performance. Browse the Electronics & Electricals > Semiconductor > Voltage Regulator category on EnvMart for related power management solutions and Texas Instruments components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5.0V and can deliver a maximum output current of 1 Ampere.
The LM340AT-5.0/NOPB supports a wide input voltage range from 7.5V to 35V.
It has compact dimensions of 10.16mm in length, 8.89mm in height, and 4.7mm in width.
This unit is housed in a TO-220 package, designed for through-hole mounting.
It features internal current limiting and thermal shutdown protections to enhance system reliability.
The LM340AT-5.0/NOPB has a low quiescent current of 6mA, ensuring efficient operation.
It can operate at a maximum temperature of 125°C, making it suitable for industrial environments.
This voltage regulator is suitable for embedded systems, industrial power supplies, and general electronic applications requiring stable 5V output.
This model features a 3-pin configuration.
It is a positive polarity voltage regulator.
This unit is part of the LM340 series of voltage regulators.
The country of origin for this voltage regulator is India.
