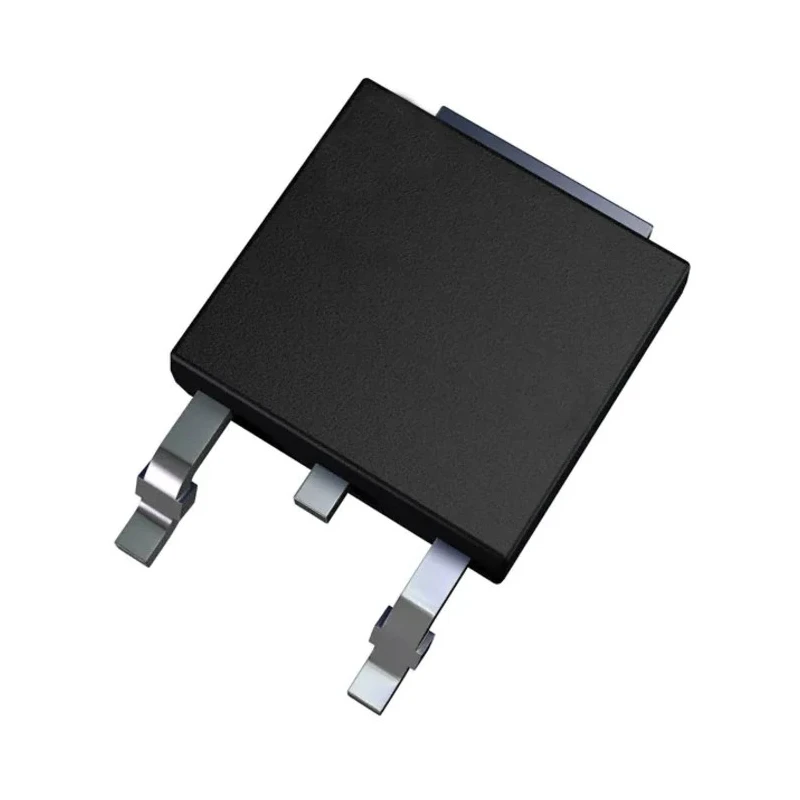

Nisshinbo Micro Devices 1-Channel Low Dropout Voltage Regulator 3.3V 300mA Surface Mount 5-Pin NJW4184DL1-33B-TE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJW4184DL1-33B-TE2 |
| Mount Type | Surface |
| Series | NJW4184 |
| Output Current | 300mA |
| Maximum Operating Temperature | 85°C |
| Load Regulation | 0.01 %/mA |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 3.3V |
| Quiescent Current | 18μA |
| Line Regulation | 0.05 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
| Pin Count | 5 |
Key Features
- Low dropout voltage with high voltage capability up to 35V input.
- Maintains precise output voltage with line regulation of 0.05 %/V.
- Load regulation at 0.01 %/mA ensures stable output under varying loads.
- Extends device life with a low quiescent current of 18μA.
- Operates reliably within a temperature range from -40°C to 85°C.
- Compact surface mount package with 5 pins for easy PCB integration.
- Compliant with RoHS standards for environmental safety.
- Suitable for car accessories, battery powered equipment, and industrial supplies.
Product Description
Nisshinbo Micro Devices NJW4184DL1-33B-TE2 is an advanced 1-channel low dropout voltage regulator capable of delivering up to 300mA output current at a fixed 3.3V output voltage. This surface mount device uses a 5-pin package optimized for compact PCB layouts and integrates a low quiescent current design to minimize power consumption, operating efficiently between -40°C and +85°C.
The regulator accepts input voltages from 4V up to a maximum of 35V, ensuring compatibility with a wide range of power sources. Its line regulation of 0.05 %/V and load regulation of 0.01 %/mA guarantee precise voltage control, which is vital for sensitive electronic components.
Designed with automotive and industrial applications in mind, the NJW4184DL1-33B-TE2 excels in battery equipment, car accessories, and other electronic devices requiring stable power management. It supports low ESR capacitors to enhance system stability and noise suppression.
The device complies with RoHS environmental standards, ensuring safe and eco-friendly deployment in electronic systems. Low dropout voltage with high voltage input capability. Stable 3.3V output with precise regulation. Low quiescent current reduces power wastage.
Wide operating temperature suitable for harsh environments. Surface mount 5-pin package enables compact device design. Compliant with environmental RoHS standards. Designed for automotive and industrial electronic applications.
Supports low ESR capacitor for enhanced performance.
This Nisshinbo Micro Devices voltage regulator NJW4184DL1-33B-TE2 is ideal for engineers and manufacturers seeking reliable power management integrated circuits for electronics and automotive systems. Explore more Voltage Regulators and power management ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver an output current of up to 300mA.
It accepts input voltages from 4V up to a maximum of 35V.
The output voltage is fixed at 3.3V.
The line regulation is 0.05 %/V and the load regulation is 0.01 %/mA, ensuring precise voltage control.
The quiescent current is 18μA, which helps to minimize power consumption.
It operates reliably within a temperature range from -40°C to 85°C.
This model features a surface mount design with a 5-pin package.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for automotive applications, battery-powered equipment, and industrial supplies.
The maximum operating temperature is 85°C.
The minimum input voltage required is 4V.
It supports low ESR capacitors, which enhance system stability and noise suppression.
