onsemi 5-Channel Linear Voltage Regulator 1 A 5V TO-220 3-Pin MC7805BTG

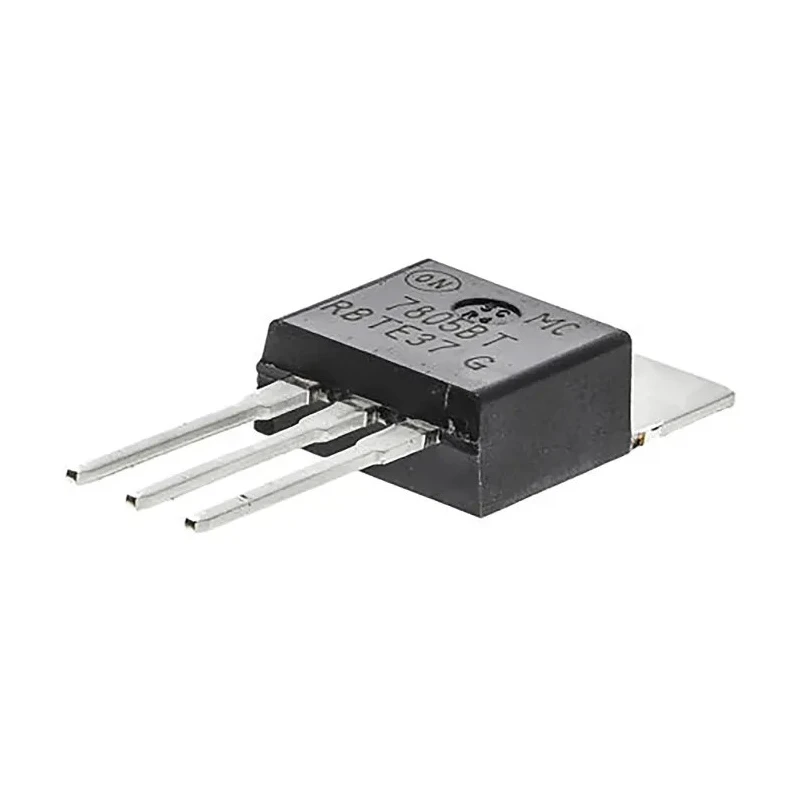

onsemi MC7805BTG is a 5-channel linear voltage regulator that offers a fixed 5V output with 1A output current capacity housed in a TO-220 3-pin package. This linear regulator belongs to the MC7805 family of monolithic integrated circuits, engineered for stable fixed-voltage regulation suitable for a wide array of local and on-card regulation applications.

This device incorporates internal thermal overload protection, current limiting, and safe area compensation circuitry, making it robust against overload and short-circuit conditions without requiring additional external components. It supports a wide input voltage range up to 35V and features positive polarity output.

Designed for use in through-hole mount configurations, the MC7805BTG offers ease of installation on printed circuit boards. It operates efficiently with a low quiescent current of 3.2 mA, enhancing power efficiency in battery-powered and energy-sensitive devices. The device is compliant with RoHS directives and meets the automotive standard AEC-Q100, confirming its suitability for automotive applications.

Its operating temperature range from -40°C to 125°C allows deployment in harsh environmental conditions typical in industrial and automotive sectors. The compact dimensions of 30.02 mm height, 10.28 mm length, and 4.82 mm width in a TO-220 package contribute to its versatility in various electronic designs.

Fixed 5-volt output for stable voltage supply. Internal thermal overload protection enhances safety. Current limiting and safe area compensation prevent damage under faults. Through-hole TO-220 3-pin package facilitates PCB mounting.

Wide operating temperature range of -40°C to 125°C. Compliant with RoHS and automotive AEC-Q100 standards. Low quiescent current of 3.2 mA conserves power. Compatible with industrial, automotive, and electronic system designs.

Monolithic IC design requires no additional external components. Supports input voltage range up to 35V for flexible power supply options.

This voltage regulator is ideal for integration into power management systems in electronics manufacturing, industrial machines, automotive electronics, and other applications requiring reliable fixed voltage output with thermal and current protections. Its robust features make it a dependable component for designers aiming for efficiency and durability.
