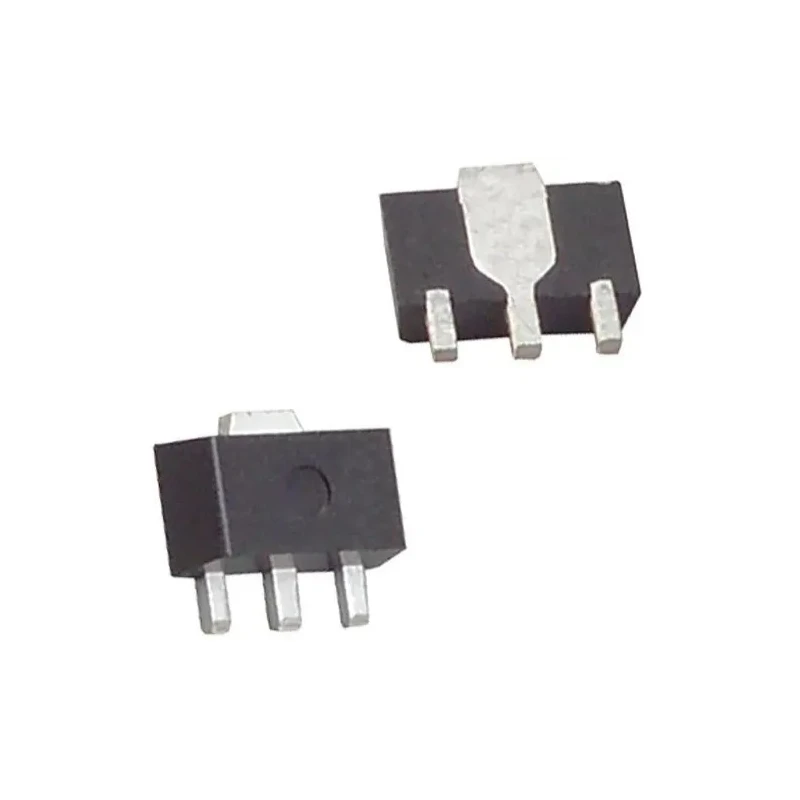

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 3V 100mA Surface Mount NJM78L03UA-TE1

Nisshinbo Micro Devices NJM78L03UA-TE1 is a highly reliable linear voltage regulator designed for industrial and electronic component applications. It delivers a fixed 3V output with a maximum current of 100mA and features a compact three-pin surface mount design ideal for printed circuit boards.

This regulator uses advanced bipolar technology and the JRC planar epitaxial process, providing excellent ripple rejection and internal current limiting. It also includes built-in thermal shutdown protection, enhancing device durability and preventing damage under overload conditions.

Operating over a wide temperature range from -40°C to 125°C, this voltage regulator is suitable for automotive, industrial, and consumer electronics environments where stable voltage regulation is critical. The device supports input voltages from 4V up to a maximum of 40V, offering flexibility in various power supply designs.

The NJM78L03UA-TE1 offers outstanding line regulation of 125mV and load regulation of 50mV to maintain a consistent output voltage under varying load conditions. Its low quiescent current of 6mA helps minimize power consumption in battery-powered or energy-sensitive applications.

Linear voltage regulator for stable 3V output. Maximum output current up to 100mA supports low-power devices. Robust operation with thermal shutdown and internal current limiting. Compact surface mount package with 3 pins for easy PCB assembly.

Wide temperature range operation ensures reliability in harsh environments. RoHS compliant for environmental safety and regulatory adherence. Ideal for power management in electronic circuits, industrial control, and communication equipment.

This voltage regulator is a dependable component for applications requiring a steady low-voltage power supply. It is widely used in industrial tools, laboratory instruments, and consumer electronics. For comprehensive power management solutions, explore additional components in the Voltage Regulator category on EnvMart.
