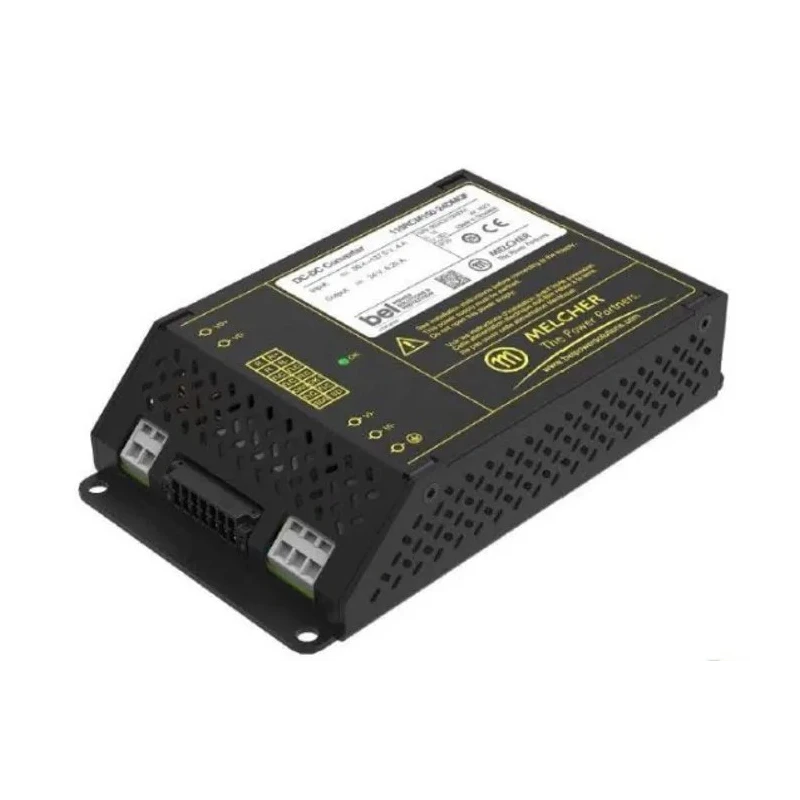

BEL POWER SOLUTIONS INC DC/DC Converter, 24V Output, 137.5V Max Input, 6.25A Output Current, Chassis Mount, 70°C Max RCM150

BEL POWER SOLUTIONS INC RCM150 DC/DC Converter model offers a 24V output voltage with a robust maximum input voltage of 137.5V and a minimum input of 50.4V. This chassis mounted converter is designed for demanding applications including railway, communication, and industrial environments.

The unit delivers a maximum output current of 6.25A and supports a maximum output power of 150W, with an efficiency rating of 93%. The converter's rugged Melcher™ cassette style design enables a closed housing chassis mount installation, providing protection and durability for harsh environments.

Operating over a wide ambient temperature range from -40°C to 70°C, this converter supports reliable power delivery under extreme temperature conditions. It includes protection features against overtemperature, overvoltage, overcurrent, and overload conditions.

The converter meets key safety and performance standards including IEC, EN, CSA, UL, and is compliant with fire and smoke standards EN 45545 and NFPA 130, making it suitable for use in railway and transportation systems. It is equipped with three connectors for input, output, and auxiliary wiring.

With an isolation voltage of 4.2kV and a high MTBF of 1,220,000 hours, this unit ensures continuous and reliable operation in industrial and commercial power supply systems. Its compact dimensions (164.5mm length, 96mm width, 36.1mm depth) and light weight of 520g make it an ideal power solution where space and weight are considerations.

Its features include options for output ORing FET for redundant operation, output voltage adjustment, shutdown input, and output voltage monitoring with relay control. The design is compliant with all common railway batteries' voltage inputs and includes low inrush current functionality.

This RCM150 series converter is a new, high-performance DC/DC power supply from BEL POWER SOLUTIONS INC, ideal for critical industrial, transportation, and communication applications requiring highly reliable regulated power.

Explore more power supply and conversion solutions from EnvMart's extensive catalog for your industrial and technical needs. The converter supports a maximum input voltage of 137.5V and minimum input of 50.4V. It delivers an output current of 6.25A at 24V output voltage.

Designed for chassis mounting with a rugged closed housing for durability. Operates efficiently at 93% efficiency with protection against overtemperature, overvoltage, and overload. Compliant with IEC, EN, CSA, UL standards and fire and smoke regulations EN 45545 and NFPA 130.

Equipped with three connectors: input, output, and auxiliary to support varied configurations. Minimum operating temperature is -40°C and maximum operating temperature is 70°C. Features isolation voltage of 4.2kV and high MTBF of 1,220,000 hours ensuring reliability.
