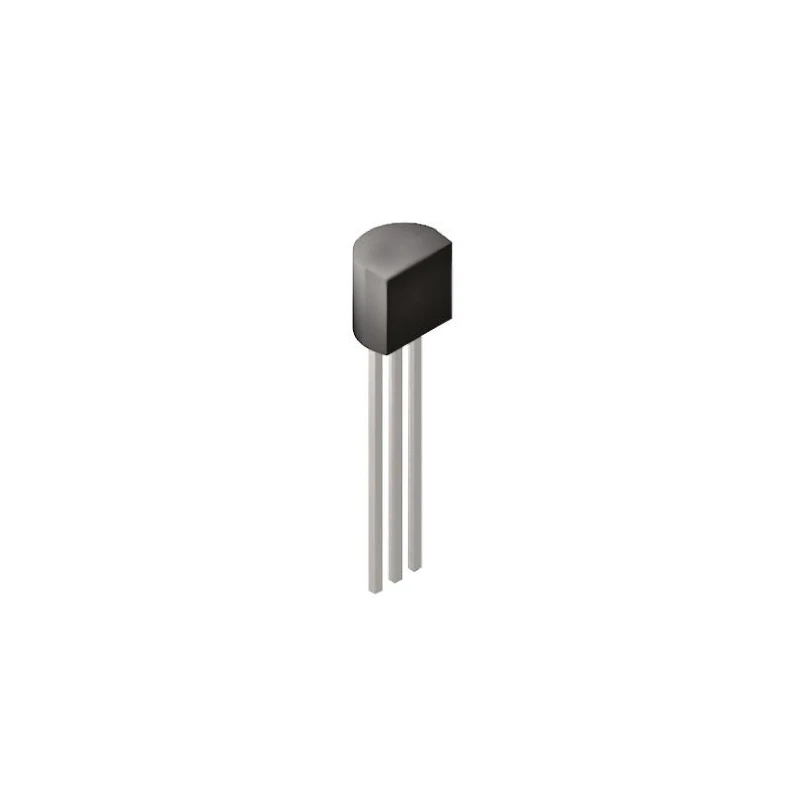

onsemi Low Dropout Linear Voltage Regulator 40V TO-92 3-Pin Positive Polarity LM2931AZ-5.0G

onsemi LM2931AZ-5.0G is a low dropout (LDO) linear voltage regulator designed for precise 5V regulation with a maximum input voltage rating of 40V. Packaged in a TO-92 3-pin form factor, it is suitable for through-hole PCB mounting and positive polarity applications.

This regulator supports output currents up to 120mA, offering low noise and high power supply rejection ratio (PSRR) making it suitable for sensitive analog and digital electronics. It maintains continuous operation over a wide temperature range up to 125°C, complying with automotive AEC-Q100 standards which makes it reliable for automotive and industrial environments.

The compact package with dimensions 5.2mm (L) × 4.19mm (W) × 5.33mm (H) allows space-constrained circuit designs. Additionally, the device is RoHS compliant ensuring environmental safety in production.

These features make the LM2931AZ-5.0G ideal for use in power management circuits including consumer electronics, automotive subsystems, and industrial controls requiring stable low voltage power supply with minimal dropout voltage.

This voltage regulator features a low dropout voltage characteristic allowing operation with small input-output voltage difference. The device supports through-hole mount type with 3 pins for easy PCB integration. Constructed to withstand a maximum operating temperature of 125°C, suitable for demanding applications.

Complies with RoHS standards and meets the automotive AEC-Q100 qualification for reliable automotive use. Compact dimensions facilitate space-saving PCB layouts. Offers continuous output current capability up to 120mA. Provides low quiescent current operation with high power supply ripple rejection ensuring stable output.

Ideal for applications in industrial, automotive, and consumer electronic circuits. Explore the wide range of Voltage Regulators and power management ICs at EnvMart for advanced electronic design and manufacturing requirements.
