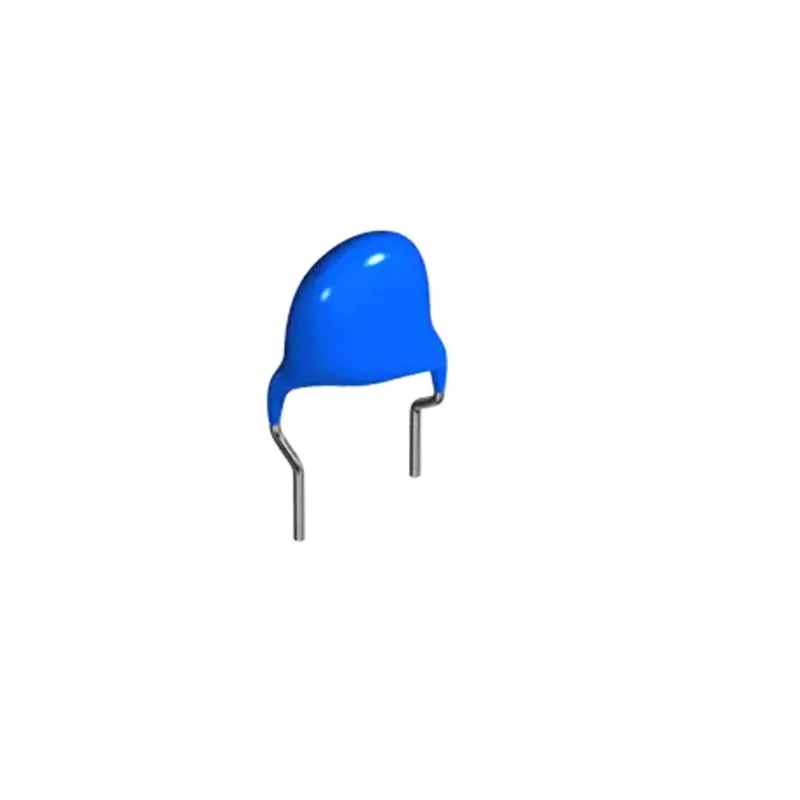

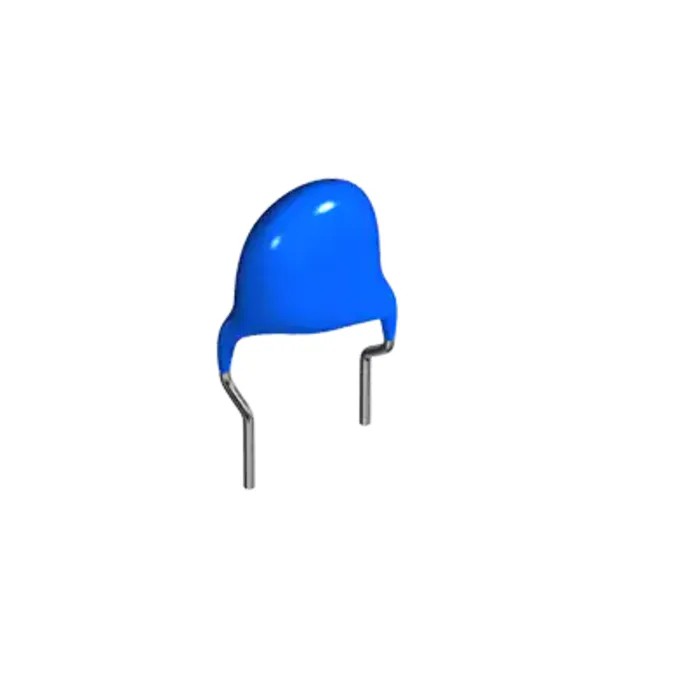

TDK Single Layer Ceramic Capacitor 10 nF 1 kV DC Push-In Radial CK45 Series 80% Tolerance 105°C CK45

Free Delivery in India | Lowest Global Shipping Charges

TDK Single Layer Ceramic Capacitor 10 nF 1 kV DC Push-In Radial CK45 Series 80% Tolerance 105°C CK45



Category Single Layer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	1kV dc
Diameter	11mm
Brand	TDK
Model	CK45
Packaging	Bulk
Width	5mm
Mount Type	Push-in
Series	CK45
Maximum Operating Temperature	105°C
Tolerance	80 %
Capacitance	10nF
Minimum Operating Temperature	-25°C
Terminal type	Radial
Standards/Approvals	RoHS
Package/Case	Disc
Pin Count	2

Key Features

Capacitance rating of 10 nanofarads for stable performance.
Push-in radial mount type for easy PCB installation.
Disc package with 2 pins and 11 mm diameter.
Tolerance of 80% ensures acceptable variation in capacitance.
Operating temperature range from -25°C to a maximum of 105°C.
Constructed with lead-free materials complying with RoHS standards.
Compatible with halogen-free external resin coating for environmental safety.
Typical use includes DC ballast and other high voltage electronic circuits.

Product Description

TDK CK45 Single Layer Ceramic Capacitor 10 nF 1 kV DC Push-In is a high voltage commercial grade disc type ceramic capacitor manufactured to meet rigorous electronic component standards.

It features a capacitance of 10 nanofarads and is designed to operate reliably at voltages up to 1 kV DC, with a tolerance of 80%. The capacitor’s push-in radial terminal type facilitates efficient through-hole PCB mounting. Its robust disc package measures 11 mm in diameter and 5 mm in width.

The operating temperature range spans from -25°C to 105°C, making it suitable for demanding industrial and electronic applications such as DC ballasts and other circuits requiring stable high voltage capacitance.

This capacitor complies with RoHS directive requirements, using lead-free lead wires and internal solder material, and it is compatible with halogen-free external resin coatings for enhanced safety and environmental sustainability.

Capacitance rating of 10 nF ensures precision in electronic filtering and timing applications. Rated for 1 kV DC voltage, suitable for use in high voltage circuits. Push-in radial mount type allows for reliable mechanical and electrical connection.

Disc package with 2 pins simplifies PCB integration. 80% capacitance tolerance offers acceptable precision for commercial grade use. Wide temperature range (-25°C to 105°C) supports operation in variable environments. RoHS compliant with lead-free materials to meet regulatory standards.

Suitable for industrial, laboratory, and commercial electronics manufacturing applications.

This product is ideal for engineers and designers seeking a reliable single layer ceramic capacitor for high voltage DC applications. It aligns with the requirements of industries including electronics manufacturing, instrumentation, and power electronics.
