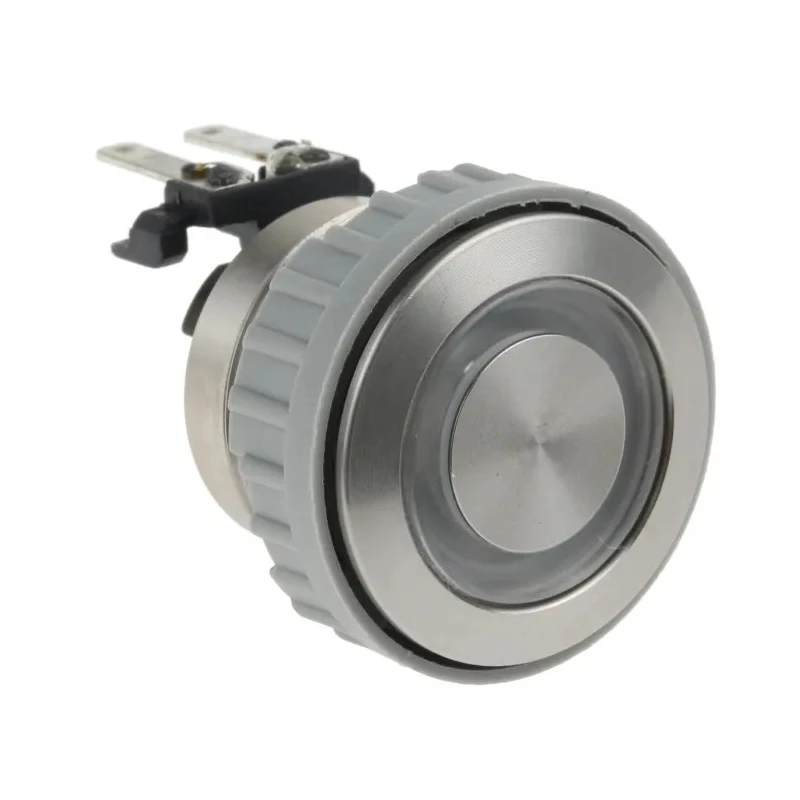

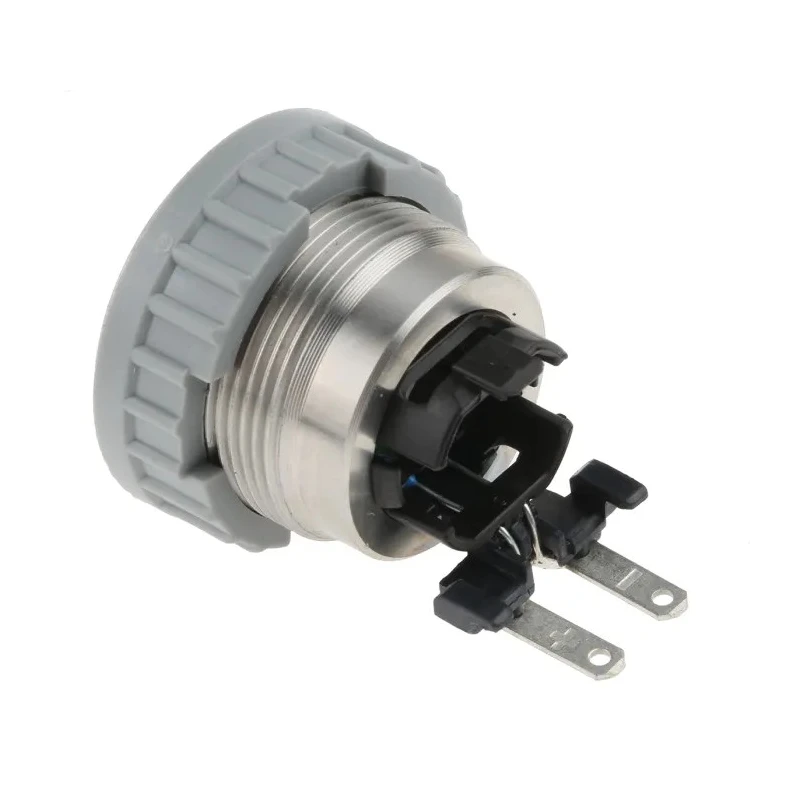

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Blue LED, IP40, 125 V 1241.6834.1124000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP40 |
| Mount Type | Panel |
| Series | MSM LA 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, RoHS, IEC, CSA |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a DPDT contact configuration for versatile circuit control.
- It has an IP40 rating suitable for moderate protection against solid objects.
- The actuator is styled as a natural-colored button ensuring user-friendly operation.
- Designed for robust use with an operating temperature range from -20°C to 85°C.
- Capable of switching currents up to 12A with DC voltage rating of 125 V dc and AC voltage rating of 250 V ac.
- The switch includes a blue LED for illuminated status indication.
- It offers up to 150,000 mechanical operations ensuring long service life.
- The product complies with UL, RoHS, IEC, and CSA standards for quality and safety.
Product Description
Schurter model 1241.6834.1124000 is an illuminated push button switch designed for panel mounting. It features a robust latching mechanism with a 22 mm panel cutout and a double pole double throw (DPDT) contact configuration. The button is naturally colored and equipped with a blue LED illumination for clear switching status indication.
This switch is rated for 125 V dc contact voltage and 250 V ac contact voltage, handling up to 12 amperes current, making it suitable for controlling various electrical circuits in industrial and commercial equipment. It operates reliably in environments with temperatures ranging from -20°C to 85°C and offers an IP40 ingress protection rating, providing protection from solid objects larger than 1 mm.
The MSM LA 22 series is engineered for durability with up to 150,000 mechanical operations, ensuring long-term reliability in harsh operating conditions. Its panel mount design and tab terminal type simplify installation and maintain secure electrical connections. Compliance with UL, RoHS, IEC, and CSA certifications underscores its high standards of safety and environmental responsibility.
This switch is suitable for use in industrial automation, control panels, machinery, and other applications requiring precise and durable push button switches with visual status indicators. The blue LED illumination allows clear visibility of the switch position under various lighting conditions.

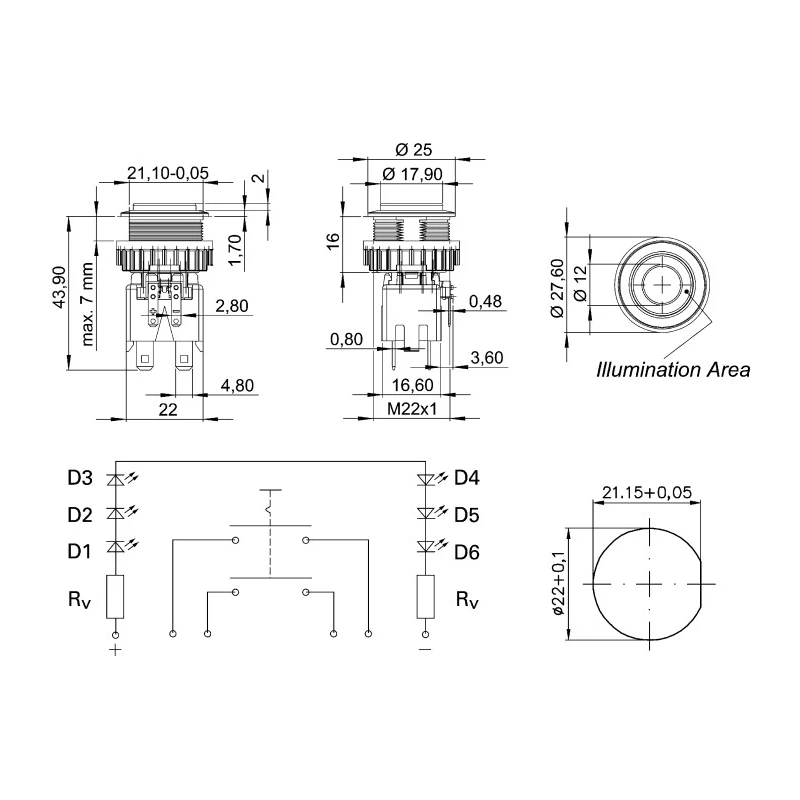

The push button actuator requires an operating force of approximately 10 N with 4.5 mm travel and protrudes 3.7 mm above the panel when in the off position. The switch withstands IK07 shock resistance as per DIN EN 50102 standards, enhancing its robustness against impacts.
Point illuminated versions such as this require a suitable series resistor for operation.
Schurter offers this model as a reliable choice for engineers and maintenance personnel in need of a high-quality, long-life illuminated push button switch complying with international standards.
Explore more Schurter MSM LA 22 series switches and other panel mount Push Button Switches at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.
The switch is capable of handling a maximum current of 12A.
It has a contact DC voltage rating of 125V and an AC voltage rating of 250V.
The switch has an IP40 rating, providing moderate protection against solid objects larger than 1 mm.
It operates reliably within a temperature range of -20°C to 85°C.
This model is designed for panel mounting with a 22 mm cutout size.
The actuator is styled as a button and is naturally colored for user-friendly operation.
It is rated for up to 150,000 mechanical operations, ensuring long service life.
It complies with UL, RoHS, IEC, and CSA standards for quality and safety.
The switch features tab terminals for secure electrical connections.
The actuator requires an operating force of approximately 10 N with a travel of 4.5 mm.
It is suitable for use in industrial automation, control panels, and machinery requiring precise push button operation with visual indicators.
