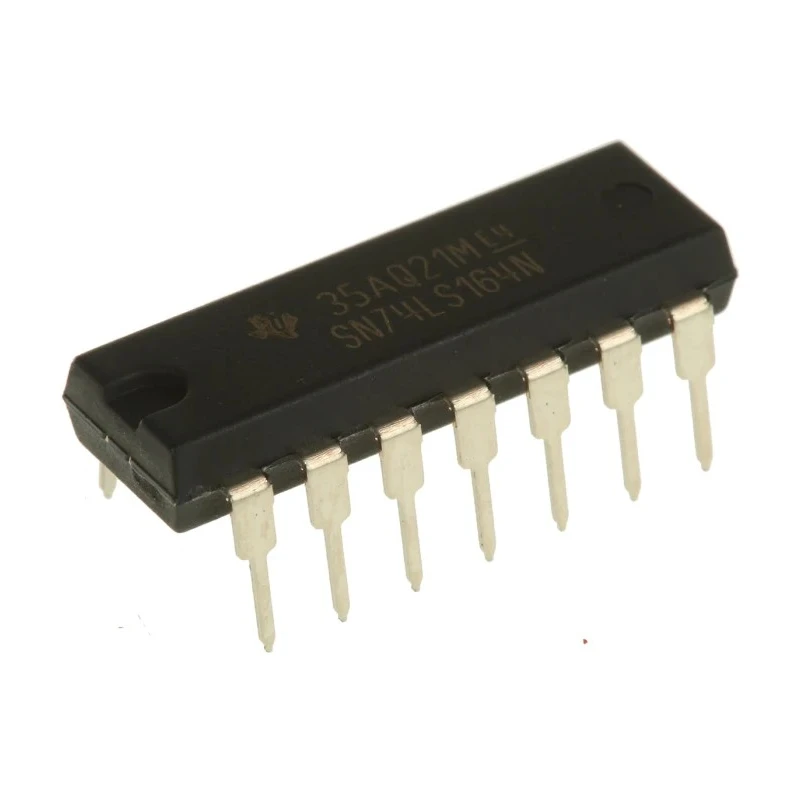

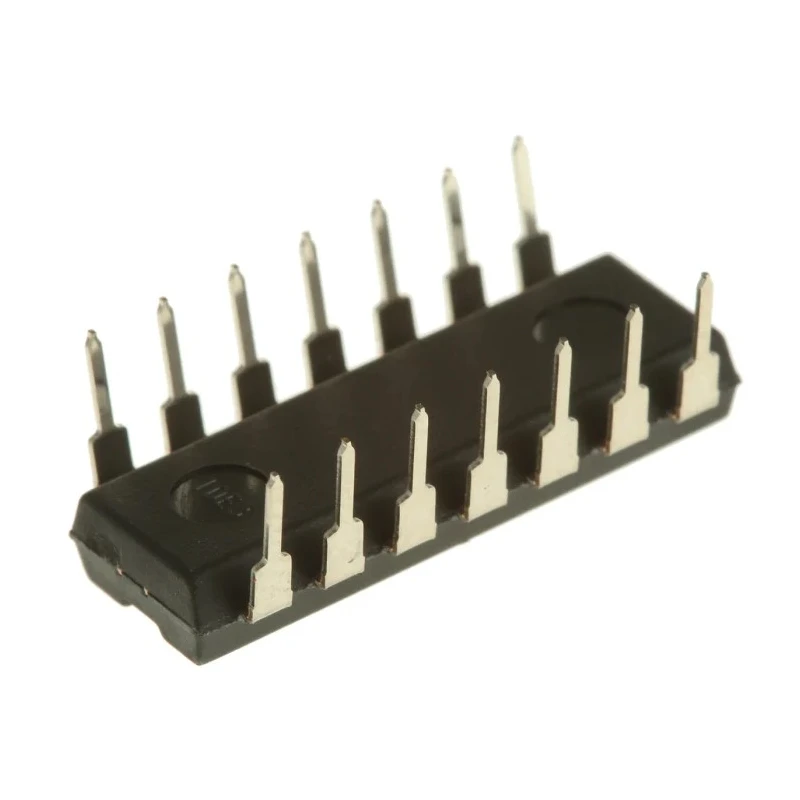

Texas Instruments Shift Register 5.25V Through Hole Asynchronous Reset SN74LS164

Texas Instruments SN74LS164 is a low power Schottky shift register IC designed for digital logic applications requiring sequential data handling and bit shifting capabilities. Operating at a maximum supply voltage of 5.25V, this through-hole mounted component features an asynchronous reset method allowing immediate reset independent of clock input.

The device supports uni-directional counting, ideal for use in serial-to-parallel data conversion and timing delay circuits. The operating temperature range of 0°C to 70°C ensures reliable performance in typical industrial and commercial electronic environments.

Part of the 74LS family, this IC utilizes bipolar junction transistor technology with Schottky diode clamps enabling speeds comparable to original 74TTL logic but with substantially lower power consumption. There are no specified certifications or standards approvals, but it aligns with industry-standard 74LS series criteria for Counter ICs and shift registers.

This shift register is mounted through hole for secure PCB installation. It supports uni-directional count direction for sequential bit shifting. Operating temperature ranges from 0°C to 70°C, suitable for standard industrial environments.

Part of the low power SN74LS164 series using bipolar junction Schottky technology for efficient speed and low power consumption. Features asynchronous reset method enabling flexible control in circuit design.

This component is ideal for industrial logic applications, electronics manufacturing, and embedded system design. It is used extensively in timing, sequencing, and data conversion functions within electronic circuits.
