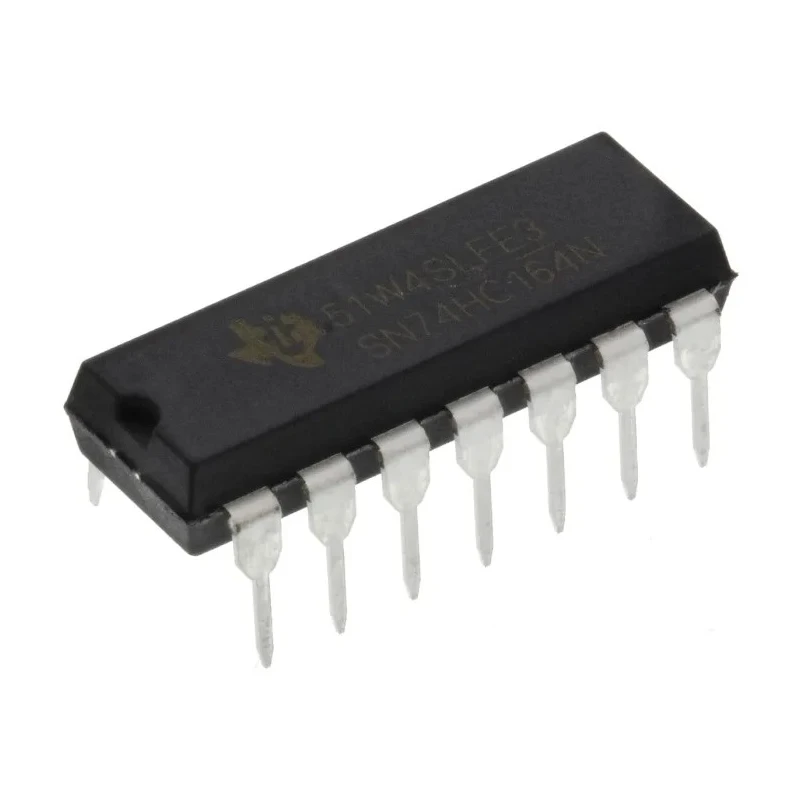

Texas Instruments 8-Stage Through Hole Binary Shift Register PDIP SN74HC164N

Texas Instruments SN74HC164N is an 8-stage binary shift register logic IC designed for through hole mounting in a PDIP package. Operating within a voltage range of 2 V to 6 V, it provides high-speed CMOS logic performance suitable for industrial and commercial semiconductor applications.

This shift register supports asynchronous reset and preset functions, enabling effective control of counting and data shifting operations. It features a 14-pin form factor that facilitates easy integration into circuit boards and systems.

The device is part of the 74HC family known for employing silicon gate CMOS technology to deliver high operating speeds while maintaining low power consumption. With counter clock frequencies up to 25 MHz at 6 V supply, it is ideal for timing and counting tasks in electronic devices.

It assures compatibility with CMOS input and output logic levels, making it versatile for various embedded systems. The uni-directional design supports straightforward binary counting, applicable in digital counters and control circuits.

The SN74HC164N functions reliably across a wide temperature range of -40°C to 85°C, suitable for industrial and laboratory environments. Manufactured under RoHS compliance, this product ensures environmentally safe production standards.

Operates on 2 to 6 V logic supply voltage. Through hole PDIP package with 14 pins. Binary 8-stage shift register function. Asynchronous reset and preset capabilities. High-speed 74HC CMOS technology. Uni-directional counter design.

Compatible input/output CMOS logic levels. Operating temperature range: -40°C to 85°C. Compact size: 19.69 mm length x 4.57 mm height. RoHS compliant manufacturing.

This Texas Instruments logic IC is widely used in industrial semiconductor circuitry for electronic controls, timing applications, and digital counters. It is reliable for educational laboratories, manufacturing automation, and embedded electronics.
