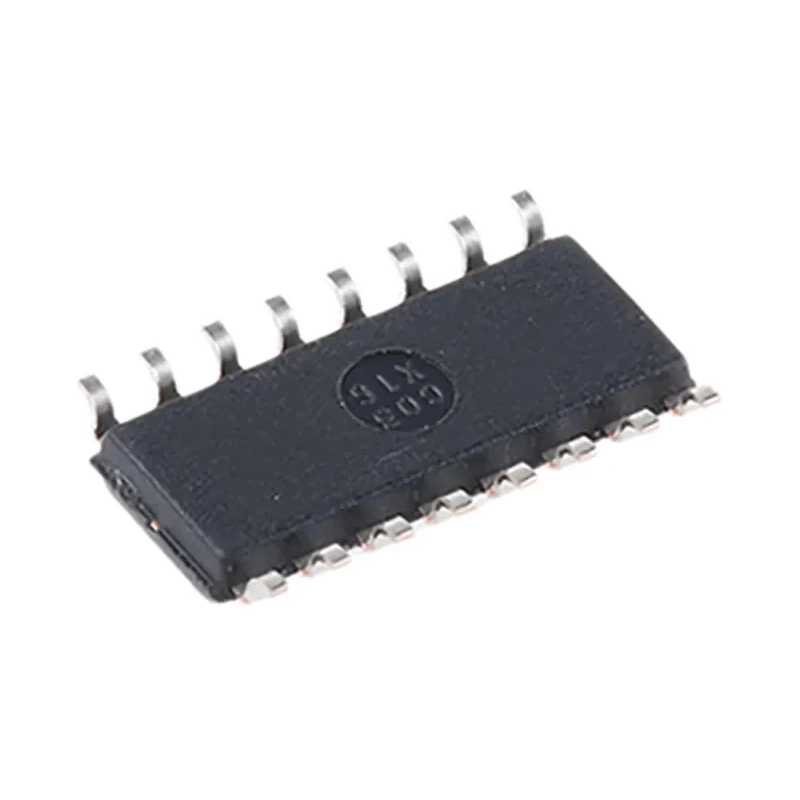

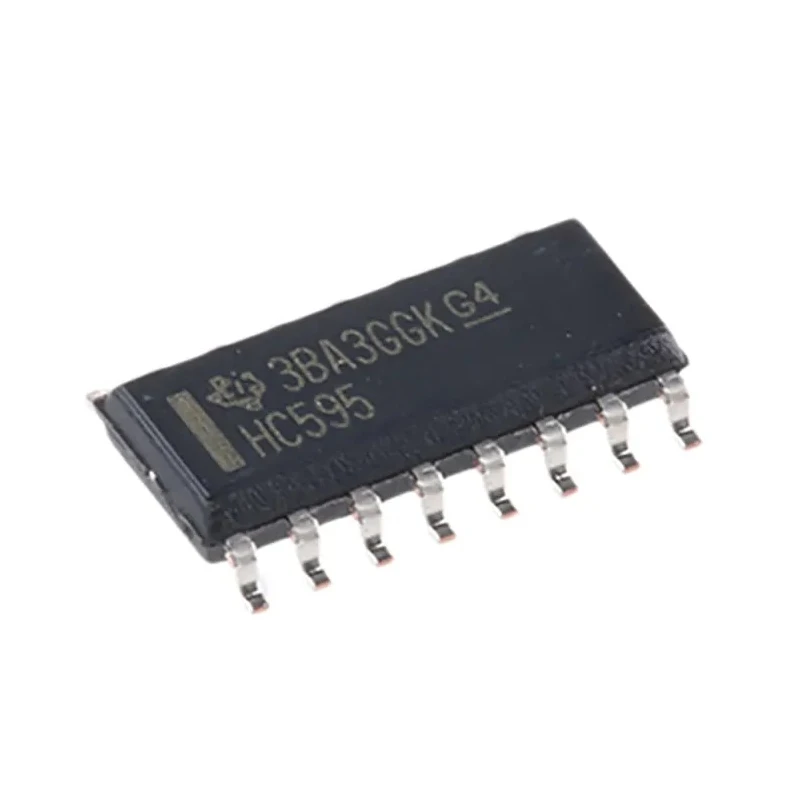

Texas Instruments 8-Stage Surface Mount Binary Shift Register SOIC 16 Pin SN74HC595DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.5mm |
| Length | 10mm |
| Model | SN74HC595DR |
| Mount Type | Surface |
| Compatibility | Input CMOS, Output CMOS |
| Series | SN74HC595 |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 8 |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 2 to 6 V |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Shift Register |
| Minimum Supply Voltage | 2V |
| Direction Type | Uni-Directional |
| Reset Type | Asynchronous |
| Counter Type | Binary |
| Counter IC Clock Frequency | 29 MHz (6V), 5 MHz (2V), 25 MHz (4.5V) |
| Preset Type | Asynchronous |
| Nexperia 74HC595D,118 8 Surface Shift Register 74HC 16 SOBrand | Nexperia |
Key Features
- Operates within a voltage range of 2 to 6 volts for versatile applications.
- Supports counter IC clock frequencies up to 29 MHz at 6 V supply voltage.
- Uses high-speed CMOS logic technology delivering low power consumption.
- Uni-directional shift direction with asynchronous reset and preset types.
- Complies with RoHS standards ensuring environmental safety.
- Compact dimensions with 10 mm length and 1.5 mm height SOIC form factor.
- Operating temperature range from -40°C to 85°C suitable for varied environments.
- Compatible with input and output CMOS logic levels.
Product Description
Texas Instruments SN74HC595DR is a high-speed CMOS logic 8-stage binary shift register designed for surface mount applications. Housed in a compact 16-pin SOIC package with dimensions of 10 mm length and 1.5 mm height, it offers efficient circuit integration for digital electronic systems.
This shift register operates reliably over a wide supply voltage range of 2 V to 6 V, achieving clock frequencies up to 29 MHz at the 6 V rating. It features asynchronous reset and preset inputs, enabling flexible control in complex digital designs.
Manufactured with silicon gate CMOS technology, the device balances high operating speeds with low power consumption comparable to LSTTL families. The uni-directional data shifting supports precise digital data manipulation in counting, data storage, and transfer functions.
Its temperature tolerance from -40°C to 85°C ensures durability across industrial, automotive (non-automotive standard), and laboratory environments. Full RoHS compliance confirms its adherence to environmental safety regulations.
Operates between 2 to 6 V supply voltage ensuring compatibility with common digital logic circuits. Maximum clock frequency up to 29 MHz at 6 V for fast data processing. Uni-directional shift mechanism allows straightforward data control.
Supports asynchronous reset and preset for flexible circuit designs. Compact 16-pin SOIC surface mount package enables space-saving PCB layouts. Environmentally friendly RoHS compliance guarantees low hazardous substance levels.
Wide operating temperature range from -40°C to 85°C for robust performance. Compatible with CMOS input and output logic levels for system integration.
This shift register is ideal for industrial, electronic manufacturing, laboratory instrumentation, and embedded system applications requiring compact, reliable digital data handling components.
Explore the full range of Texas Instruments logic ICs and shift registers at EnvMart to support your innovative electronics projects and manufacturing needs.
Explore more products in our Counter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 2 to 6 volts, making it suitable for various applications in digital logic circuits.
It supports clock frequencies up to 29 MHz when powered at a 6V supply voltage, allowing for fast data processing.
The device has compact dimensions of 10 mm in length and 1.5 mm in height, designed for surface mount applications.
It is compatible with both input and output CMOS logic levels, facilitating integration into digital systems.
This unit operates effectively within a temperature range of -40°C to 85°C, suitable for diverse environmental conditions.
This shift register features 8 stages, enabling efficient data manipulation and storage.
It supports asynchronous reset and preset types, allowing for flexible control in digital circuit designs.
It is housed in a 16-pin SOIC package, which is ideal for surface mounting on PCBs.
This model belongs to the HC logic family, known for high-speed CMOS technology and low power consumption.
The data shifting is uni-directional, which simplifies the data control process in applications.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The maximum supply voltage for this model is 6V, which is critical for its operation at higher clock frequencies.
