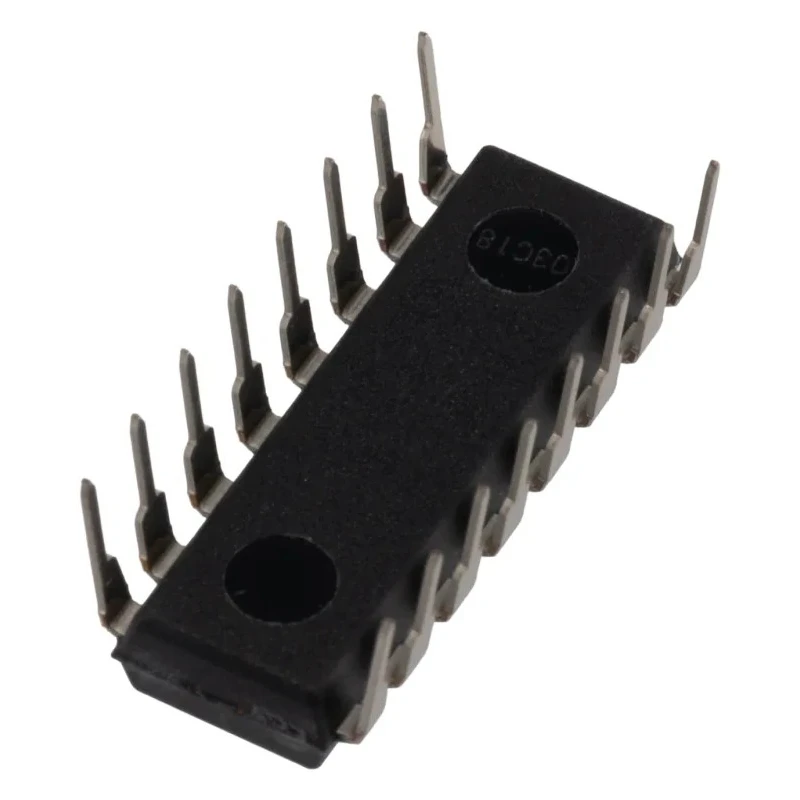

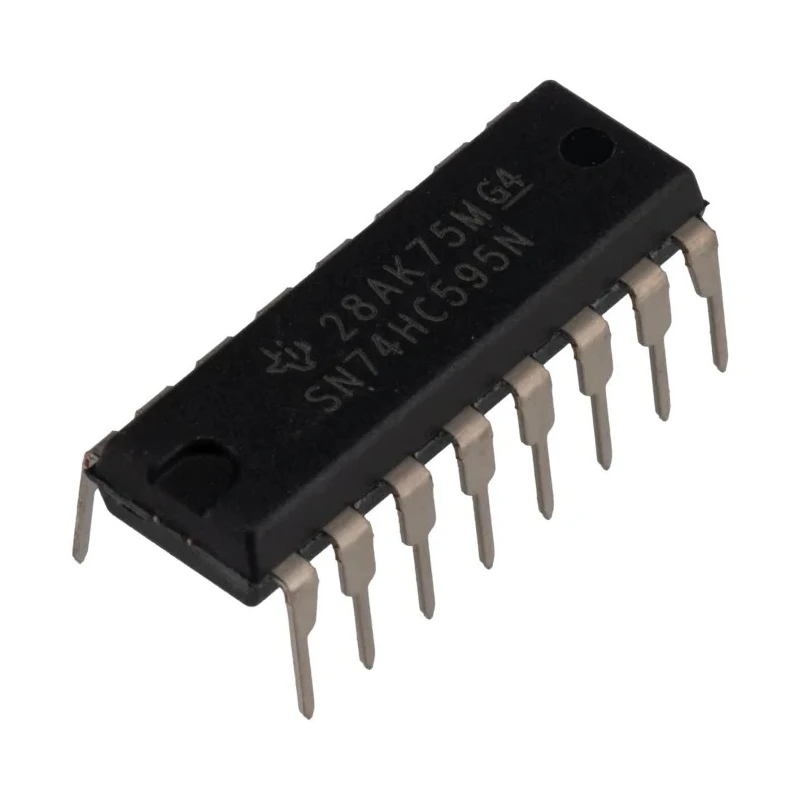

Texas Instruments 8-Stage Through Hole Binary Shift Register, HC Logic Family, 16-Pin PDIP Package SN74HC595N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.69mm |
| Model | SN74HC595N |
| Mount Type | Through Hole |
| Compatibility | Input CMOS, Output CMOS |
| Series | SN74HC595 |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 8 |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 2 to 6 V |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Logic Function | Shift Register |
| Minimum Supply Voltage | 2V |
| Direction Type | Uni-Directional |
| Reset Type | Asynchronous |
| Counter Type | Binary |
| Counter IC Clock Frequency | 5 MHz (2V), 25 MHz (4.5V), 29 MHz (6V) |
| Preset Type | Asynchronous |
Key Features
- This shift register features a uni-directional binary counter function with asynchronous preset and reset.
- It supports clock frequencies up to 29 MHz at higher supply voltage levels.
- The device is RoHS compliant and designed for industrial operating temperature range from -40°C to 85°C.
- It is compatible with input and output CMOS logic levels suitable for high-speed operation.
- The compact 19.69mm length and 4.57mm height make it suitable for PCB through-hole mounting applications.
- The 74HC family technology provides low power consumption combined with high-speed operation comparable to LSTTL families.
- Typical uses include digital counters, data storage, and shift register operations in electronic and industrial equipment.
Product Description
Texas Instruments SN74HC595N is a high-speed 8-stage through hole binary shift register packaged in a 16-pin PDIP format, belonging to the HC logic family. Operating voltage ranges from 2 to 6 V, making it suitable for a variety of CMOS digital circuit designs. This device supports uni-directional shift operations with asynchronous preset and reset functionalities for efficient digital counting and data handling applications.
Designed with silicon gate CMOS technology, it achieves operational speeds comparable to LSTTL logic but with significantly lower power consumption. The device's clock frequency can reach up to 29 MHz when powered at 6V, making it apt for high-speed digital systems and real-time control circuits.
The SN74HC595N complies with RoHS standards, supporting industrial temperature ranges from -40°C to 85°C, ensuring reliability in various environmental conditions. It features 16 pins and is configured for through hole mounting, suitable for PCB integration and easy assembly.
This logic IC is commonly utilized in embedded systems, digital counters, and serial-in parallel-out shifting applications in electronics manufacturing, automation, and instrumentation industries. Its compatibility with CMOS input and output logic levels further facilitates seamless integration in complex digital systems.
This shift register features a uni-directional binary counter function with asynchronous preset and reset. Supports clock frequencies up to 29 MHz at optimal voltage for high-speed operation. RoHS compliant, suitable for industrial temperature environments from -40°C to 85°C.
Compact 16-pin PDIP package with dimensions 19.69 mm length and 4.57 mm height. Low power consumption silicon gate CMOS technology from the 74HC family. Compatible with input and output CMOS logic levels for flexible circuit design.
Ideal for digital data storage, counting, and shift register functions in industrial and electronic applications. Explore a wide range of semiconductor ICs and logic components within EnvMart's Electronics & Electricals category for advanced digital circuit solutions.
Explore more products in our Counter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the SN74HC595N is 29 MHz when powered at 6V.
The operating voltage range for the SN74HC595N is from 2 to 6 V.
This model operates within an industrial temperature range from -40°C to 85°C.
The SN74HC595N features 8 stages.
It is designed for through hole mounting in a PCB.
The SN74HC595N is packaged in a 16-pin PDIP format.
This shift register belongs to the HC logic family.
Yes, the SN74HC595N is RoHS compliant.
It is compatible with input and output CMOS logic levels.
The SN74HC595N provides a uni-directional binary counter function with asynchronous preset and reset.
The SN74HC595N has a height of 4.57 mm and a length of 19.69 mm.
The SN74HC595N features an asynchronous reset type.
