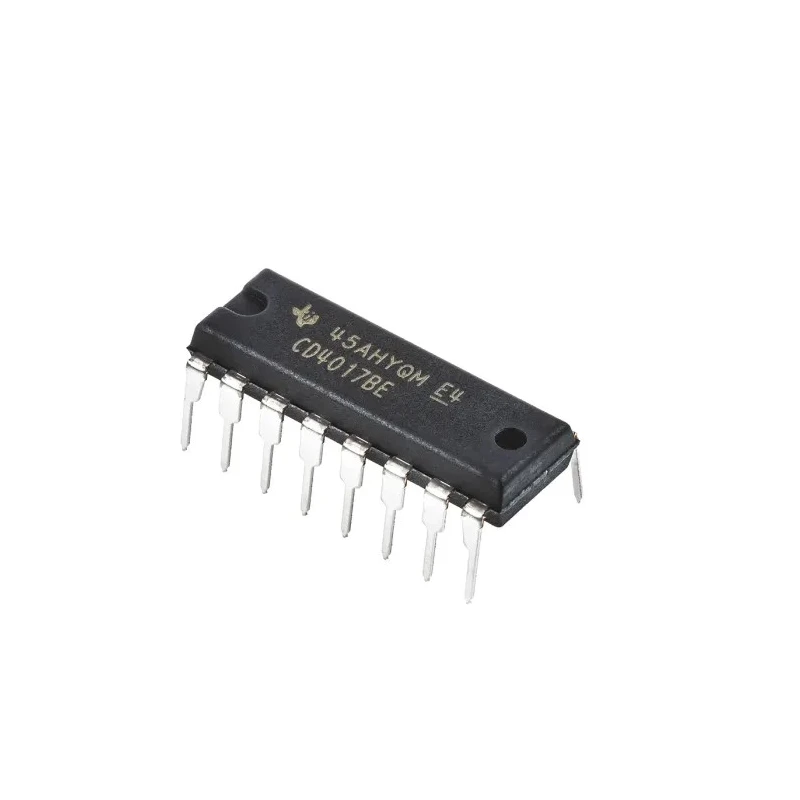

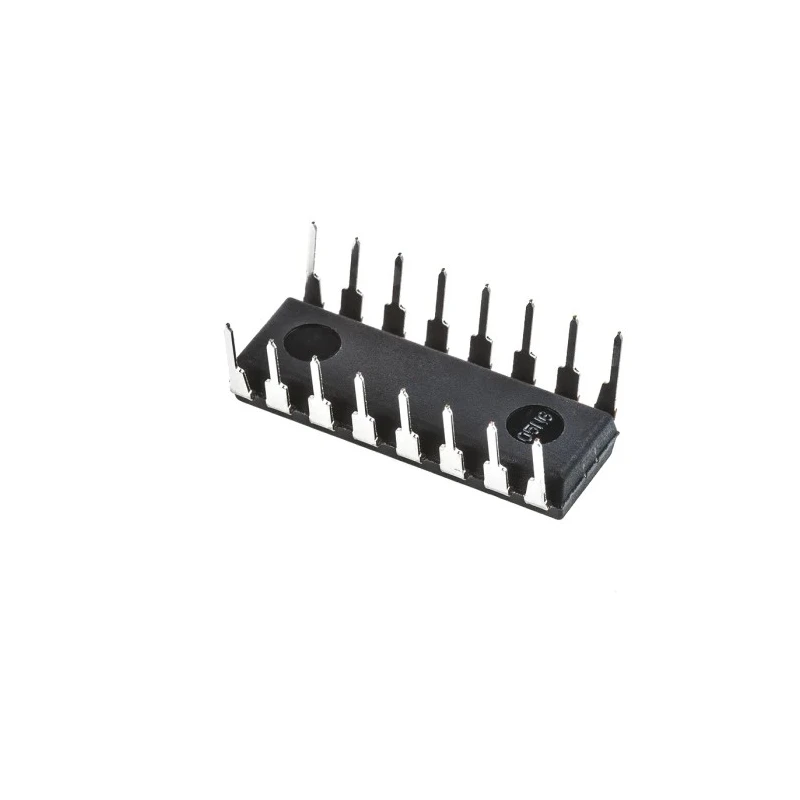

Texas Instruments Counter IC 5-Stage Decade CMOS 16-Pin PDIP CD4017BE

Name: Texas Instruments Counter IC 5-Stage Decade CMOS 16-Pin PDIP CD4017BE
Brand: Texas Instruments
SKU: 128870
Price: 2.29 USD
Availability: InStock



Category Counter ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.69mm
Model	CD4017BE
Mount Type	Through Hole
Series	CD4017B
Maximum Operating Temperature	125°C
Number Of Stages	5
Package Type	PDIP
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	16
Number of Elements	1
Maximum Supply Voltage	18V
Logic Family	CMOS
Logic Function	Counter, Divider
Minimum Supply Voltage	3V
Direction Type	Uni-Directional
Reset Type	Synchronous
Counter Type	Decade
Wide operating voltage range	3 to 18V
Counter IC Clock Frequency	5.5 MHz (15V), 5 MHz (10V), 2.5 MHz (5V)
Preset Type	Synchronous

Key Features

Operates on a wide supply voltage range from 3V to 18V enhancing flexibility.
Capable of counting up to 5 stages with a decade counter functionality.
Features synchronous reset and preset for precise control of count sequence.
Supports uni-directional counting with high-speed clock frequency up to 5.5 MHz.
Robust CMOS logic family design ensures low power consumption and durability.
Through-hole mounting type for easy PCB integration and reliable soldering.
16 pins provide standard interfacing with circuit components.
Wide operating temperature range from -55°C to 125°C for industrial applications.

Product Description

Texas Instruments CD4017BE counter IC is a high-performance 5-stage decade counter featuring CMOS technology housed in a 16-pin PDIP package. This versatile IC is engineered for digital counting and division applications with a wide operating voltage range of 3 to 18 V.

Its synchronous reset and preset functions provide superior control over counting sequences, suitable for digital logic circuits, timers, and frequency dividers in industrial or educational electronic projects. The counter features uni-directional counting with clock frequencies supporting up to 5.5 MHz at 15 V supply, ensuring rapid counting performance.

Constructed with a standard through-hole mounting type, the CD4017BE allows straightforward PCB assembly and is designed for durability across a wide temperature span from -55°C to 125°C. With 16 pins, it integrates seamlessly with other components and is compliant with RoHS standards, guaranteeing environmental safety in manufacturing.

This decade counter IC is part of the well-known CD4017B series by Texas Instruments, recognized globally for reliable semiconductor solutions. Its CMOS logic family ensures low power consumption and increased noise immunity, ideal for electronic components and semiconductor applications.

Operates on supply voltages from 3 V to 18 V for flexible design. 5 counting stages deliver accurate decade counter functionality. Synchronous reset and preset enable precise count management. Uni-directional counting supports various digital logic implementations.

High clock frequency handling up to 5.5 MHz for fast operation. Through hole mounting facilitates ease of PCB assembly and repair. Wide temperature range suitable for harsh industrial environments. Meets RoHS Compliance ensuring environmentally safe usage.

This IC is essential for industrial machines, electronic equipment, laboratory instruments, and educational devices requiring dependable counting capabilities. Explore more semiconductor and counter IC options in the Electronics & Electricals category on EnvMart for comprehensive circuit solutions.
