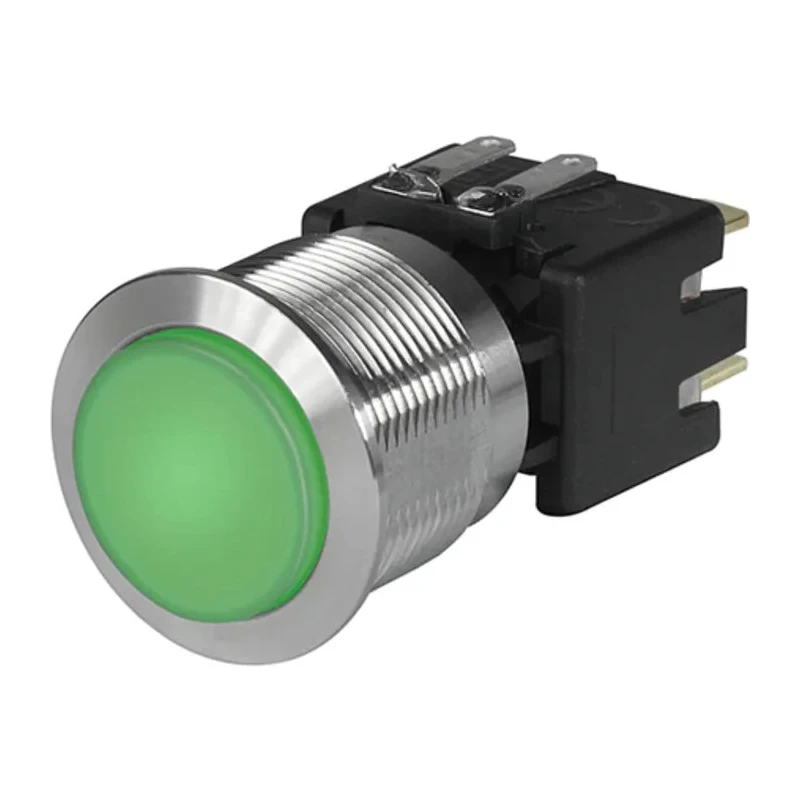

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 19.1 mm Cutout, DPDT, Green LED, IP40/IP64, 16A 3-101-024
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Schurter |
| IP Rating | IP40, IP64 |
| Mount Type | Panel |
| Series | MSM LA CS 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.1 mm |
| Terminal type | Solder Pin |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Green |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V ac |
| Shock protection | IK 07 |
| Actuation force | 10 N |
Key Features
- The push button is designed for panel mounting with a 19.1 mm cutout size.
- Equipped with a green LED illumination for clear status indication.
- The switch is rated for 16A contact current at 250V AC and DC voltages.
- Has robust IP40 and IP64 ingress protection ratings suitable for harsh environments.
- Operates reliably within a temperature range of -25°C to 85°C.
- Constructed with a stainless steel housing and scratch-proof ceramic actuator for vandal resistance.
- Features an actuation force of 10 N and a travel distance greater than 5 mm for tactile feedback.
- Shock protection of IK07 provides durability against mechanical impacts.
Product Description
Schurter 3-101-024 illuminated push button switch is a high-quality latching panel mount switch designed for demanding industrial and commercial applications. It features a 19.1 mm panel cutout and DPDT contact configuration, enabling flexible switching functions.
This model includes a green LED illumination integrated into a robust stainless steel housing with a scratch-proof ceramic actuator, providing longevity and protection against vandalism in harsh environments. The actuator travel is over 5 mm, offering enhanced tactile feedback by changing the actuator position between ON and OFF states effectively preventing accidental switching.
Rated for 250V AC/DC and 16A contact current, the switch ensures reliable performance within a temperature range of -25°C to 85°C. It has an actuation force of 10 N and features IK07 shock protection making it suitable for heavy-duty usage in equipment like vending machines, ticket machines, restaurant operations, and public sanitary installations.
The switch is certified to international standards including DIN EN 61058-1, UL 1054, and is KEMA ENEC 2089323.01 and CSA E-41791 approved, guaranteeing compliance and safety in critical industrial environments.
The green LED provides clear illuminated status indication. Panel mount design allows easy installation into control panels and enclosures. The scratch-resistant ceramic actuator and stainless steel housing offer excellent durability.
Double pole double throw (DPDT) contact configuration enables versatile switching schemes. IP40 and IP64 rated ingress protection shields internal components from dust and splashes. The 10 N actuation force and >5 mm travel ensure user-friendly operation with positive feedback.
With a country of origin marked as Switzerland, the Schurter MSM LA CS 22 series push button switch 3-101-024 is a reliable choice for engineers and technicians requiring rugged, safe, and visually clear switching components in industrial automation, electrical panels, HVAC control, and manufacturing applications.
Explore the Electronics & Electricals category on EnvMart for more premium quality switches and industrial electrical components from top brands.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, allowing for flexible switching functions in various applications.
The maximum operating temperature for this switch is 85°C, making it suitable for a range of industrial environments.
This switch has an ingress protection rating of IP40 and IP64, providing protection against dust and splashes in harsh environments.
The actuation force for this model is 10 N, ensuring a tactile feedback during operation.
The panel cutout size required for this switch is 19.1 mm, designed for easy installation in control panels.
It is rated for a contact current of 16A and operates at 250V AC and DC voltages, ensuring reliable performance in various applications.
The switch features a stainless steel housing and a scratch-proof ceramic actuator, providing durability and resistance to vandalism.
The minimum operating temperature for this model is -25°C, allowing it to function in colder environments.
This model uses solder pin terminals for electrical connections, facilitating secure installation.
It is certified to international standards including DIN EN 61058-1 and UL 1054, and is KEMA ENEC and CSA approved, ensuring compliance and safety.
This push button switch is suitable for demanding applications such as vending machines, ticket machines, and public sanitary installations.
The actuator travel distance is greater than 5 mm, providing positive tactile feedback during operation.
