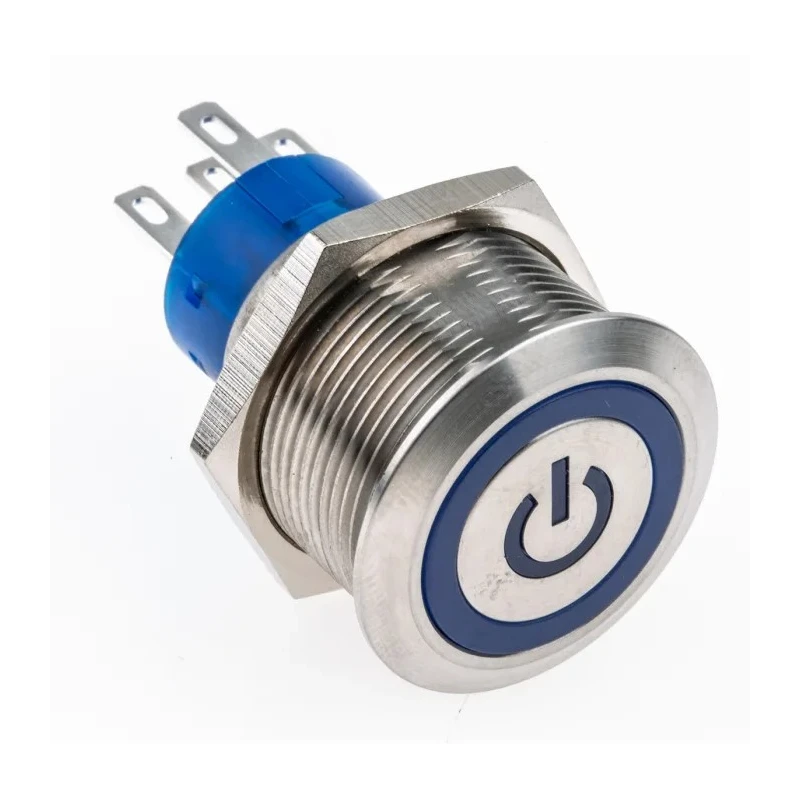

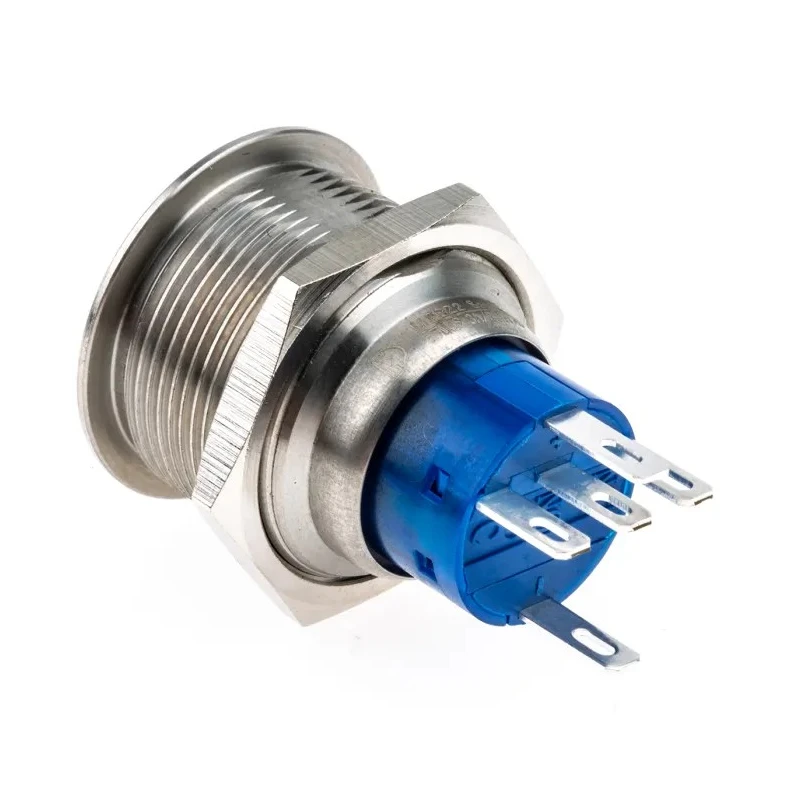

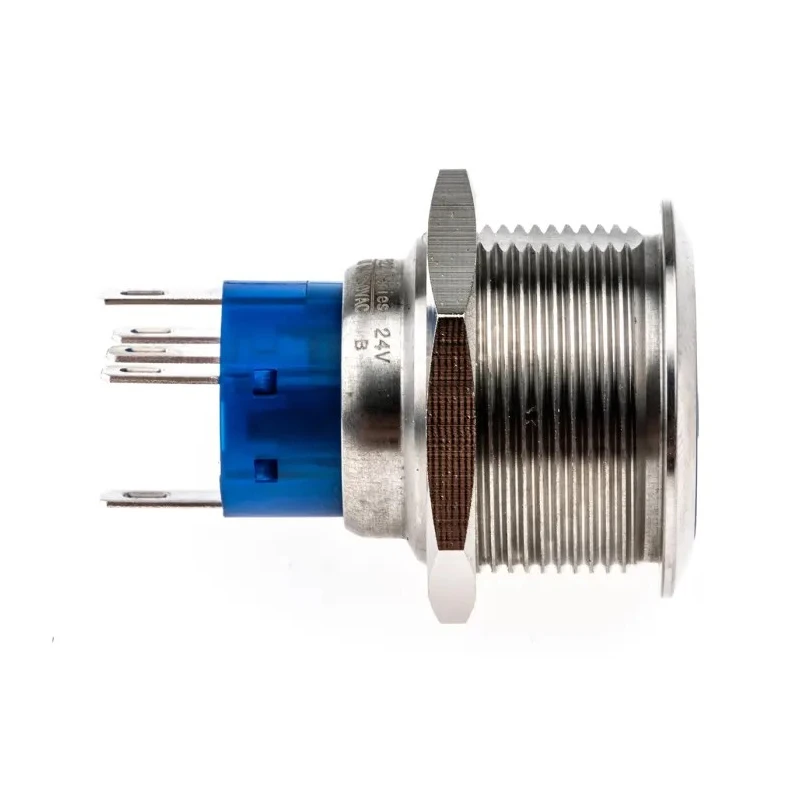

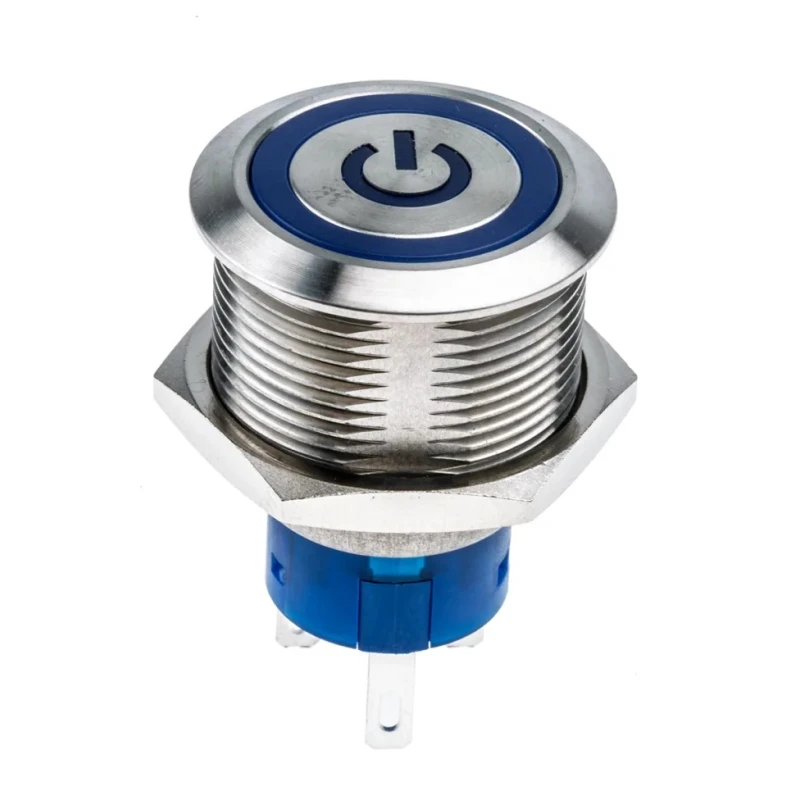

RS PRO Illuminated Push Button Switch Momentary SPDT Blue LED IP67 12V DC 250V AC MPB22
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | MPB22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MPB22 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-2, UL 94 V-0, EN18, EC18, cULus Recognised |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Contact DC Voltage | 12V dc |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Legend | Power Symbol |
Key Features
- Robust momentary push button switch with SPDT contact configuration.
- Illuminated with a bright blue LED for clear status indication.
- IP67 rated for reliable performance in harsh environments.
- Panel cutout size of 22.2 mm ensures easy installation in control panels.
- Solder terminal design for secure electrical connections.
- Operates at 12V DC and 250V AC for versatile usage.
- Flat actuator style for comfortable operation and anti-vandal capability.
- Suitable for industrial control, security, and vehicle applications.
Product Description
The RS PRO MPB22 illuminated push button switch is designed for demanding industrial and commercial applications requiring a reliable and durable momentary control device. Featuring a single pole double throw (SPDT) configuration, it provides dependable switching performance for various control and signaling circuits.
With a prominent blue LED indicator, this push button ensures immediate visual feedback for operators and maintenance staff. The IP67 ingress protection rating guarantees operation in wet, dusty, or otherwise harsh environments, protecting both internal components and the switch's electrical integrity.
The MPB22 model supports a panel cutout size of 22.2 mm, making it compatible with standard industrial panel designs. Its flat actuator design offers ergonomic operation and anti-vandal properties, while the solder terminals allow for secure and straightforward wiring in new and retrofit installations.
Operating across a voltage range of 12V DC and 250V AC, the switch is highly versatile, making it suitable for a range of systems, including industrial control panels, security monitoring, vehicle peripherals, and energy storage equipment or medical devices.
Constructed using high strength materials offering corrosion resistance and lightweight durability, the switch exhibits excellent heat dissipation and aesthetic appeal. The series is recognized for its long operational lifespan and reliability under frequent use.
RS PRO MPB22 illuminated momentary push button switch with SPDT contact configuration. Blue LED indicator provides clear visual feedback and enhances operational safety. IP67 rating ensures suitability for outdoor and exposed environments.
22.2 mm panel cutout allows for easy integration in standard control panels. Solder connection terminals simplify installation and maintenance. Flat actuator design aids anti-vandal reliability and user comfort. Rated for operation at 12V DC and 250V AC, supporting wide application range.
Industrial sectors include control instrumentation, security, vehicle peripherals, audio-visual, and energy systems.
The RS PRO MPB22 push button switch is widely used in industrial control systems, security equipment, vehicle controls, audio-visual devices, and medical instrumentation, offering robust service in demanding settings. Explore more industrial switches and controls from RS PRO in the Electronics & Electricals section on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO MPB22 switch features a single pole double throw (SPDT) contact configuration, allowing it to provide reliable switching performance for various control and signaling circuits.
This model has an IP67 rating, ensuring it is protected against dust and can withstand immersion in water, making it suitable for harsh environments.
The switch requires a panel cutout size of 22.2 mm for installation in control panels, which is compatible with standard industrial panel designs.
It operates at a voltage of 12V DC and 250V AC, providing versatility for various applications.
The RS PRO MPB22 switch uses solder terminals, which allow for secure and straightforward wiring in both new and retrofit installations.
The maximum operating temperature for the RS PRO MPB22 switch is 70°C, which allows it to function effectively in a range of environments.
The minimum operating temperature for this model is -20°C, ensuring reliable operation in colder conditions.
This switch features a flat actuator style, which provides comfortable operation and enhances its anti-vandal capability.
The RS PRO MPB22 switch is recognized with several standards including UL 94 V-2, UL 94 V-0, EN18, EC18, and is cULus Recognised, ensuring compliance with safety and performance guidelines.
This illuminated push button switch is suitable for industrial control systems, security equipment, vehicle controls, audio-visual devices, and medical instrumentation.
The switch features a blue LED indicator, providing clear visual feedback for operators and maintenance staff.
The contact current rating for the RS PRO MPB22 switch is 5A, allowing it to handle a range of electrical loads effectively.
