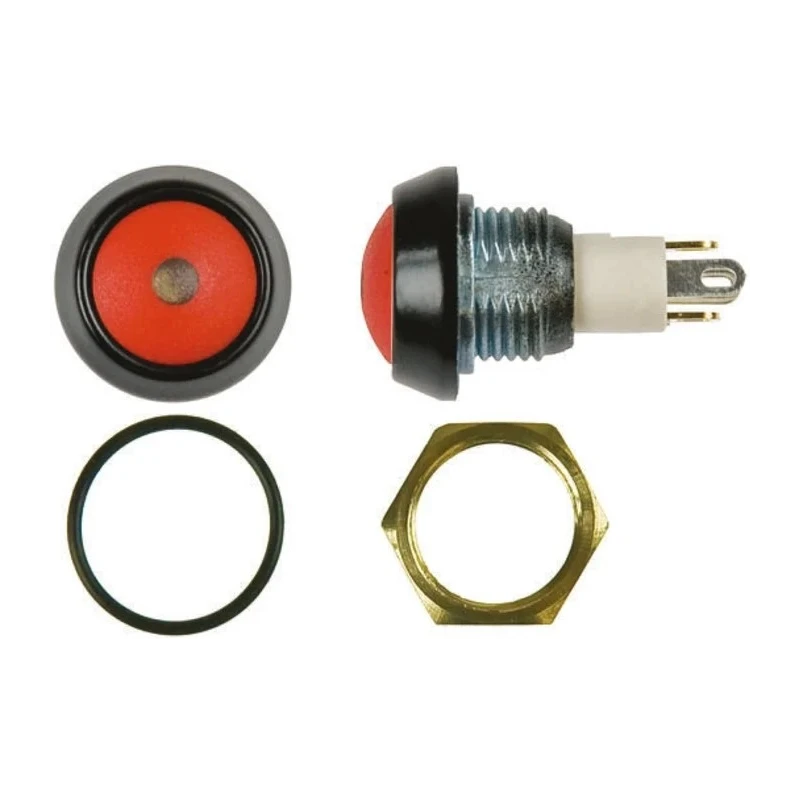

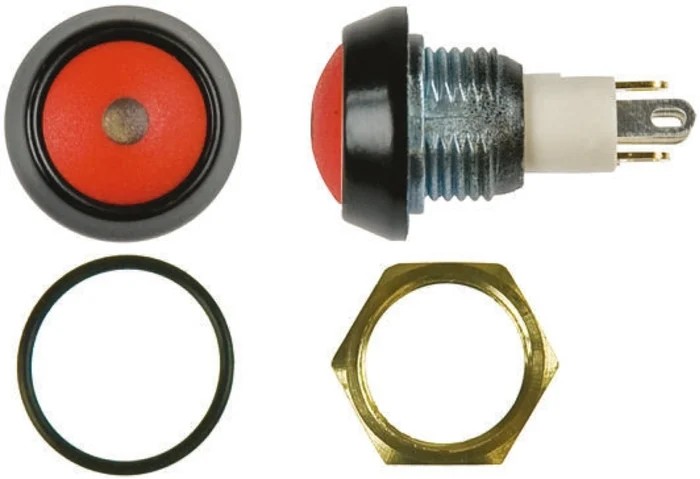

ITW Switches 59 Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Dome 59-412R

Name: ITW Switches 59 Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Dome 59-412R
Brand: ITW Switches
SKU: 82596
Price: 11.64 USD
Availability: InStock



Category Push Button Switches Brand ITW Switches Condition New

Specifications

Country of Origin	Belize
Brand	ITW Switches
Body Material	Non-spark zinc alloy or Polybutylene Terephthalate (PBT)
Model	59-412R
IP Rating	IP67
Mount Type	Panel
Series	59
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-35°C
Panel Cutout Size	13.6 mm
Terminal type	Solder
Standards/Approvals	UL, CSA
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	50V dc
Actuator Style	Dome
Switch Contact Current	400mA
Contact AC Voltage	125V ac

Key Features

Miniature momentary push button switch designed for panel mounting.
Features a red LED illuminated dome actuator for status indication.
Panel cutout size of 13.6 mm, compatible with standard enclosures.
Single pole single throw (SPST) contact configuration ensures on-off switching.
Rated IP67 for dust and temporary immersion protection.
Operates across a wide temperature range from -35°C to 85°C.
Supports contact voltages up to 50V DC and 125V AC with 400 mA contact current.
Solder terminals provided for secure connections in electronic assemblies.

Product Description

The ITW Switches 59-412R is an industrial-grade illuminated miniature push button switch, engineered for reliable momentary switching operations in panel-mount applications. This switch features a compact dome actuator with a vibrant red LED, offering clear visual indication during operation.

Designed for demanding environments, the 59-412R is constructed with robust materials and sealed to IP67 standards, meaning it is fully protected against dust ingress and can withstand temporary immersion between 15 cm and 1 m for up to 30 minutes. The high environmental specifications and non-spark material construction make it suitable for instrumentation, communications, military equipment, mass transport controls, data entry devices, and environmentally challenging keypads.

Its 13.6 mm panel cutout size and solder terminal configuration streamline installation in control panels and equipment housings. The switch operates as a momentary device, only making electrical contact while pressed; it instantly returns to the off position upon release. The single pole single throw (SPST) electrical layout supports straightforward on/off control, enhancing safety and usability in industrial automation systems.

The switch boasts gold-plated contacts, ensuring low resistance and reliable performance over extended service periods. It is rated for up to 50V DC and 125V AC, with a maximum contact current of 400 mA, supporting a diverse range of low-voltage control requirements. The wide operating temperature range, from -35°C to 85°C, allows for deployment in both indoor and outdoor settings across commercial, laboratory, and manufacturing installations.

As part of the ITW 59 Series, this model offers status illumination and robust panel sealing. Available body materials include non-spark zinc alloy or polybutylene terephthalate (PBT), providing durability and compatibility with most industrial and electronic use cases.

Applications for the ITW Switches 59-412R include industrial machine controls, laboratory instrumentation, security panels, automotive dashboards, communication devices, mass transit control panels, manufacturing automation, and other areas where reliable, sealed pushbutton switching is essential.

Discover more push button solutions from ITW Switches in the Switches & Sockets category on EnvMart.

Explore more products in our Push Button Switches category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ITW Switches 59-412R operates within a temperature range of -35°C to 85°C.

This model requires a panel cutout size of 13.6 mm for installation.

The switch features a single pole single throw (SPST) contact configuration, allowing for on-off switching.

It is rated IP67, providing protection against dust and temporary immersion in water.

It supports contact voltages up to 50V DC and 125V AC, with a maximum contact current of 400 mA.

The body material can be either non-spark zinc alloy or polybutylene terephthalate (PBT).

It is equipped with solder terminals for secure connections in electronic assemblies.

This model features a dome actuator style with a red LED for status indication.

It is certified to UL and CSA standards, ensuring compliance with safety regulations.

It is suitable for applications in industrial machine controls, laboratory instrumentation, automotive dashboards, and communication devices, among others.

The switch operates as a momentary device, making electrical contact only while pressed and returning to the off position upon release.

This switch is part of the ITW 59 Series, known for its illuminated and robust panel-mount designs.
