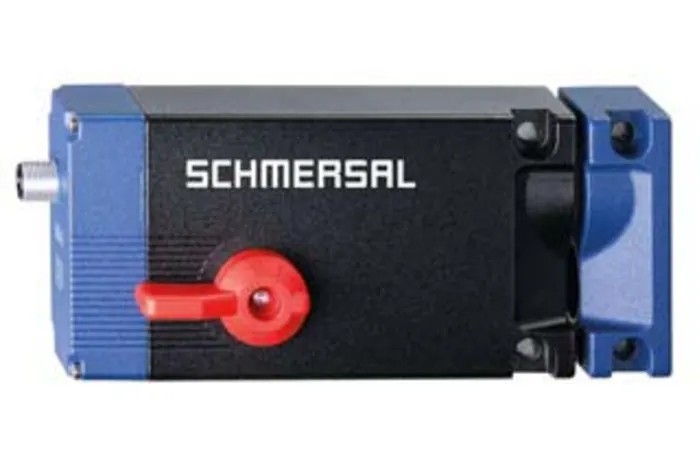

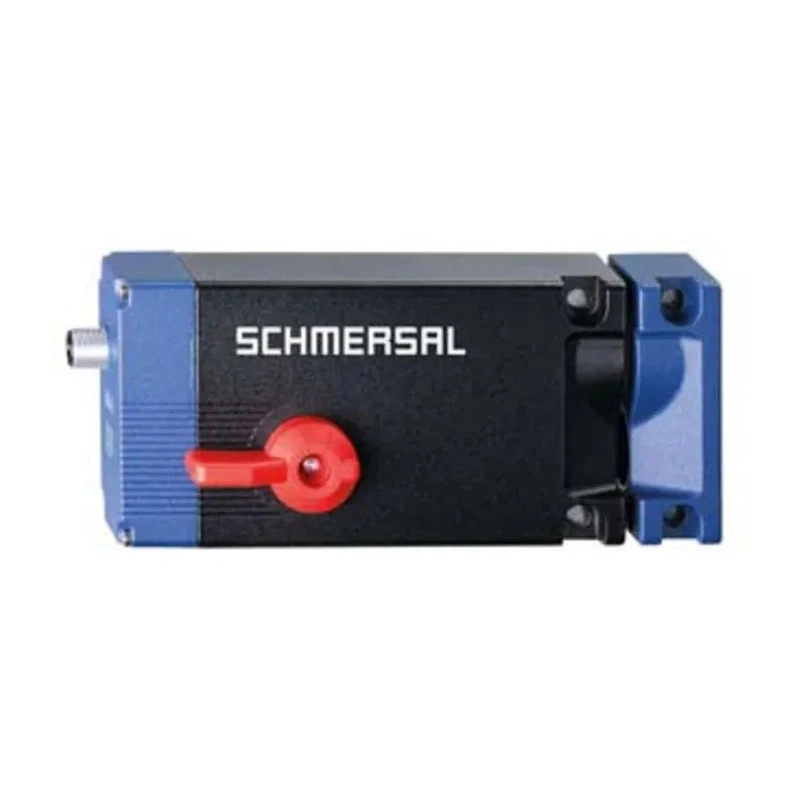

Schmersal Solenoid Interlock Switch with Die Cast Housing, 24V DC, 0.25A, IP66/IP67, RFID Technology AZM400Z
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 166.7mm |
| Model | AZM400Z |
| Depth | 65.3mm |
| IP Rating | IP66, IP67 |
| Width | 77.8mm |
| Housing Material | Die Cast |
| Series | AZM400Z |
| Actuator Type | Magnetic |
| Terminal type | Connector |
| Supply Voltage | 24V dc |
| Standards/Approvals | CE, cULus, EAC, TUV |
| Contact DC Voltage | 24V dc |
| Contact Current | 0.25A |
| Safety Contacts | 2 NO |
Key Features
- Equipped with RFID technology for tamper-proof operation.
- High clamping force of 13000N ensures reliable door locking.
- Die cast alloy housing provides robust impact resistance.
- Wide operating temperature range from -20°C to +55°C.
- IP66 and IP67 ingress protection ratings protect against dust and water immersion.
- Complies with IEC 61508 safety standards for electronic safety systems.
- Low supply current of 100mA for energy efficiency.
- Suitable for industrial applications including manufacturing plants and cutting machinery.
Product Description
Schmersal AZM400Z-ST-1P2P-T solenoid interlock switch is a premium safety component designed to secure equipment guard doors, preventing access while machinery is in operation. It features RFID electronic locking technology, which provides tamper-proof security, enhancing machine safety.
This device operates at 24V DC and has a contact current rating of 0.25A with 2 Normally Open safety contacts. Its die cast alloy housing ensures durability and resistance to impact damage in demanding industrial environments.
With a high clamping force of up to 13000 Newtons, the switch guarantees robust door holding force, meeting stringent safety requirements. The IP66 and IP67 ingress protection ratings ensure reliable operation even in dusty or temporarily submerged conditions, suitable for industrial settings that may involve harsh environmental factors.
The switch operates efficiently with a low supply current of approximately 100mA and is certified to IEC 61508 standards for electronic safety, alongside approvals including CE, cULus, EAC, and TUV, ensuring international compliance and reliability.
Its wide operating temperature range from -20°C to +55°C supports use in various demanding industrial applications such as manufacturing plants, cutting machinery, and blow-moulders, providing consistent safety performance.
Equipped with RFID technology for tamper-proof operation. High clamping force of 13000N ensures reliable door locking. Robust die cast housing for enhanced durability. Wide temperature range suitability from -20°C to +55°C.
Ingress protection ratings IP66 and IP67 for dust and water resistance. Conforms to IEC 61508 electronic safety standards. Low power consumption with a 100mA supply current. Two Normally Open (NO) safety contacts. Connector type terminals facilitate installation.
Certified with CE, cULus, EAC, and TUV approvals.
It is ideal for industrial, manufacturing, electrical safety, and automation system applications. Browse more Solenoid Interlock Switches and safety switches on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The supply voltage for this model is 24V DC.
This unit has a length of 166.7mm, a width of 77.8mm, and a depth of 65.3mm.
The contact current rating is 0.25A.
It features two Normally Open (NO) safety contacts.
This model has IP66 and IP67 ingress protection ratings, ensuring it is protected against dust and water immersion.
The operating temperature range is from -20°C to +55°C.
The housing is made from die cast alloy, providing robust impact resistance.
It complies with IEC 61508 standards and has certifications including CE, cULus, EAC, and TUV.
The clamping force is up to 13000 Newtons, ensuring reliable door locking.
The RFID technology provides tamper-proof operation, enhancing the security of the equipment it protects.
It uses connector type terminals, which facilitate installation.
This model is suitable for industrial applications, including manufacturing plants and cutting machinery.
