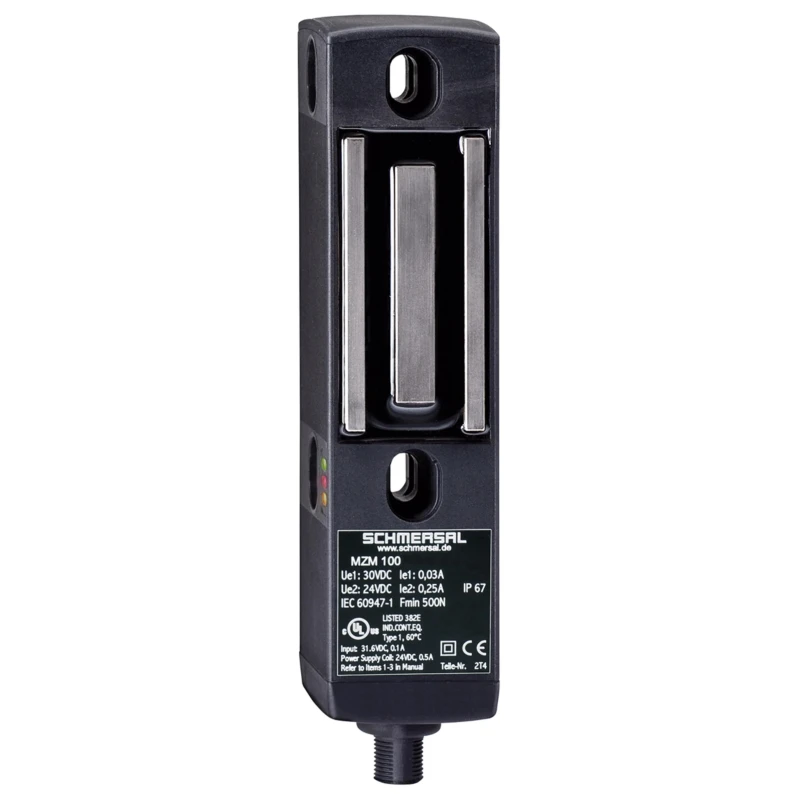

Schmersal MZM 100 Series Solenoid Interlock Switch Power to Lock 24V DC 1A IP65 IP67 MZM 100 ST2-SD2PRE-A

Schmersal MZM 100 ST2-SD2PRE-A Solenoid Interlock Switch is a power-to-lock safety switch operating at 24V DC with a contact current rating of 1A, designed to secure guard doors on hazardous machinery.

The switch features a coded actuator that ensures tamper resistance and reliable operation. With a high holding force of 750N, it provides robust locking to prevent unintended access during machinery operation. Its compact design with 40mm length, 40mm depth, and 179mm width enables installation in confined spaces.

The housing is made of glass fibre-reinforced thermoplastic, offering excellent resistance to heat and mechanical impact, suitable for use in tough industrial environments. Rated to IP65 and IP67, this switch is dust tight and protected against water ingress.

The MZM 100 series switch supports vertical misalignments up to 5mm and horizontal misalignments up to 3mm, facilitating easier installation without compromising safety. Additionally, it operates reliably in temperatures ranging from -25°C to +55°C.

Diagnostic features include integrated LED indicators on the front plate, which display operational status and alert operators to errors, enhancing maintenance and safety monitoring.

It meets multiple international safety standards including BG, EN 60947-5-1, cULus Listed, EN ISO 13849-1, CE Listed, IEC 61508, and IEC 60947-5-3, ensuring compliance with stringent safety regulations.

Typical industrial applications include packing plants, assembly lines, material handling systems, and the printing industry. The absence of moving parts in the solenoid interlock mechanism reduces mechanical wear, while the patented pulse-echo sensor principle enables reliable position monitoring of safety guards.

Set contains the Schmersal MZM 100 ST2-SD2PRE-A Solenoid Interlock Switch without actuator included. Explore the range of Schmersal safety switches and interlock components for enhanced industrial safety solutions on EnvMart.

Equipped with a coded actuator for enhanced security and reliability. High holding force of 750N ensures guard doors remain securely closed. Compact dimensions of 40mm length, 40mm depth, and 179mm width fit tight installation spaces.

IP65 and IP67 rated housing provides excellent protection against dust and water ingress. Built-in LED indicators offer diagnostic information for operational status and error alerts. Supports vertical misalignments up to 5mm and horizontal misalignments up to 3mm for easy installation.

Complies with BG, EN 60947-5-1, cULus, EN ISO 13849-1, CE, IEC 61508, and IEC 60947-5-3 standards. Suitable for harsh environments with temperature range from -25°C to +55°C. Applications include packing plants, assembly lines, material handling, and the printing industry.

Constructed with a glass fibre-reinforced thermoplastic housing resistant to heat and impact.
