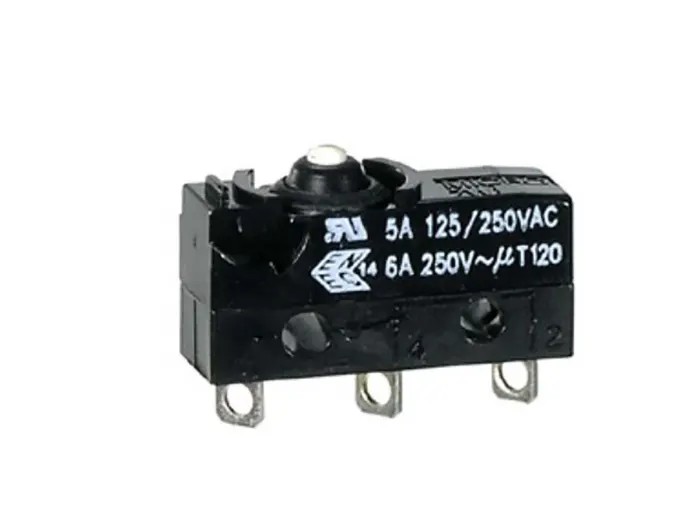

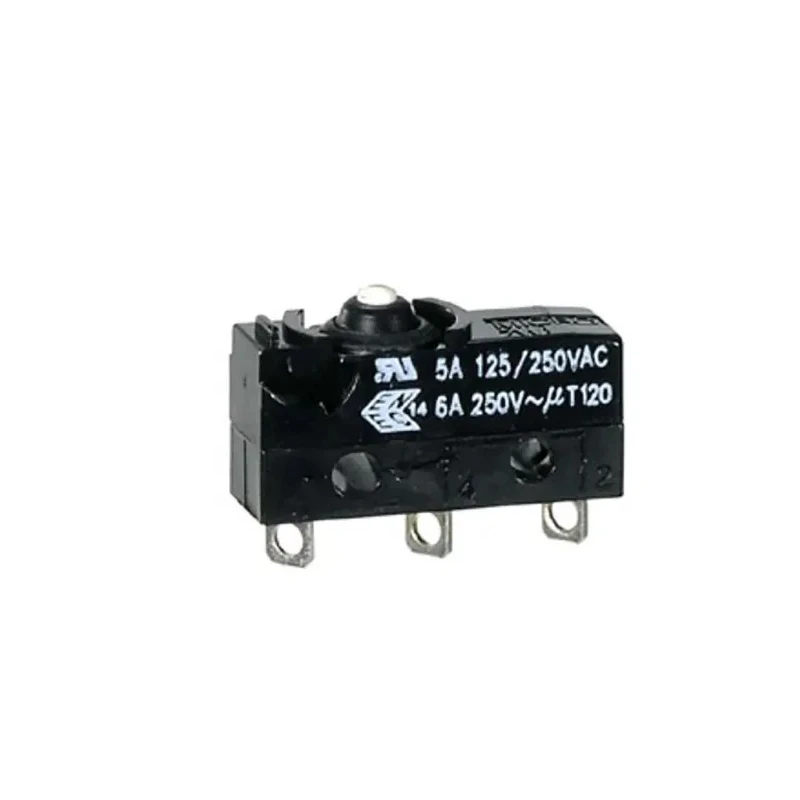

Honeywell Pin Plunger Micro Switch, Solder Terminal, 100mA, 250V AC, SPNO, IP00 ZW10E15AD3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW10E15AD3 |
| Depth | 9.25mm |
| IP Rating | IP00 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | ZW |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPNO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Hazardous Area Certification | ENEC, cUL, CQC, UL |
| Standards/Approvals | CQC, ENEC, cUL, UL |
| Switch Contact Current | 100mA |
| Operating Force | 150g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Compact micro switch designed for precise control and sensing functions.
- Pin plunger actuator provides accurate actuation in industrial settings.
- Solder terminals allow secure PCB mounting and easy connectivity.
- Rated for 100mA switch contact current and 250V AC voltage.
- Single Pole Normally Open (SPNO) contact configuration simplifies circuit design.
- Durable housing made from polybutylene terephthalate for thermal stability.
- Mechanical life rated to 1,000,000 operations for reliable performance.
- Operates within a wide temperature range from -40°C to 120°C.
Product Description
The Honeywell ZW10E15AD3 Pin Plunger Micro Switch is a compact electromechanical device engineered to deliver reliable single-pole switching for control and position sensing applications across industrial, automation, and electronic equipment. It features a robust pin plunger actuator that offers precise actuation and durability, making it suitable for critical limit switching and safety interlock functions.
Designed with solder terminals, the micro switch enables secure and efficient PCB mounting, facilitating straightforward electrical connectivity even in confined spaces. With a switch contact current rating of 100mA and a contact voltage capacity of 250V AC, this switch supports moderate voltage control circuits and low-power signal switching tasks commonly required in factory automation and machinery control panels.
The device employs a Single Pole Normally Open (SPNO) contact configuration, offering simple on/off switching for direct circuit interruption and user-input detection. Its housing is made of polybutylene terephthalate, chosen for its dimensional stability and resistance to high temperatures, ensuring reliability in demanding environments.
The ZW10E15AD3 micro switch is built for longevity, rated for 1,000,000 mechanical operations, and features an operating force requirement of 150g, ensuring consistent performance throughout its service life. It operates effectively within a wide temperature range, from -40°C up to 120°C, supporting industrial use cases subjected to extreme conditions.
Though rated IP00, meaning no defined ingress protection, the switch is intended to be installed within enclosures or where environmental protection is assured. Multiple international safety certifications, including UL, ENEC, cUL, and CQC, affirm regulatory compliance for use in global industrial installations.
Common applications include automation equipment limit switches, mechanical position sensing, control panel user-input detection, and low-current electronic signal switching. Its subminiature form factor allows integration into compact modules and devices requiring reliable switching solutions.
Explore other Honeywell micro switches for industrial and automation requirements in the Micro Switch category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 120°C.
It features a Single Pole Normally Open (SPNO) contact configuration.
This micro switch is rated for a contact current of 100mA and a contact voltage of 250V AC.
It uses a pin plunger actuator for precise actuation.
The dimensions are 19.8mm in length, 6.4mm in width, and 9.25mm in depth.
It has a mechanical life rating of 1,000,000 operations.
The housing is made from polybutylene terephthalate, which provides thermal stability.
The minimum operating temperature is -40°C.
It is equipped with solder terminals for secure PCB mounting.
It holds multiple certifications including UL, ENEC, cUL, and CQC.
The operating force required for actuation is 150g.
Common applications include automation equipment limit switches, mechanical position sensing, and control panel user-input detection.
