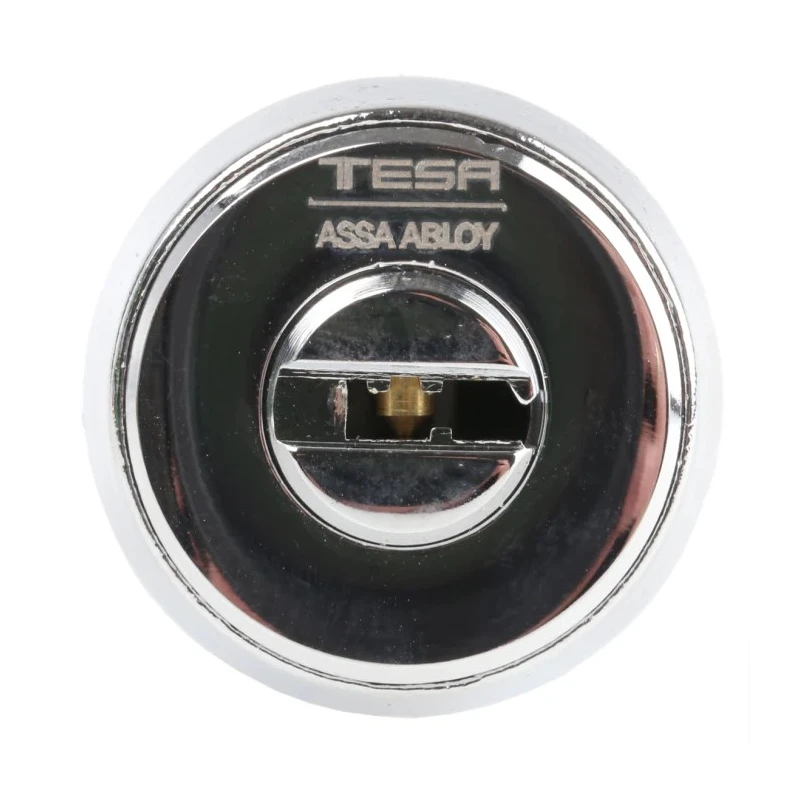

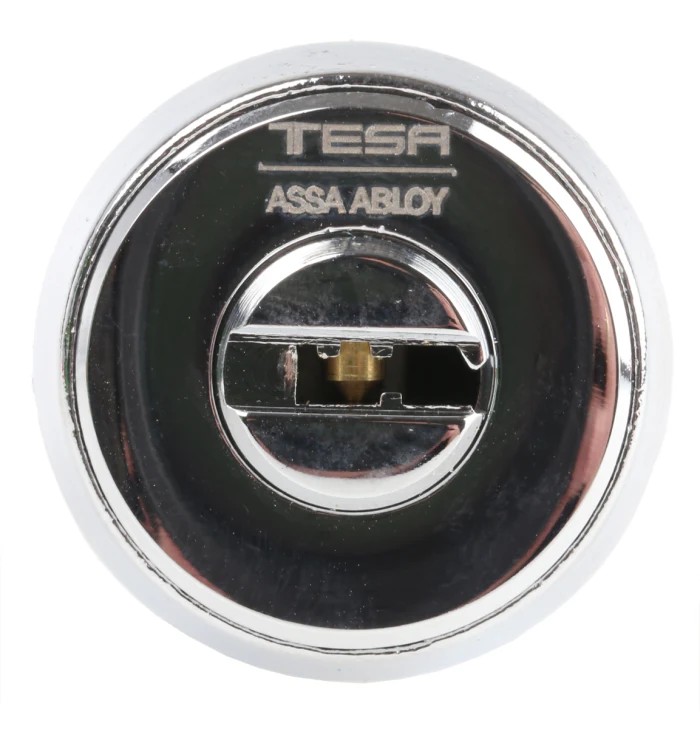

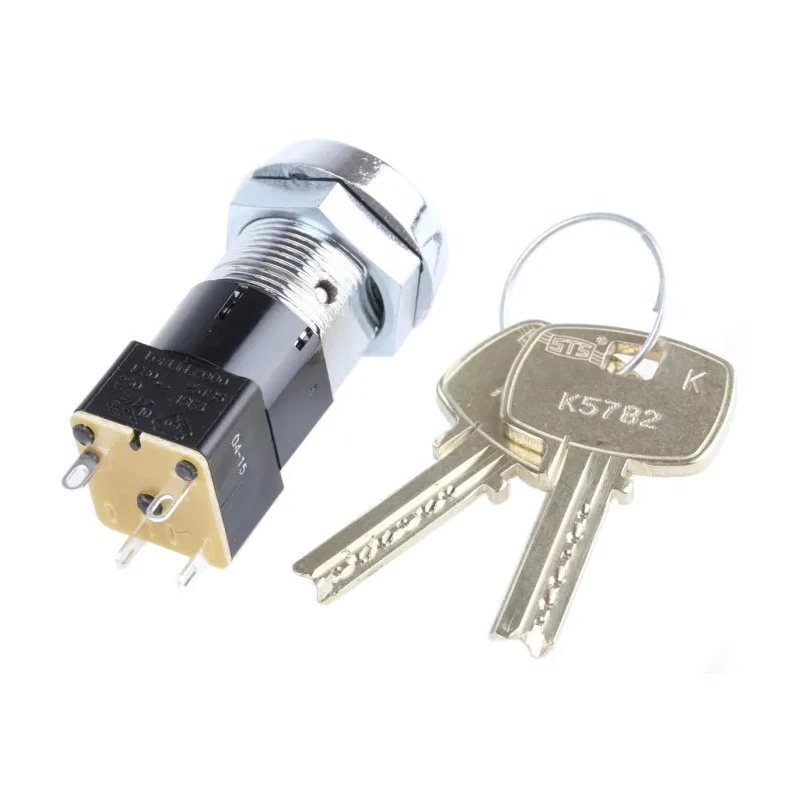

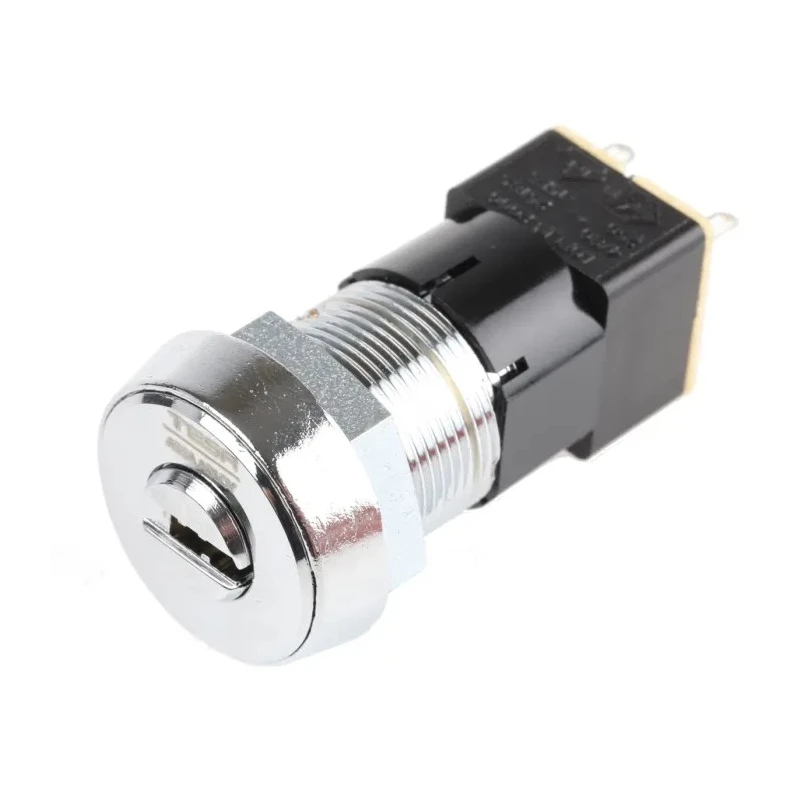

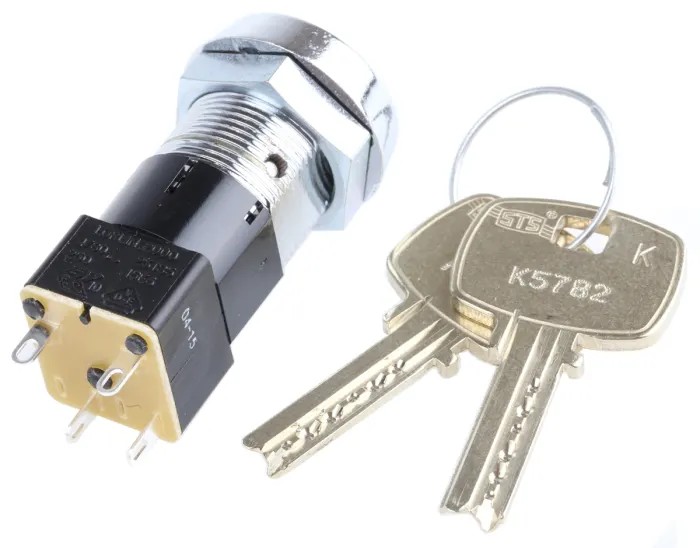

Lorlin Mains Key Switch DPST 50mA 2-Way Off-On Flat Key Round Bezel Steel Housing DSL-6-B-D

Free Delivery in India | Lowest Global Shipping Charges

Lorlin Mains Key Switch DPST 50mA 2-Way Off-On Flat Key Round Bezel Steel Housing DSL-6-B-D

Name: Lorlin Mains Key Switch DPST 50mA 2-Way Off-On Flat Key Round Bezel Steel Housing DSL-6-B-D
Brand: Lorlin
SKU: 169573
Price: 66.71 USD
Availability: InStock



Category Key Switches Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	DSL-6-B-D
Housing Material	Steel
Contact Material	Silver Plated Brass
Series	DSL
Maximum Operating Temperature	85°C
Contact Configuration	DPST
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Off-On
Contact DC Voltage	30V dc
Switch Contact Current	50mA
Mechanical Life	15000Cycles
Contact AC Voltage	115V ac
Key Type	Flat
Bezel Shape	Round
Key Index Angle	90°
Lorlin High Security Key Switch, DPST, 50mA 2-Way Flat-KeyBrand	Lorlin

Key Features

Features a dimpled 6 pin lock with two keys per lock for security.

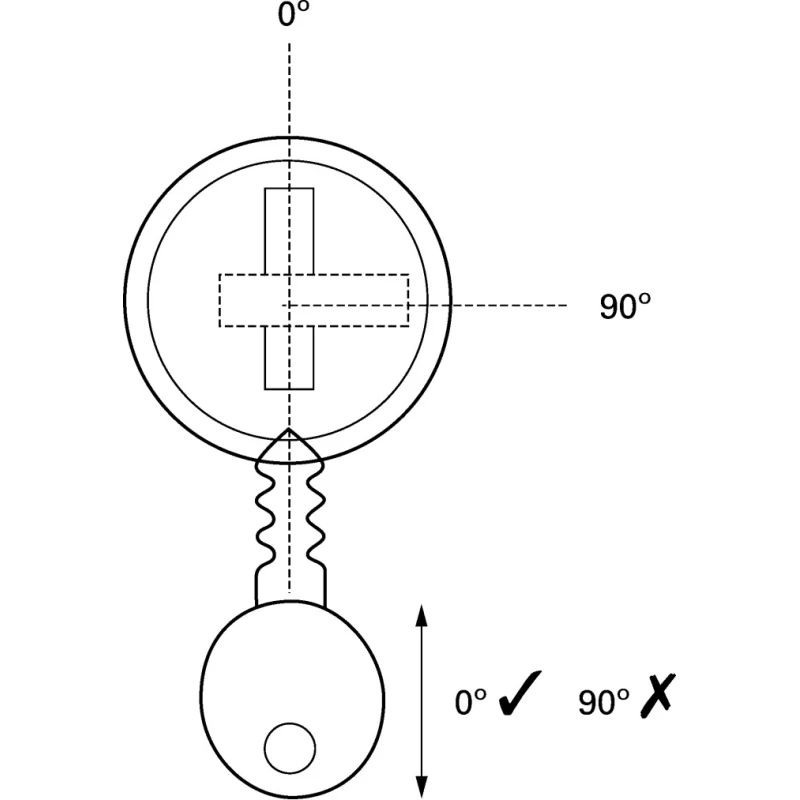

Switch operation is Off-On with a 90° key index angle providing precise control.
Constructed with a robust steel housing and round bezel for durability.
Silver plated brass contacts rated for 30V dc and 115V ac ensure reliable conductivity.
Designed for mechanical life of 15,000 cycles for long-term usage.
Solder type terminals offer secure connection in electrical circuits.
Operates reliably between -25°C to 85°C ambient temperatures.
Front panel insertion design with snap-on rear module facilitates easy installation.

Product Description

Lorlin DSL-6-B-D Mains Key Switch is a high security, dual pole single throw (DPST) device designed for precise mains switching controls in industrial and commercial electrical applications. It operates with a 2-position flat key mechanism, providing an Off-On switch function with 90° key rotation.

The switch features a steel housing and a durable round bezel, ensuring robustness against mechanical and environmental stresses. Its silver plated brass contacts support contact currents of 50mA with DC voltage ratings up to 30V and AC voltage ratings up to 115V, suitable for low power control circuits.

Designed to withstand extreme temperatures from -25°C to 85°C, this key switch guarantees longevity with a mechanical life rated at 15,000 cycles. The switch uses solder terminals for secure and permanent electrical connections and includes a dimpled 6 pin lock with two keys per lock, providing both common or random key profile options.

The two-part construction allows for front panel insertion with snap-on assembly from the rear, simplifying installation and maintenance. Features a dimpled 6 pin lock with two keys per lock for security. Switch operation is Off-On with a 90° key index angle providing precise control.

Constructed with steel housing and round bezel for durability. Silver plated brass contacts rated for 30V dc and 115V ac ensure reliable conductivity. Mechanical life of 15,000 cycles suits demanding industrial environments.

Solder terminals provide secure electrical connections. Operates reliably in temperature range from -25°C to 85°C. Front panel insertion with rear snap-on module simplifies installation. This key switch is ideal for industrial automation, electrical control panels, manufacturing machinery, and HVAC systems requiring secure and reliable switching control.

Country of origin: United Kingdom. Explore more Key Switches and electrical controls in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
