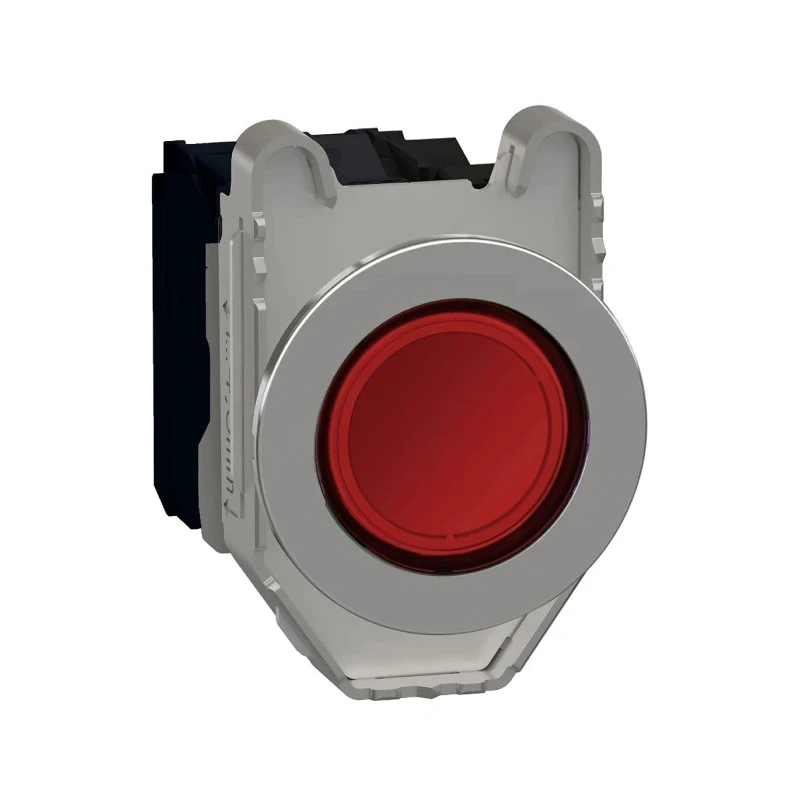

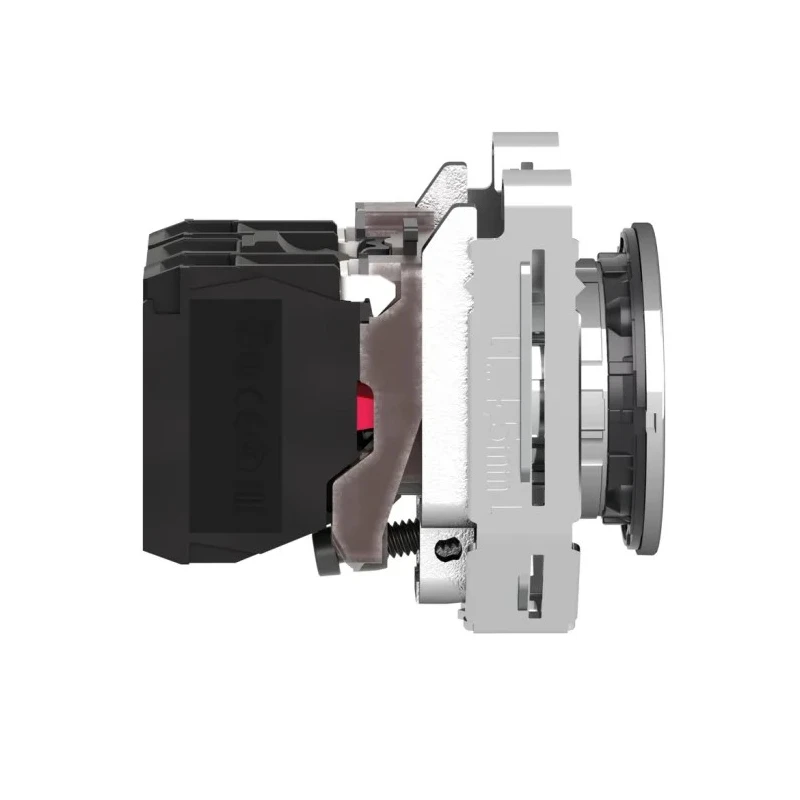

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout XB4FW34M5

Schneider Electric XB4FW34M5 is an illuminated push button switch from the Harmony XB4 metallic range. Designed for panel mounting, it features a flush-mounted construction with a chromium-plated bezel and a robust zamak fixing collar. The switch is engineered for ergonomic excellence and visual appeal, making it suitable for various control panels and industrial equipment.

This push button incorporates a spring return operator mechanism, ensuring reliable actuation and automatic return to the default state after actuation. The head is round with a red LED indicator, providing clear status visibility even in demanding working environments. The universal LED source ensures consistent illumination and energy efficiency.

With a 30 mm panel cutout requirement, the XB4FW34M5 offers flexible installation and is compatible with standard panel sizes. The SPDT contact configuration of 1 NO and 1 NC slow break allows versatile electrical control, and the screw clamp terminal supports secure and shake-proof wiring, addressing vibration concerns typical in industrial applications.

This push button switch operates reliably within a wide temperature range of -40°C to 70°C and supports a maximum contact AC voltage of 240V. It is equipped with high vibration resistance, making it ideal for installation in harsh environments such as food and beverage processing, automotive plants, mining, water treatment, and infrastructure panels. Accessories like mounting rings, spacers, and washers are available separately for further customization.

The XB4FW34M5 meets multiple international standards, including EN/IEC 60947-5-1, UL 508, JIS C8201-5-1, CE, CSA, and marine certifications. It can be installed quickly with a cross head screwdriver, and the heads and contacts are designed to minimize vibration and ensure secure mounting and wiring. Various types of electrical connections are available, including screw clamp, connector, Faston connector, spring terminal, and PCB.

Its applications extend across packaging equipment, material handling systems, water treatment plants, automotive manufacturing, energy distribution panels, and public infrastructure like airports and commercial buildings. The device is supplied as a single unit and weighs 132 grams.

Flush mounted design provides enhanced durability and easy integration into panels. Reliable spring return operator mechanism guarantees consistent actuation. Red LED indicator ensures clear visual feedback of switch status.

Wide operating temperature (-40°C to 70°C) for challenging environments. Multiple certifications guarantee safety, performance, and suitability for global industry standards. Discover more industrial control switches in EnvMart’s Electronics & Electricals category and explore the robust Harmony XB4 range from Schneider Electric.
