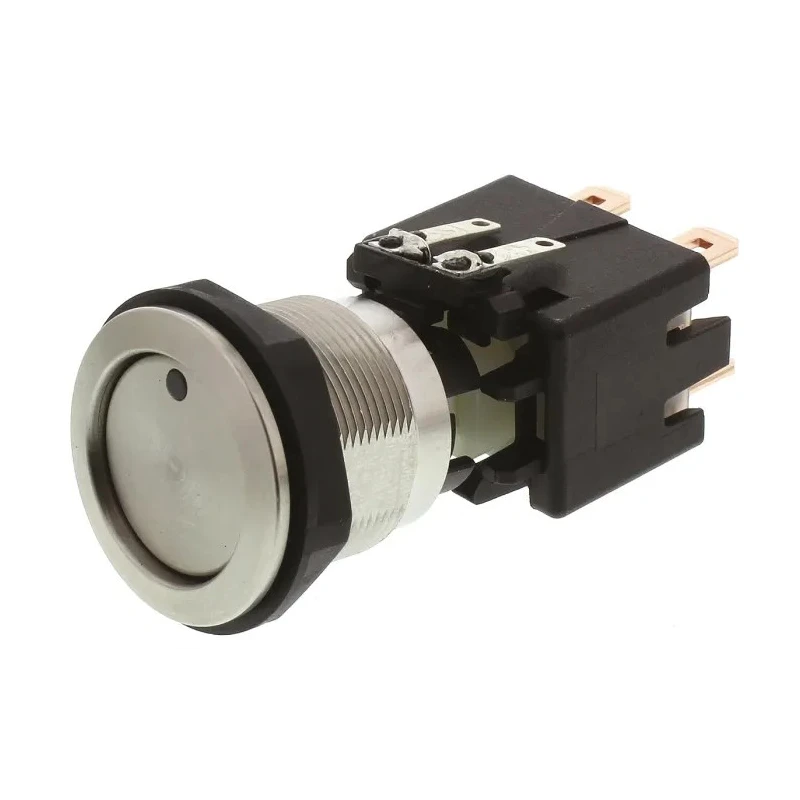

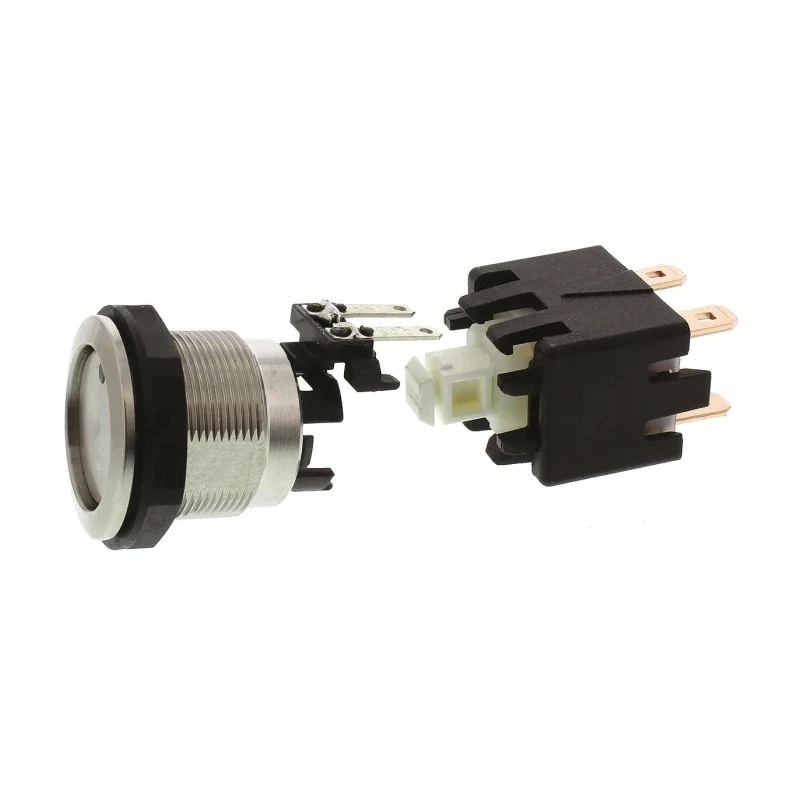

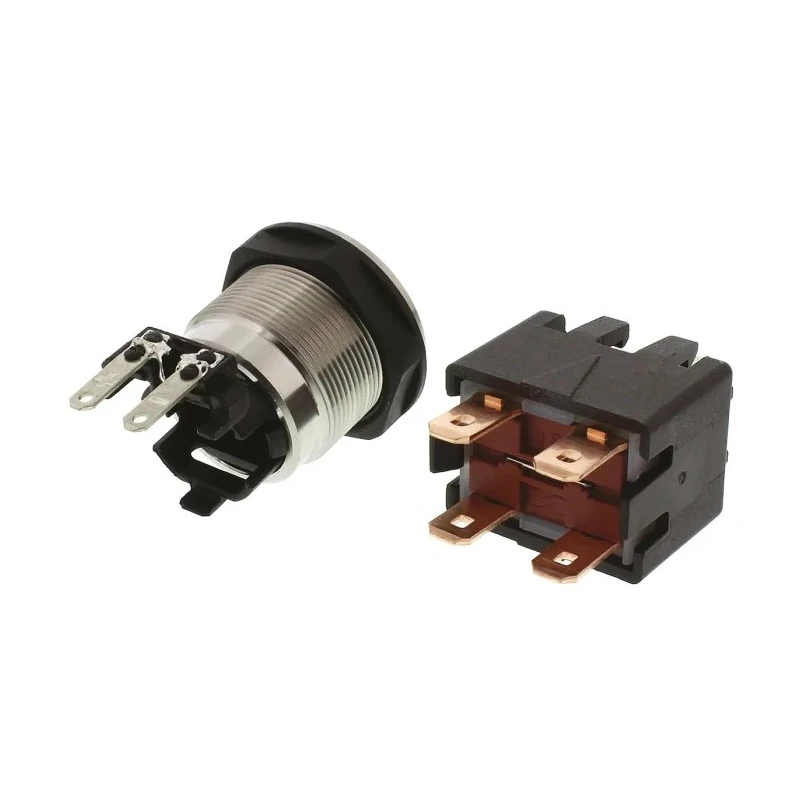

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, Blue LED, IP00 IP64 1241.6823.1124000

Schurter 1241.6823.1124000 MSM LA 19 Series Illuminated Push Button Switch is designed for industrial and automation applications requiring reliable panel-mounted switching. This latching push button switch features a 19 mm panel cutout and DPDT contact configuration, ideal for controlling circuits with double pole double throw arrangements.

The switch body is constructed with a robust stainless steel housing, sealed to IP64 standards ensuring protection against dust and splashing water, making it suitable for harsh environments. Additionally, it meets IK07 shock resistance rating, providing resilience against mechanical impacts.

The actuator is a natural colored button with an operating force of 10N and a travel distance of 4.5 mm. It protrudes 3.7 mm above the mounting panel in its off state, offering tactile feedback. The switch supports a high contact current of 12A at 30V DC, accommodating a broad range of electrical loads.

Illumination is provided by a blue LED with a wide 180° viewing angle for clear indication of the switching status. The illuminated versions require series resistors depending on point or ring illumination configurations to ensure proper LED operation.

Terminals use quick connect tab styles, facilitating fast and reliable wiring. This switch upholds quality standards including IEC, RoHS, UL, and CSA certifications, aligning with global safety and compliance requisites for electrical devices.

It is engineered to operate within a temperature span of -25°C to 85°C, which suits various industrial environments and climatic conditions. Durable stainless steel housing rated IP64 and IK07 shock resistance for industrial robustness.

Double pole double throw (DPDT) latching switch configuration for versatile circuit control. 19 mm panel cutout fits standard mounting openings for easy installation. Blue LED illumination with 180° visibility for clear operational status indication.

Mechanical lifespan up to 150,000 operations provides long-term reliability. Quick connect tab terminals simplify installation and maintenance efforts. Complies with international standards IEC, RoHS, UL, and CSA regarding safety and environmental aspects.

Operating temperature range from -25°C to 85°C ensures performance in diverse conditions. Latching operation (push-on, push-off) for stable switch states. Rated for 12A contact current and 30V DC contact voltage suitable for many electrical applications.

This Push Button Switch is commonly used in industrial machinery, automation controls, electrical panels, and equipment requiring visible and reliable control inputs. Its robust design and certified compliance make it ideal for demanding operational environments including manufacturing plants, control rooms, and automation setups.
