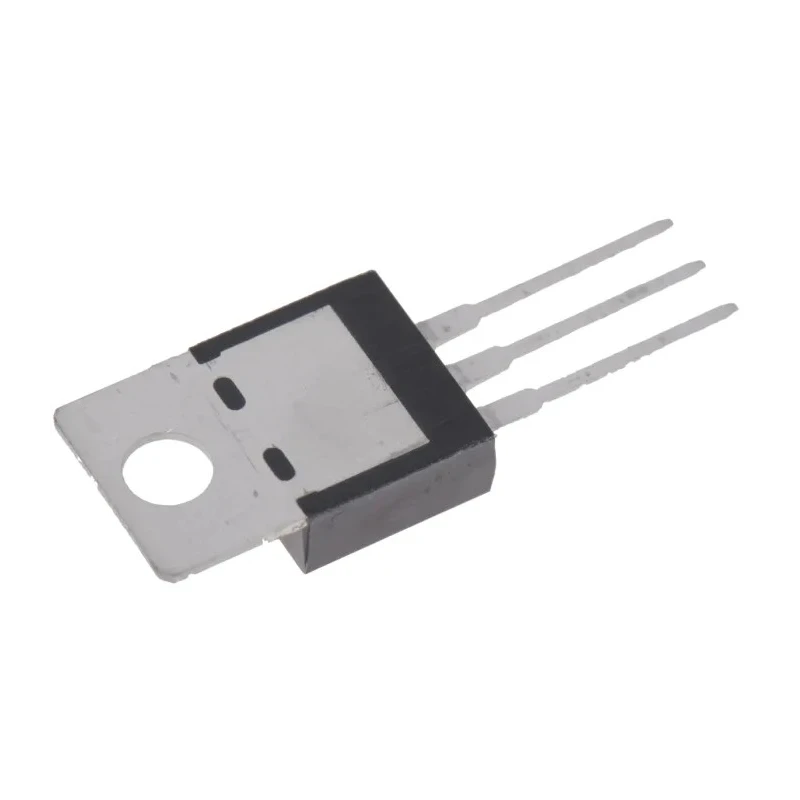

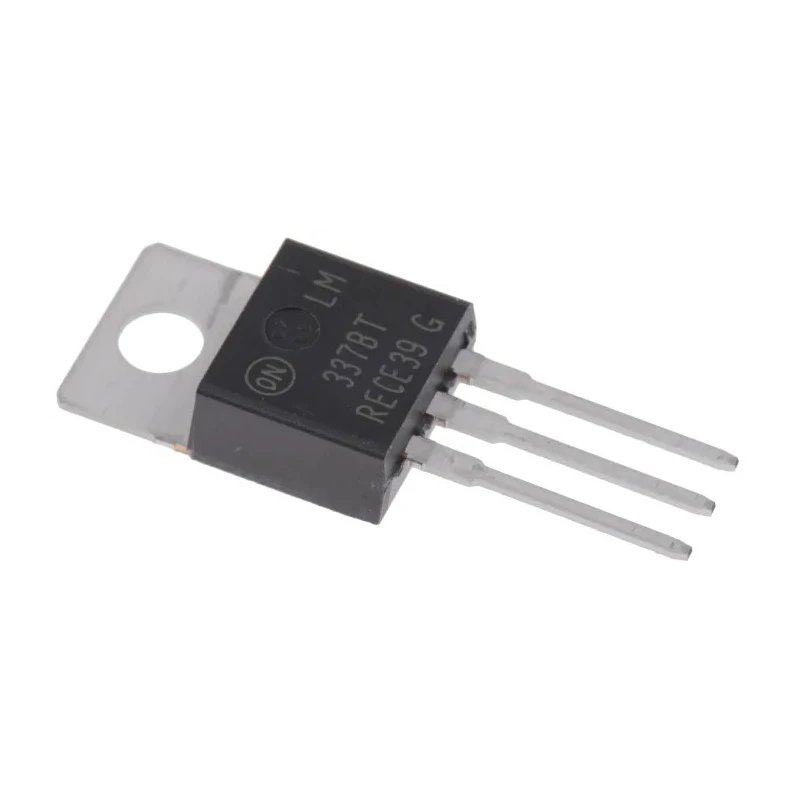

onsemi Adjustable Low Dropout Linear Voltage Regulator TO-220 3-Pin -40V LM337BTG

onsemi LM337BTG is an adjustable low dropout (LDO) linear voltage regulator designed for negative polarity voltage regulation. It features a robust TO-220 package with three pins and through-hole mounting, making it compatible with various PCB assembly methods. The device supports input voltages ranging from -40V to -15V, delivering stable output voltage with low dropout voltage characteristics.

This LM337 series voltage regulator is capable of operating at a maximum temperature of 125°C, making it suitable for demanding industrial and commercial electronic applications where thermal endurance is critical. Its compact size with precise dimensions (10.28mm length, 9.28mm height, and 4.82mm width) allows for efficient space utilization in power management circuits.

The device is specifically designed for negative voltage applications, making it ideal for power supplies requiring negative voltage rail regulation in instrumentation, industrial control, and communication equipment. The regulator provides low quiescent current, low noise, and high power supply rejection ratio (PSRR), ensuring stable system performance.

Low dropout linear regulator for efficient voltage regulation. TO-220 three-pin package designed for through-hole mounting. Operates with input voltages from -40V to -15V. Maximum operating temperature is 125°C for reliable performance.

Negative polarity voltage regulation suitable for diverse electronics applications. Compact dimensions: 10.28mm length, 9.28mm height, and 4.82mm width. Series LM337 ensures compatibility with other power management components.

Designed without automotive standard compliance, for general electronics use.

This Voltage Regulator is widely used in applications such as industrial equipment, laboratory instruments, communication devices, and consumer electronics where precision negative voltage regulation is necessary. Its robust design and proven semiconductor technology from onsemi assure long-term reliability and consistency.
