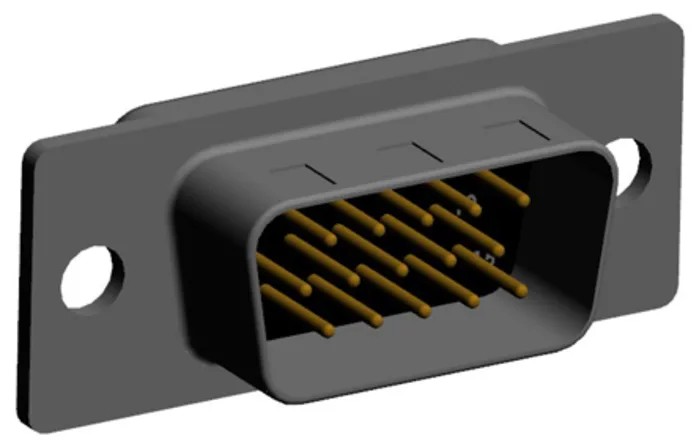

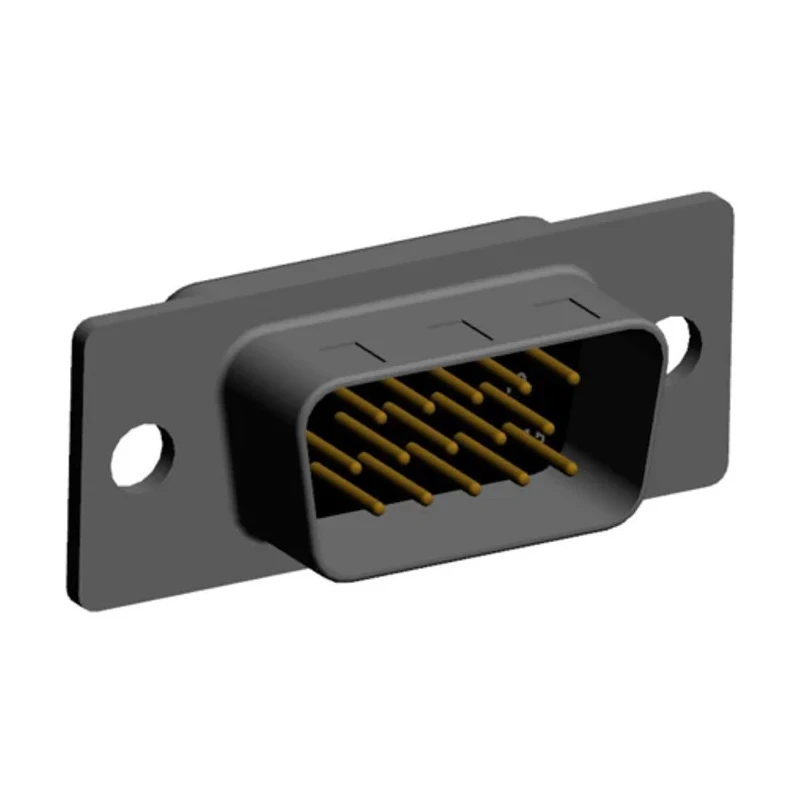

Norcomp 15 Way Straight 2.286 mm Pitch Plug-in D-Sub Connector Male 780-M15-113R001

Norcomp 780-M15-113R001 is a 15 way straight plug-in D-Sub connector male with a pitch of 2.286 mm and a current rating of 5A. This component is designed for industrial and outdoor applications requiring reliable electrical connections and IP67 sealing compliance.

The connector features a steel housing with nickel plating for enhanced shielding and grounding. Contacts are brass with gold plating to ensure consistent conductivity and resistance to corrosion. It supports operating voltages up to 1kV and functions within a temperature range of -55°C to 105°C, making it suitable for harsh environmental conditions.

This plug-in D-Sub connector utilizes solder termination and is male in both connector and contact gender. Its design maintains the standard D-Sub footprint, simplifying integration and replacement in existing systems. The IP67 sealing technology ensures protection against dust ingress and water immersion, meeting IEC-529 standards.

Applications include handheld computing devices, scanners, remote sensors, data logging equipment, industrial and medical instrumentation, gas and electric meter systems, portable electric power generation equipment, and consumer/commercial marine electronics.

This connector complies with industry needs for durability and reliable shielding through a nickel-plated steel shell and screw machined contacts. Its sealing technology supports outdoor use and wash-down environments without requiring redesign of enclosures or PCBs.

The connector supports secure mounting and retention via features like board locks and locator plates available in related series. It is part of NorComp's SEAL-D 780 series of IP67 sealed D-Sub connectors available in multiple configurations.

Panel sealing kits for enhanced sealing performance are offered separately to complement this connector.
