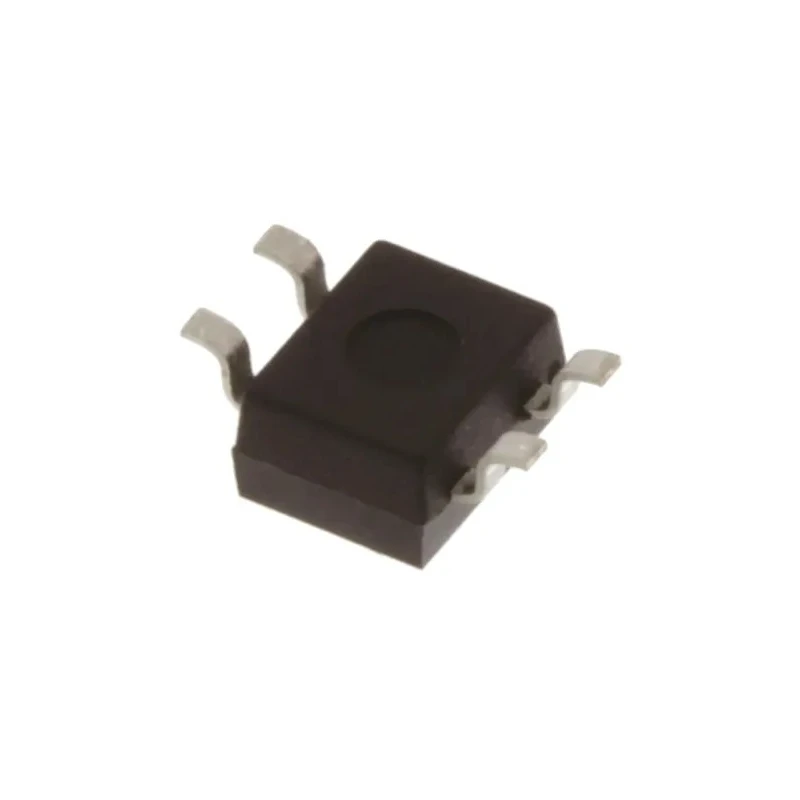

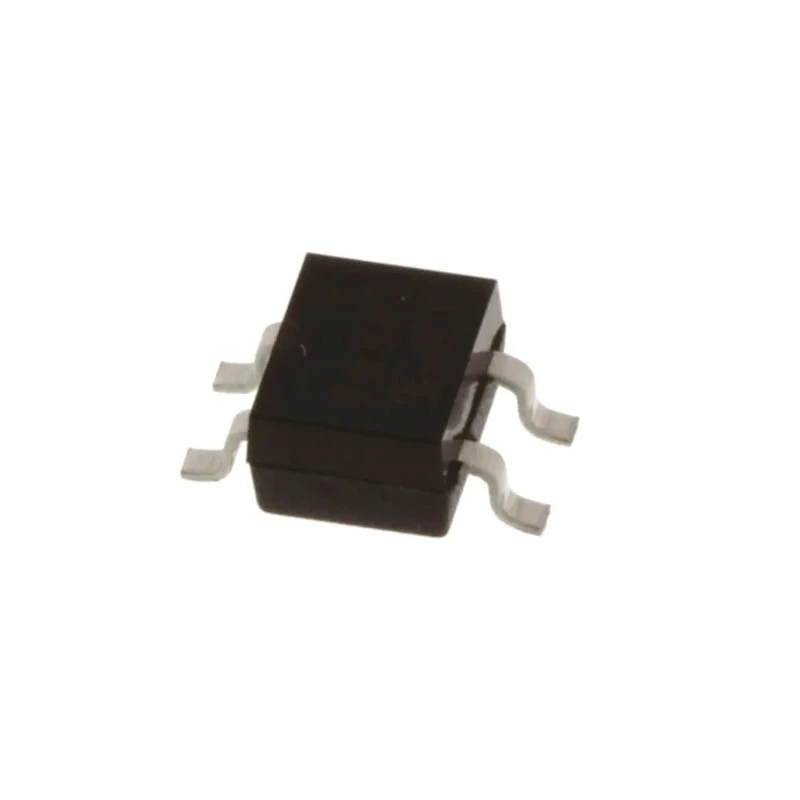

Taiwan Semiconductor Bridge Rectifier, 600 V, 30 A, 4-Pin Single Surface Mount MBS Package RMB6S

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier, 600 V, 30 A, 4-Pin Single Surface Mount MBS Package RMB6S

Name: Taiwan Semiconductor Bridge Rectifier, 600 V, 30 A, 4-Pin Single Surface Mount MBS Package RMB6S
Brand: Taiwan Semiconductor
SKU: 211954
Price: 0.3 USD
Availability: InStock



Category Bridge Rectifiers Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.7mm
Length	4.9mm
Model	RMB6S
Width	4mm
Mount Type	Surface
Series	RMB
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	MBS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q101
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	800mA
Peak Forward Voltage Vf	1V

Key Features

This rectifier features a compact 4-pin single configuration surface mount MBS package.
It supports a maximum forward current of 800 mA and maximum operating temperature up to 150°C.
The device offers low peak forward voltage of 1 V and very low peak reverse current of 5 μA for efficient operation.
The miniature glass passivated chip junction ensures fast reverse recovery and reliability in electronic circuits.
Compatible with PCB reflow soldering processes for easy assembly.
This bridge rectifier complies with automotive standard AEC-Q101, making it suitable for automotive electronics.
Operating temperature range is from -55°C to 150°C allowing use in harsh environments.
Ideal for converting AC input signals into DC output in power supply and electronic component applications.

Product Description

Taiwan Semiconductor RMB6S Bridge Rectifier is a high-performance discrete semiconductor component designed for efficient conversion of alternating current (AC) to direct current (DC) with reliable surface mount technology. It features a 4-pin single bridge rectifier configuration in an MBS package size 4.9 mm length by 4 mm width and 2.7 mm height, suitable for compact printed circuit board (PCB) footprints.

This bridge rectifier supports a peak reverse repetitive voltage (VRRM) of 600 V, peak forward surge current (IFSM) of 30 A, and a continuous forward current (IF) of 800 mA, enabling robust performance in power regulation and rectification circuits. Its peak forward voltage drop is only 1 V, minimizing loss for energy-efficient circuit operation. The device exhibits very low peak reverse current of 5 μA, which enhances circuit stability and minimizes leakage.

The RMB6S incorporates a miniature glass passivated chip junction to ensure fast reverse recovery times, improving efficiency in switching power supplies and inverters. The extended operating temperature range from -55°C to 150°C and compliance with automotive standard AEC-Q101 highlight its suitability for demanding automotive and industrial electronic environments.

This product is optimized for PCB surface mounting using standard reflow soldering, simplifying high-volume assembly. Typical applications include power supplies, rectification modules, motor drives, and various electronic circuits requiring reliable bridge rectification.

Compact 4-pin MBS package for PCB surface mounting. 600 V peak reverse voltage offers wide voltage tolerance. 30 A peak surge current supports transient electrical loads. Fast reverse recovery time improves switching efficiency.

Automotive grade quality certified to AEC-Q101. Wide temperature range from -55°C to 150°C. Low forward voltage drop reduces conduction losses. Miniature glass passivated chip junction for durability.

This Taiwan Semiconductor bridge rectifier is an ideal choice for industrial, automotive, manufacturing, and electronic development applications. Explore more semiconductor and bridge rectifier solutions in our Electronics & Electricals category at EnvMart.
