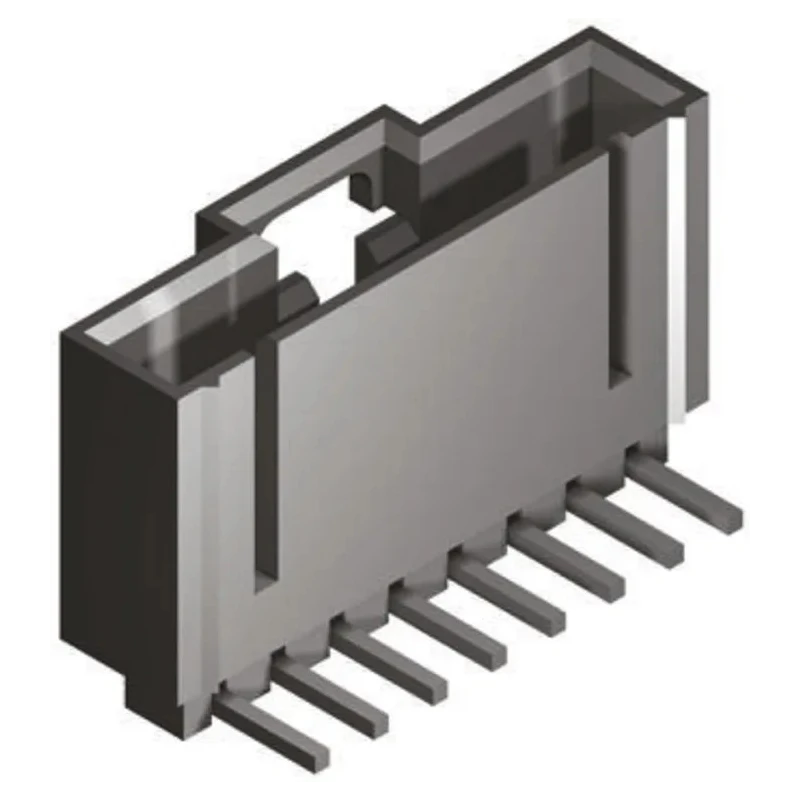

Molex SL Series Right Angle Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70553-0005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Designed with a right angle orientation for efficient PCB layout.
- Constructed with thermoplastic housing for durability and insulation.
- Phosphor bronze contacts with gold plating ensure reliable electrical performance.
- Rated for 3A current and 250V voltage for standard PCB applications.
- Suitable for solder termination and through-hole mounting on PCBs.
- Minimum and maximum operating temperatures range from -40°C to 105°C.
- Tail pin length of 3.3 mm and mating pin length of 6.1 mm for secure connections.
- Gold plating depth is 0.38 μm standard ensuring corrosion resistance.
Product Description
Molex 70553-0005 is a high-quality right angle through hole PCB header designed for electronic and industrial applications requiring reliable board-to-wire connections. This connector features 6 gold-plated phosphor bronze contacts arranged in one row with a 2.54 mm pitch, providing a compact and precise fit on PCBs.
The durable thermoplastic housing encloses the contacts with a shrouded design for enhanced protection and insulation, promoting long service life under demanding conditions. Rated to carry up to 3 amperes and sustain voltages of 250 volts, the header is compatible with various signal and power circuits.
Its mounting type is through hole with solder termination, ensuring mechanical stability and electrical continuity. The 90° orientation supports flexible PCB layouts where space saving is critical.
Operational temperature ranges from -40°C to 105°C, making this product suitable for harsh industrial and commercial environments including automation systems, instrumentation, and power electronics.
The header mates with Molex's 70066G and 70066N series housings, providing extensive adaptability for different connector system configurations. Right angle single row PCB header. 6 contacts with 2.54 mm pitch spacing. Gold plated phosphor bronze contacts.
Thermoplastic shrouded housing. Through hole solder mount termination. Rated for 3A, 250V electrical parameters. Operating temperature from -40°C to 105°C.
This Molex SL Series PCB header is widely used in electronic assembly, manufacturing equipment, industrial control systems, and other electrical connector applications. Professionals seeking reliable PCB interconnections will benefit from its precise construction and robust materials.
Explore more Molex connectors and similar reliable PCB hardware in the Electronics Connectors category at EnvMart for diverse industrial and laboratory solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 3A and a voltage of 250V, suitable for standard PCB applications.
The contacts on this model are arranged with a pitch of 2.54 mm, allowing for a compact fit on PCBs.
It uses through hole mounting with solder termination, ensuring mechanical stability and electrical continuity.
The housing is made of thermoplastic, while the contacts are constructed from phosphor bronze with gold plating for reliable electrical performance.
The operating temperature range is from -40°C to 105°C, making it suitable for harsh industrial environments.
This model features 6 contacts arranged in a single row.
The tail pin length is 3.3 mm, providing secure connections on the PCB.
The mating pin length is 6.1 mm, designed for compatibility with mating connectors.
This PCB header is shrouded, providing enhanced protection and insulation for the contacts.
It supports a wire-to-board connector system, making it versatile for various applications.
This model belongs to the Molex SL Series, designed for reliable board-to-wire connections.
It is suitable for electronic assembly, manufacturing equipment, industrial control systems, and other electrical connector applications.
