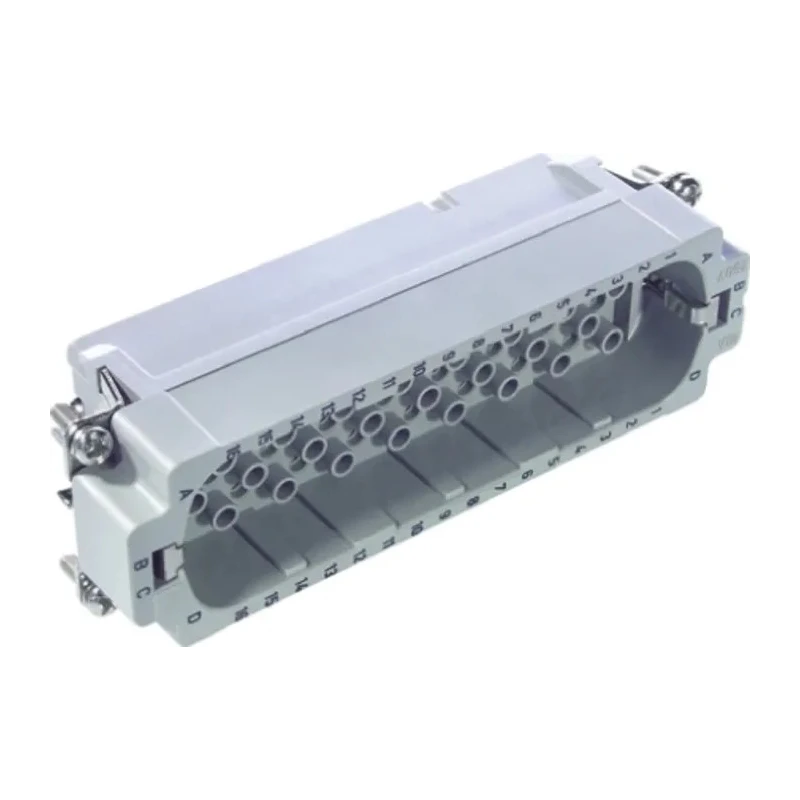

EPIC Heavy Duty Power Connector Insert 10A 250V Cable Mount IP65 26 Contacts H-D Series 11283300

Name: EPIC Heavy Duty Power Connector Insert 10A 250V Cable Mount IP65 26 Contacts H-D Series 11283300
Brand: EPIC
SKU: 191109
Price: 8.35 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand EPIC Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	EPIC
Orientation	Straight
Model	11283300
IP Rating	IP65
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	10A
Series	H-D
Sub Type	Connector Insert
Number of Rows	2
For Use With	Heavy Duty Power Connector
Pole Format	15+PE
Contact Plating	Gold, Silver
Number of Contacts	26
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	2.5mm²

Key Features

Rated for 250V voltage ensuring robust power transmission.
Features IP65 rating for protection against dust and water ingress.
Copper alloy contacts plated with gold and silver for superior conductivity.
Straight orientation with 15+PE pole format distributed over 2 rows.
Accepts wire sizes ranging from 0.14 mm² to 2.5 mm² for versatile applications.
Manufactured in Germany maintaining high quality standards.
Compatible with heavy duty power connectors for industrial use.
Includes machined contacts suitable for reliable and serviceable connection.

Product Description

EPIC 11283300 Heavy Duty Power Connector Insert is designed to deliver reliable power connections in industrial and commercial applications. Rated for 10A current and 250V voltage, this cable mount insert offers a robust and durable solution for power transmission needs.

Constructed with a metal body and high quality copper alloy contacts plated in gold and silver, it ensures excellent electrical conductivity and long-lasting performance. The connector features 26 contacts arranged in 2 rows with a 15+PE pole format and straight orientation. It supports wire sizes from 0.14 mm² to 2.5 mm², accommodating a range of cable thicknesses.

This product is engineered for heavy duty power connectors and complies with industrial standards VDE 0110//72, 0110b, 79, and VDE 0627//86. Although no certifications are explicitly stated, it carries approvals from SEV, UL, and CSA ensuring operational safety and compliance.

The connector insert offers IP65 protection rating, providing resistance against dust and water ingress, making it suitable for harsh industrial environments. Earth connection is reliably established through the metal body shells ensuring safety and grounding effectiveness.

Machined contacts are crimp terminated using a quality 8 point indent crimp tool for secure and maintainable connections. Note that connectors should not be coupled or decoupled under electrical load to prevent damage. Protection against incorrect mating is achieved through coding options if connectors are mounted side by side.

Rated for 10A current at 250V voltage. IP65 protection rating for dust and water resistance. Copper alloy contacts with gold and silver plating. Metal body construction with durable industrial design. 26 contacts in two rows with 15+PE pole format.

Supports wire sizes from 0.14 mm² to 2.5 mm². Machined, crimp terminated contacts for reliability. Separate earth connection through metal shell. Approved by SEV, UL, and CSA standards.

This EPIC Heavy Duty Power Connector Insert is suitable for demanding industrial, manufacturing, electrical power distribution, and machinery applications where secure and efficient power connections are critical. Explore more in our Electronics & Electricals catalog under Power Connectors and Heavy Duty Connector Inserts for compatible accessories and plugs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a current of 10A and a voltage of 250V, ensuring robust power transmission.

It has an IP65 rating, providing protection against dust and water ingress, making it suitable for harsh environments.

The contacts are made from a copper alloy and are plated with gold and silver for superior conductivity.

This connector insert features 26 contacts arranged in 2 rows with a 15+PE pole format.

It supports wire sizes ranging from 0.14 mm² to 2.5 mm², allowing for versatile applications.

This unit is designed for cable mounting, providing flexibility in installation.

It is manufactured in Germany, adhering to high quality standards.

The contacts are machined and crimp terminated using a quality 8 point indent crimp tool for secure and maintainable connections.

It is suitable for demanding industrial, manufacturing, electrical power distribution, and machinery applications where secure power connections are critical.

Yes, protection against incorrect mating is achieved through coding options if connectors are mounted side by side.

It complies with industrial standards VDE 0110//72, 0110b, 79, and VDE 0627//86, and carries approvals from SEV, UL, and CSA.

The contacts are arranged in a straight orientation, facilitating easy installation and connection.
